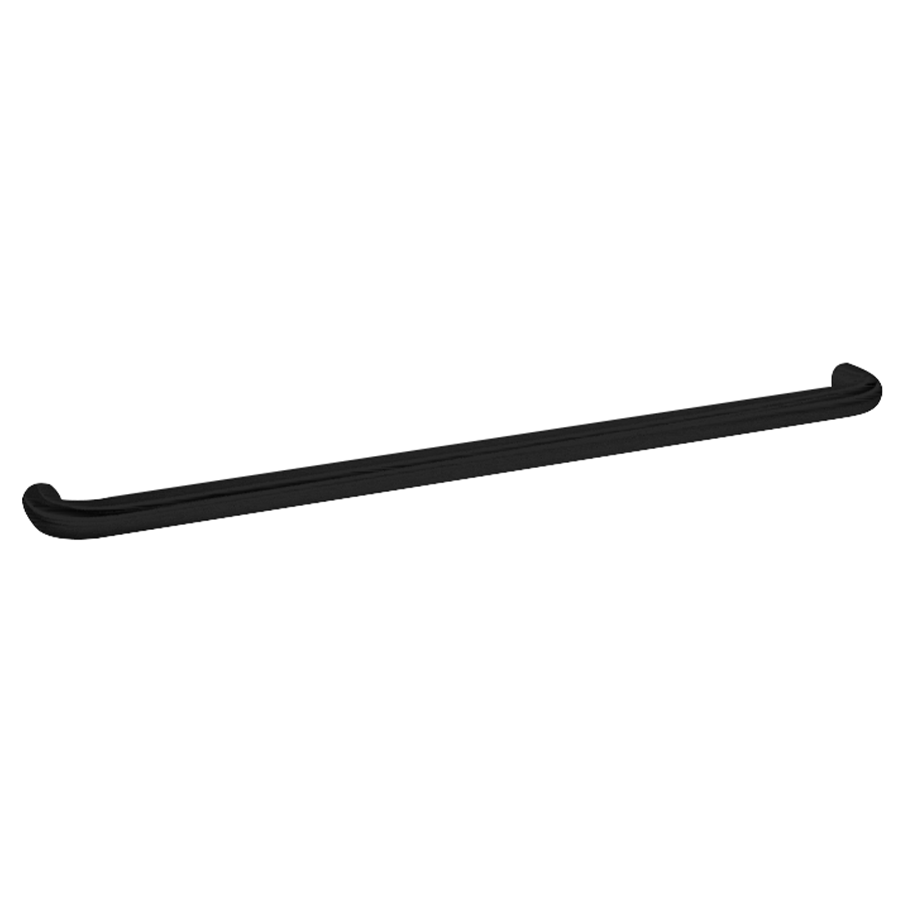

Rockwood 47-PB 315 33IN 33in Tubular Push Bar, 1in Dia, 1-3/4in Door, Black Anodized, Thru Bolt

Rockwood Manufacturing Co 47-PB 315 33IN Tubular Push Bar is designed for durability and functionality, making it an excellent choice for both wood and metal doors. With a center-to-center measurement of 33 inches and a robust 1-inch diameter, this push bar is engineered to withstand daily use in high-traffic areas. The 1-3/4 inch door thickness ensures a secure fit, while the thru bolt with finish washer (T1) provides added stability. This push bar features a bent end shape and a round grip shape for comfortable operation. Constructed from high-quality materials such as aluminum, brass, bronze, and stainless steel, it is available in a variety of finishes, including satin nickel, polished chrome, and several powder-coated options, allowing for seamless integration into any environment. Mounting options are flexible, with heavy-duty configurations available for both wood and metal doors, ensuring reliable performance. Additionally, customization options, including optional engraving to indicate "push" or "pull," enhance usability and aesthetic appeal. Whether you're a building professional or a knowledgeable homeowner, the Rockwood 47-PB 315 33IN Tubular Push Bar is a smart investment in safety and convenience, combining practicality with a polished finish that complements any door style.

Tubular Push Bar, 33in Center to Center (CTC), 1in Diameter, 1-3/4in Door Thickness, Thru Bolt with Finish Washer (T1), 711/315 Black Anodized

The 47-PB (one bar), 47-2-PB (two bars), and 47-3-PB (three bars) and 48-PB (one bar) Push Bars are ideal for wood or metal doors, and feature optional engraving and heavy duty fastening types.

Features:

• Engraving "push" or "pull"
• Heavy duty versions of most fastening types available — use suffix HD to fastening type number

Specifications:

• End Shape: Bent
• Grip Shape: Round
• Base Material: Aluminum, brass, bronze, stainless steel
• Door Material: Metal, wood
• Fastener: Metal and wood door: type 1, 1/4 - 20 x 2-1/4" thru bolt and finish washer; Metal door: type 6, concealed, 1/4 - 20 CH MS
• Push-clearance: 1 3/4"
• Mounting: Type 5HD: Back to back heavy duty (wood or metal)
• Mounting: Type 13HD: Back to back heavy duty (glass)
• Mounting: Type 15HD: Decorative thru bolt heavy duty (glass)
• Ordering: Specify CTC, door type, mounting, and finish
• Advise if door thickness is other than 1-3⁄4"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• 10BE/613E - Dark oxidized Satin bronze, equivalent
• US15/619 - Satin nickel plated clear coated
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• BSP - Black suede powder coat
• WSP - White suede powder coat
• BPC - Black powder coat
• FBPC - Flat black powder coat
