Rockwood 495 US26D Concealed Magnetic Door Stop, 626/US26D Satin Chrome

Rockwood Manufacturing Co 495 US26D Concealed Magnetic Door Stop offers a sophisticated solution for interior wood doors, combining function and style seamlessly. This fully concealed magnetic door stop features a convenient hold-open function, designed to enhance safety by reducing tripping hazards while maintaining a sleek, modern aesthetic. Crafted with concealed rare-earth magnet technology, this door stop ensures exceptional mechanical performance, requiring less than 5 lbs. of force to open, making it compliant with ADA standards. The recommended gap between the floor and the bottom of the door ranges from a minimum of 3/16" to a maximum of 19/32", ensuring optimal functionality. The 495 US26D is constructed from a durable blend of brass, low carbon steel, stainless steel, and polycarbonate, providing long-lasting reliability. Its base measures 1 3/32" in diameter with a base width of 1 11/16", while the striking plate dimensions are 3 5/32" in length and 1 5/16" in width. The satin chrome plated finish (US26D/626) adds a touch of elegance, also available in black or clear finishes. With easy installation using stainless steel screws, the Rockwood 495 US26D is an ideal choice for architects, builders, and discerning homeowners seeking a functional and aesthetically pleasing door accessory.

Concealed Magnetic Door Stop, 626/US26D Satin Chrome

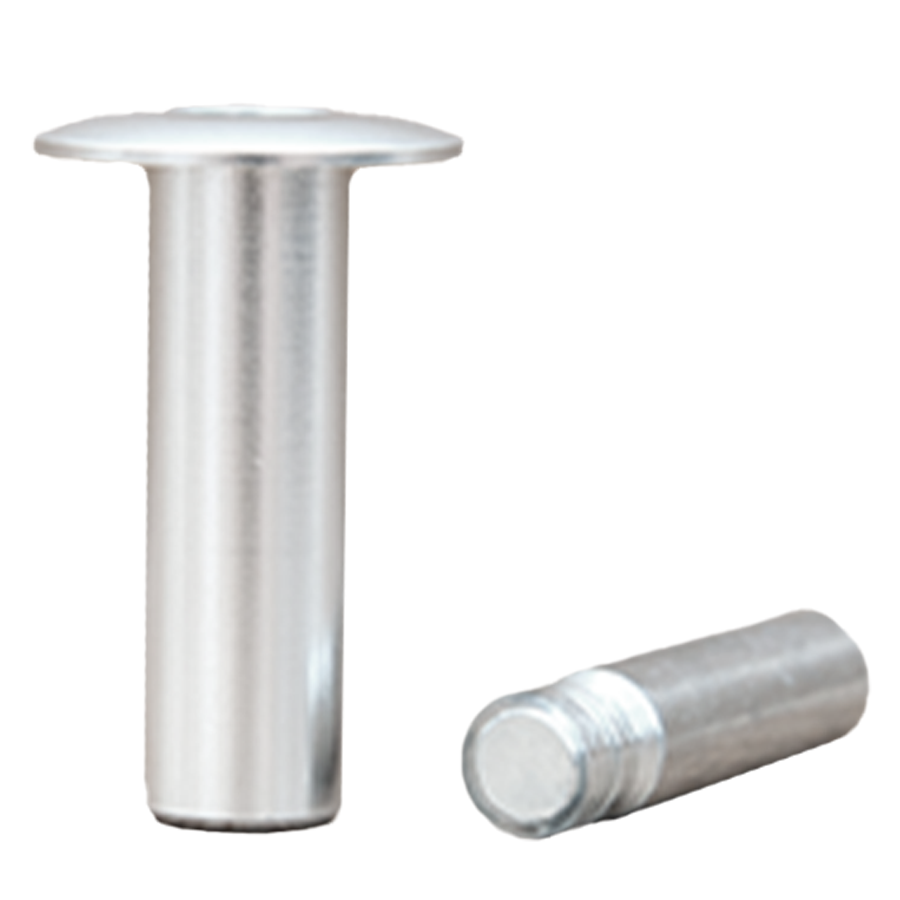

The 495 is a fully concealed magnetic door stop that includes a hold-open function. This system provides a high-quality, innovative solution for all project application requirements, alleviating tripping hazards whilst maintaining a modern, desirable finish.

Features:

• Fully concealed magnetic door stop that includes a hold-open function
• Meets ADA less than 5 lbs. of force to open
• Concealed rare-earth magnet technology ensures exceptional mechanical functionality
• Recommended gap between floor and bottom of the door should be minimum of 3/16" and maximum of 19/32"
• Wood Door application only
• Interior, wood door applications only

Specifications:

• Base Material: Brass, low carbon steel, stainless steel, polycarbonate with magnet
• Base Diameter: 1 3/32"
• Bolt Length: 1 3/4"
• Base Width: 1 11/16"
• Pin Height: 3/8"
• Magnet Diameter: 15/16"
• Magnet Height: 19/32"
• Strike Plate Length: 3 5/32"
• Strike Plate Width: 1 5/16"
• Fasteners: 2 ea #8 x 1" Stainless steel screws

Finishes:

• US26D/626 - Satin chrome plated
• BLK - Black
• Clear
