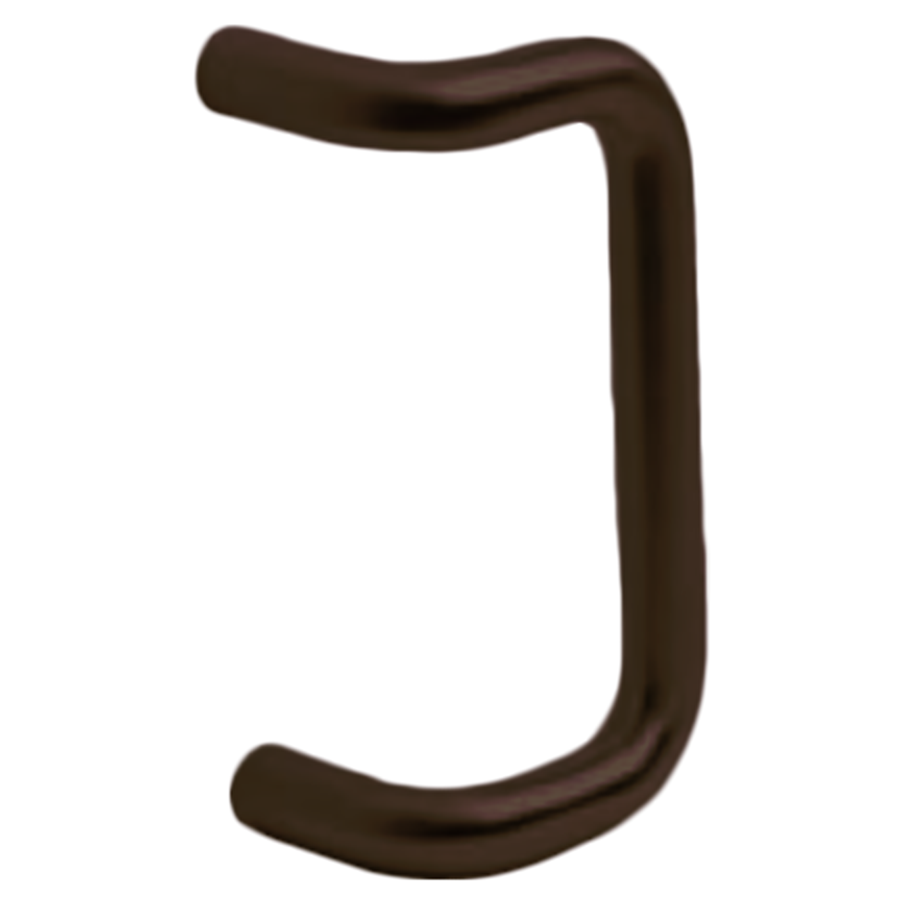

Rockwood BF157 US10BE 10in Offset Pull, 1in Dia, 3.5in Projection, Dark Oxidized Satin Bronze

Rockwood Manufacturing Co BF157 US10BE Offset Pull is expertly designed to enhance accessibility and functionality in various settings. With a 10-inch center-to-center (CTC) measurement and a robust 1-inch diameter, this pull boasts a 3-1/2-inch projection and 2-1/2-inch clearance, making it an ideal choice for ADA openings. Its bent end shape and round grip shape provide comfortable handling, ensuring ease of use for all individuals. Constructed from durable materials such as aluminum, brass, bronze, and stainless steel, the BF157 is built to withstand heavy use while maintaining its sleek appearance. The pull features a thru bolt fastening system with a 1/4-20 x 2-1/4" bolt and finish washer, ensuring secure installation. The dark oxidized satin bronze finish (US10BE/613E) adds an elegant touch that complements a variety of architectural styles. For added versatility, the BF157 supports back-to-back mounting and concealed mounting options, making it suitable for various door thicknesses-simply specify if your door differs from the standard 1-3/4". This heavy-duty pull is not only a functional addition to any entrance but also enhances the overall aesthetic of your space. Choose the Rockwood BF157 for a reliable, stylish, and ADA-compliant solution.

Offset Pull, 10in Center to Center (CTC), 1in Diameter x 3-1/2in Projection x 2-1/2in Clearance, Thru Bolt with Finish Washer (T1), 613E/US10BE Dark Oxidized Satin Bronze

The BF156, BF157, BF158, BF159 90° offset door pulls are recommended for ADA openings and feature back-to-back and concealed mounting options.

Features:

• Recommended for ADA openings
• Barrier-free

Specifications:

• End Shape: Bent
• Grip Shape: Round
• Base Material: Aluminum, brass, bronze, stainless steel
• Fastener: 1/4 - 20 x 2-1/4" thru bolt & finish washer
• Projection: 3 1/2"
• Offset: 4"
• Concealed mounting single pulls — use C suffix and mounting type number
• Heavy duty versions of most fastening types available — use suffix HD to fastening type number
• Mounting selections for standard duty 1/4-20 can be viewed under Mounting Details on this site
• Back to back mounting in pairs — use BTB suffix and mounting type number
• Advise if door thickness is other than 1-3⁄4"

Finishes:

• US28/628 - Clear anodized
• 313/710 - Dark bronze anodized
• 315/711 - Black anodized
• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US32D/630 - Satin stainless steel
• US32/629 - Bright stainless steel
• US32D316 - Satin 316 alloy
• US32316 - Polished 316 alloy
