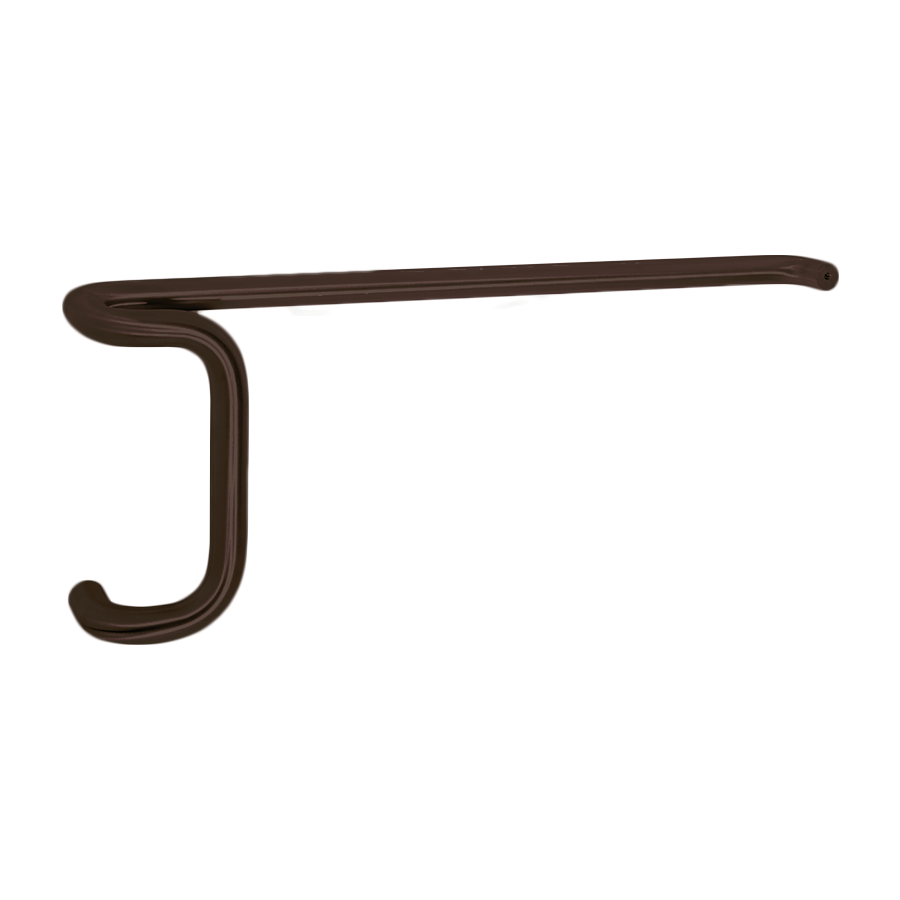

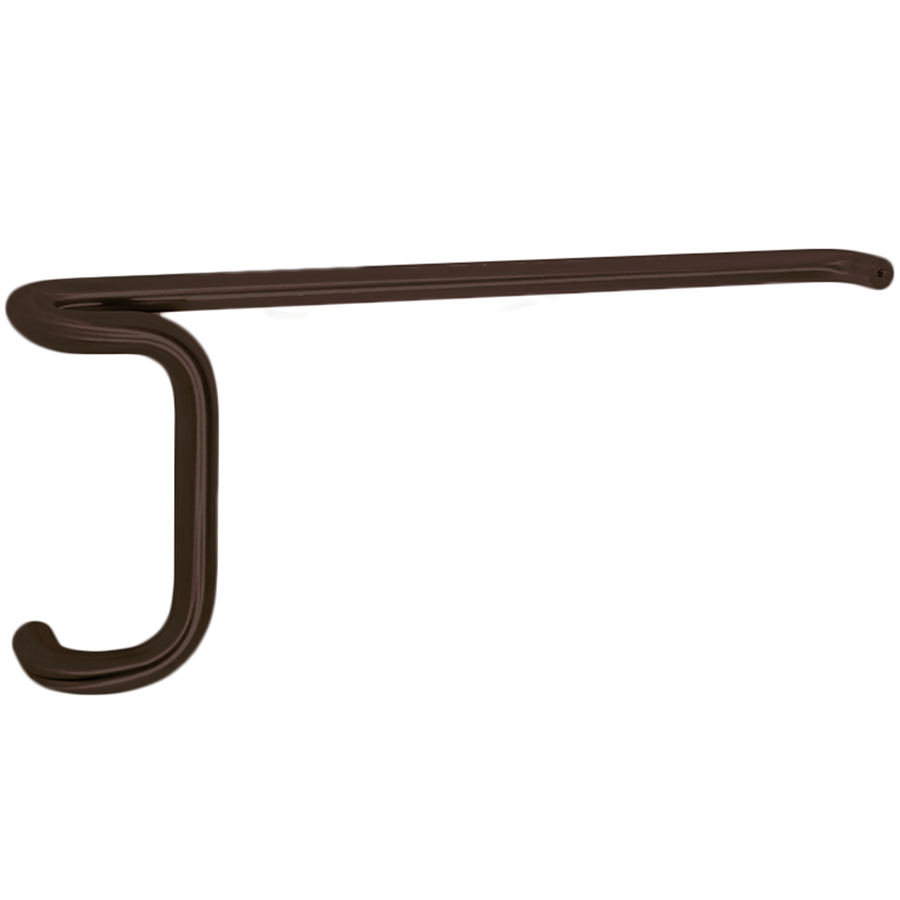

Rockwood BF15747 US10B T3 Offset Pull x Push Bar, 10in 33in CTC, 1in Dia, Oil Rubbed Bronze

Rockwood Manufacturing Co BF15747 US10B T3 Offset Pull x Push Bar is a robust and stylish solution for enhancing access to your doors. Designed with a 10-inch center-to-center (CTC) distance, this pull and push bar boasts a 1-inch diameter and is available in a rich oil-rubbed bronze (613/US10B) finish, making it not only functional but also an elegant addition to both residential and commercial spaces. This offset bar features a bent end shape and round grip, ensuring a comfortable and secure hold for users. The heavy-duty construction accommodates a variety of mounting options, including T3 back-to-back and thru bolt for metal and wood doors, as well as decorative options for a more customized look. With a push clearance of 1 3/4 inches and a projection of 3 1/2 inches, this product provides ample space for smooth operation. The versatility of the BF15747 extends to its compatibility with various door materials, including metal and wood, making it suitable for a range of applications. It also supports optional engraving and includes multiple fastening types, ensuring a secure and reliable installation. Elevate your door access solutions with this premium product from Rockwood Manufacturing Co, crafted for durability and style.

Offset Pull x Push Bar, 10in CTC x 33in CTC, 1in Diameter, Back to Back and Thru Bolt (T3), 613/US10B Oil Rubbed Bronze

The BF15647 (8" CTC), BF15747 (10" CTC), BF15847 (12" CTC), BF15947 (18" CTC) Series 47 Offset Single Bar Sets feature optional engraving, base plates, and heavy duty fastening types.

Mountings:

• Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
• Metal: T4 Back to Back and Concealed; Pull Free End = 17, Push Free End = 17, Common End = 16
• Wood: T5 Back to Back and Concealed; Pull Free End = 8, Push Free End = 8, Common End = 5
• Metal & Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
• Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Push Free End = 15; Common End = 13
• T3 is the standard mounting method for Metal and Wood Doors.

Specifications:

• End Shape: Bent
• Grip Shape: Round
• Base Material: Aluminum, brass, bronze, stainless steel
• Door Material: Metal, wood
• Diameter: 1"
• Push Clearance: 1 3/4"
• Projection: 3 1/2"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32316 - Polished 316 alloy
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• 313/710 - Dark bronze anodized
• 314 - Extra dark bronze anodized
• 315/711 - Black anodized

Features

• Wood: T5 Back to Back and Concealed; Pull Free End = 8, Push Free End = 8, Common End = 5
• Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
• Metal & Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
• Metal: T4 Back to Back and Concealed; Pull Free End = 17, Push Free End = 17, Common End = 16
• Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Push Free End = 15; Common End = 13
• T3 is the standard mounting method for Metal and Wood Doors.

Resources

• Cut Sheet
