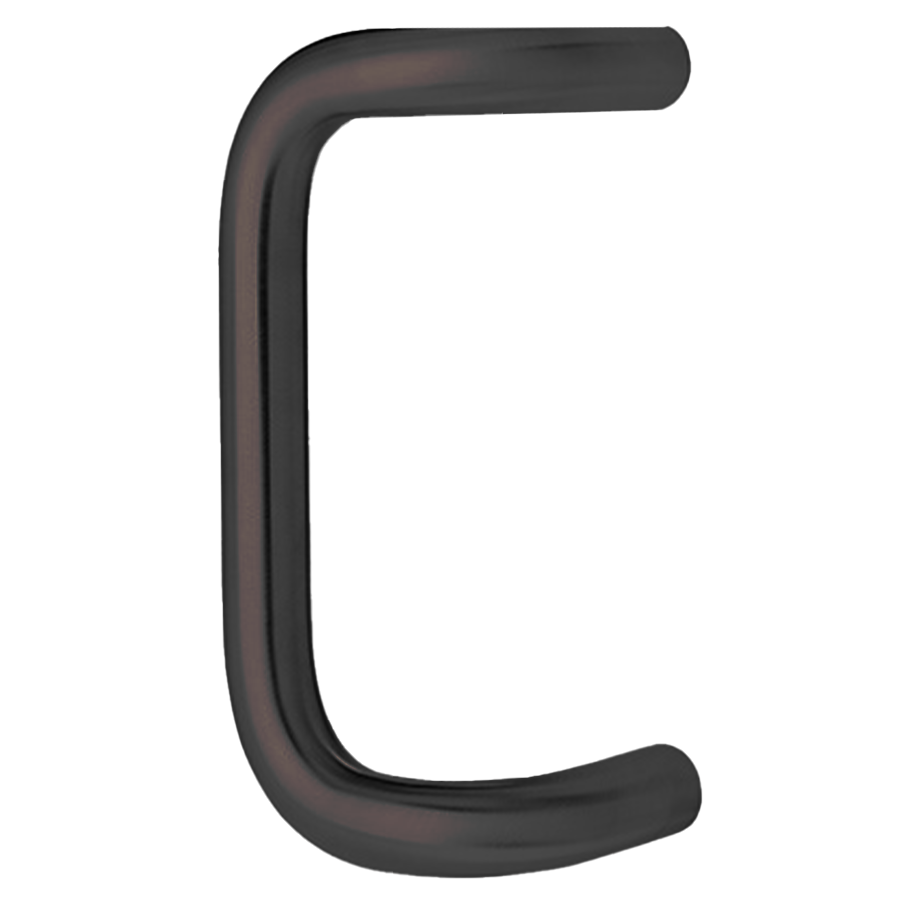

Rockwood BF157A 313 BTB 9in Offset Pull, 1in Dia x 3.5in Projection, Dark Bronze, Thru Bolt

Rockwood Manufacturing Co BF157A 313 BTB Offset Pull offers a reliable solution for accessible doorways, making it an ideal choice for ADA openings. With a 9-inch center-to-center (CTC) measurement and a robust 1-inch diameter, this pull is designed to provide a comfortable grip with its round shape. The projection of 3-1/2 inches and a clearance of 2-1/2 inches ensure easy maneuverability, while the 4-inch offset accommodates various door designs. Constructed from durable materials, the BF157A features a dark bronze powder-coated finish (695/313), which not only enhances its aesthetic appeal but also provides excellent resistance to wear and tear. The thru bolt installation with a finish washer ensures secure mounting, making it suitable for both back-to-back and concealed applications. This heavy-duty pull is recommended for barrier-free environments and is versatile enough to be used in pairs or as single pulls. The concealed mounting options add to its sleek appearance, ensuring that it complements any architectural style. For those needing additional mounting details or variations for door thickness, Rockwood provides comprehensive support to meet your specific needs. Enhance your space with the reliability and style of the Rockwood BF157A 313 BTB Offset Pull.

Offset Pull, 9in Center to Center (CTC), 1in Diameter x 3-1/2in Projection x 2-1/2in Clearance, Thru Bolt with Finish Washer (T1), 695/313 Dark Bronze Powder Coated

The BF156, BF157, BF158, BF159 90° offset door pulls are recommended for ADA openings and feature back-to-back and concealed mounting options.

Features:

• Recommended for ADA openings
• Barrier-free

Specifications:

• End Shape: Bent
• Grip Shape: Round
• Base Material: Aluminum, brass, bronze, stainless steel
• Fastener: 1/4"-20 x 2 1/4" thru bolt & finish washer (standard 1 3/4" door)
• Projection: 3 1/2"
• Offset: 4"
• Concealed mounting single pulls — use C suffix and mounting type number
• Heavy duty versions of most fastening types available — use suffix HD to fastening type number
• Mounting selections for standard duty 1/4-20 can be viewed under Mounting Details on this site
• Back to back mounting in pairs — use BTB suffix and mounting type number
• Advise if door thickness is other than 1-3⁄4"

Finishes:

• US28/628 - Clear anodized
• 313/710 - Dark bronze anodized
• 315/711 - Black anodized
• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US32D/630 - Satin stainless steel
• US32/629 - Bright stainless steel
• US32D316 - Satin 316 alloy
• US32316 - Polished 316 alloy
