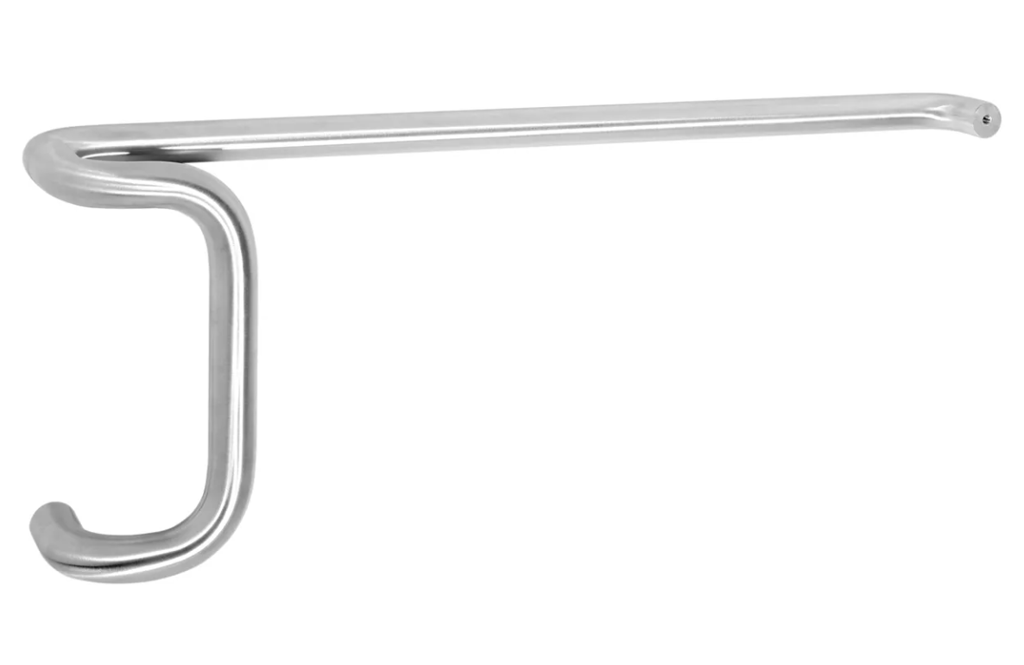

Rockwood BF15847 US32D T3 Offset Pull x Push Bar, 12in 33in CTC, 1in Dia, Stainless Steel

Rockwood Manufacturing Co BF15847 US32D T3 Offset Pull x Push Bar is a robust and elegantly designed solution for enhancing the functionality of metal and wood doors. With a center-to-center measurement of 12 inches and a 1-inch diameter, this offset pull and push bar is crafted from durable stainless steel, ensuring long-lasting performance and resistance to wear. The BF15847 features a bent end shape and round grip for comfortable use, making it ideal for high-traffic areas in both commercial and residential settings. Its mounting system utilizes the T3 Back to Back and Thru Bolt method, providing reliable installation with a pull free end and push free end of 1, alongside a common end of 5. This versatility allows it to adapt seamlessly to various door materials. Available in a satin stainless steel finish, this pull x push bar not only meets functional needs but also enhances the aesthetic appeal of any door. Optional features such as engraving and base plates further enhance customization, ensuring that it fits your specific design requirements. Choose the Rockwood BF15847 for a dependable, stylish addition to your door hardware that combines form and function effortlessly.

Offset Pull x Push Bar, 12in CTC x 33in CTC, 1in Diameter, Back to Back and Thru Bolt (T3), 630/US32D Stainless Steel

The BF15647 (8" CTC), BF15747 (10" CTC), BF15847 (12" CTC), BF15947 (18" CTC) Series 47 Offset Single Bar Sets feature optional engraving, base plates, and heavy duty fastening types.

Mountings:

• Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
• Metal: T4 Back to Back and Concealed; Pull Free End = 17, Push Free End = 17, Common End = 16
• Wood: T5 Back to Back and Concealed; Pull Free End = 8, Push Free End = 8, Common End = 5
• Metal & Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
• Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Push Free End = 15; Common End = 13
• T3 is the standard mounting method for Metal and Wood Doors.

Specifications:

• End Shape: Bent
• Grip Shape: Round
• Base Material: Aluminum, brass, bronze, stainless steel
• Door Material: Metal, wood
• Diameter: 1"
• Push Clearance: 2 1/2"
• Projection: 2 3/4"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32316 - Polished 316 alloy
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• 313/710 - Dark bronze anodized
• 314 - Extra dark bronze anodized
• 315/711 - Black anodized

Features

• Wood: T5 Back to Back and Concealed; Pull Free End = 8, Push Free End = 8, Common End = 5
• Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
• Metal & Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
• Metal: T4 Back to Back and Concealed; Pull Free End = 17, Push Free End = 17, Common End = 16
• Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Push Free End = 15; Common End = 13
• T3 is the standard mounting method for Metal and Wood Doors.
