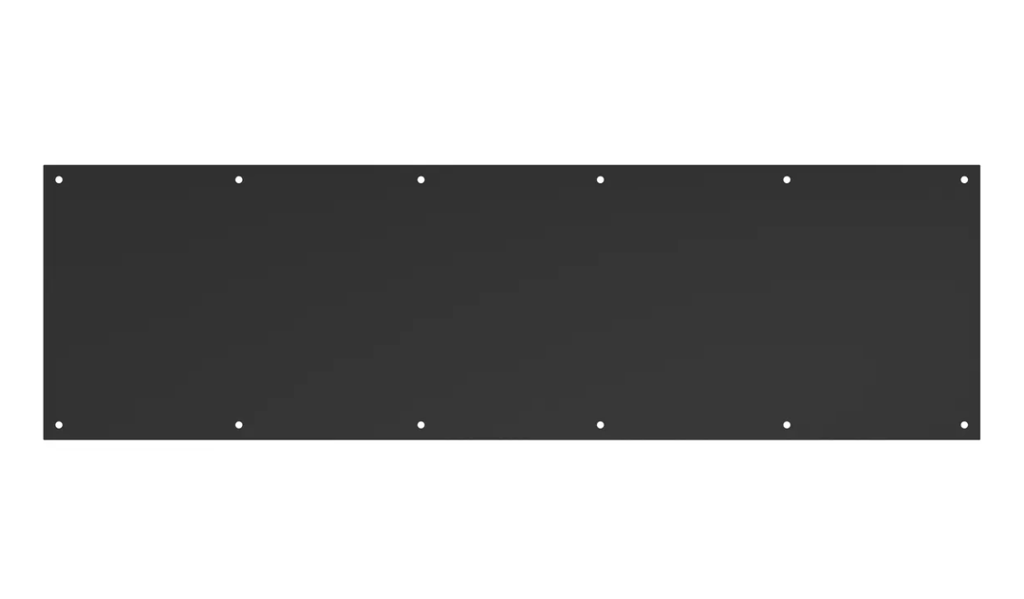

Rockwood K1050 10X34 FBPC CSK K1050 Kickplate 10"x34", .050" Thick, Beveled Edges, Flat Black Coated

Rockwood Manufacturing Co K1050 10X34 FBPC CSK Kickplate is an essential addition for enhancing the durability of your doors. Constructed from .050" thick aluminum, this standard-duty metal door plate features beveled edges that not only provide a polished look but also prevent chipping and wear. Measuring 10 inches by 34 inches, the K1050 is designed to fit seamlessly on both push and pull sides of doors, with widths that are conveniently reduced by 2 inches and 1.5 inches respectively. This kickplate is finished in a sleek flat black powder coating (693/FBPC), ensuring a modern aesthetic while providing robust protection against impacts and abrasions. The K1050 is UL listed for use on 90-minute label wood doors and 3-hour label metal doors, making it a reliable choice for various applications. Installation is straightforward, utilizing #6 x 5/8" oval head sheet metal screws for secure mounting. With options for additional screw mounting (K1050F) and compliance with NFPA 80 standards, this kickplate is perfect for both commercial and residential settings. Choose the K1050 for a blend of style and functionality that safeguards your doors against everyday wear and tear.

Kickplate 10in x 34in, K1050 .050in Thickness, Beveled Edges, Countersunk Holes, 693/FBPC Flat Black Powder Coated

The K1050 is a standard-duty metal door plate that is .050" thick and all edges come beveled.

Features:

• Push side plate width - 2" less than door width
• Pull side plate width - 1 1/2" less than door width
• All edges come beveled

Specifications:

• Base Material: Aluminum, brass, bronze, stainless steel
• Fastener: #6 x 5/8" oval head sheet metal screws
• Finishes US26/625 and US26D/626 are only available up to 24"H
• Optional screw mounting (K1050F) and UL listed for use on 90-mintue label wood doors and 3-hours label metal doors. Max size for UL is 54"H x 46-1-2" W.
• Specify height x width x finish code. Add any options.
• NFPA 80 STANDARDS - 2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing. Exception: Labeling is not required where the top of the protection plate is not more than 16 in. (406 mm) above the bottom of the door.
• Material Thickness: .050"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US9/611 - Polished clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• BSP - Black suede powder coat
• WSP - White suede powder coat
