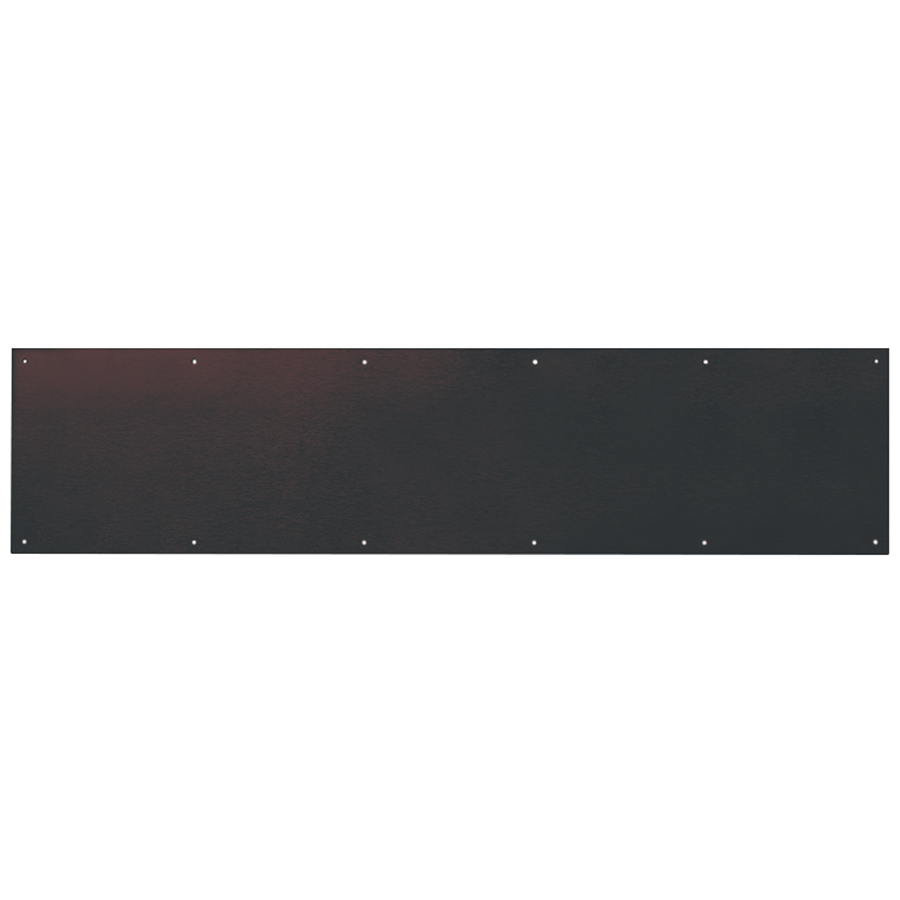

Rockwood K1050 10X34 US10B Kickplate 10"x34", K1050 .050" Thick, Beveled Edges, Oil Rubbed Bronze

Rockwood Manufacturing Co K1050 10X34 US10B Kickplate offers a robust solution for protecting your doors while enhancing their aesthetic appeal. Crafted from high-quality aluminum with a thickness of .050 inches, this standard-duty kickplate ensures durability against wear and tear in high-traffic areas. Its beveled edges not only provide a sleek finish but also promote safety by reducing sharp corners. Designed for versatility, the K1050 features a push side plate width that is 2 inches less than the door width and a pull side plate width that measures 1.5 inches less, making it suitable for various door sizes. The kickplate is available in an elegant oil-rubbed bronze finish (US10B/613), adding a touch of sophistication to any entryway. Installation is straightforward with #6 x 5/8-inch oval head sheet metal screws, and optional screw mounting (K1050F) enhances its adaptability. This kickplate is UL listed for use on 90-minute label wood doors and 3-hour label metal doors, with a maximum size of 54 inches high by 46-1/2 inches wide. With compliance to NFPA 80 standards for protection plates, the Rockwood K1050 is an essential accessory for professionals and conscientious homeowners looking to safeguard their investments while maintaining a polished appearance.

Kickplate 10in x 34in, K1050 .050in Thickness, Beveled Edges, 613/US10B Oil Rubbed Bronze

The K1050 is a standard-duty metal door plate that is .050" thick and all edges come beveled.

Features:

• Push side plate width - 2" less than door width
• Pull side plate width - 1 1/2" less than door width
• All edges come beveled

Specifications:

• Base Material: Aluminum, brass, bronze, stainless steel
• Fastener: #6 x 5/8" oval head sheet metal screws
• Finishes US26/625 and US26D/626 are only available up to 24"H
• Optional screw mounting (K1050F) and UL listed for use on 90-mintue label wood doors and 3-hours label metal doors. Max size for UL is 54"H x 46-1-2" W.
• Specify height x width x finish code. Add any options.
• NFPA 80 STANDARDS - 2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing. Exception: Labeling is not required where the top of the protection plate is not more than 16 in. (406 mm) above the bottom of the door.
• Material Thickness: .050"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US9/611 - Polished clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• BSP - Black suede powder coat
• WSP - White suede powder coat

Resources

• Cut Sheet
