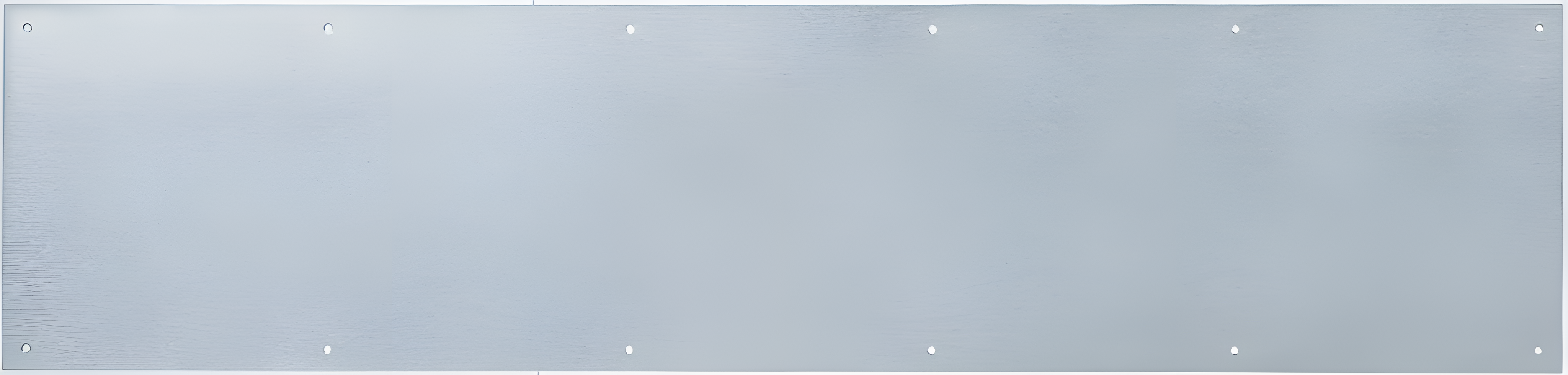

Rockwood K1050 14X37 US32D K1050 Kickplate 14"x37", .050" Thick, Beveled Edges, 630/US32D Stainless Steel

Rockwood Manufacturing Co K1050 14X37 US32D Kickplate offers a durable and stylish solution to protect your doors from wear and tear. Measuring 14 inches by 37 inches and crafted from .050-inch thick stainless steel, this kickplate is designed with beveled edges that provide a seamless appearance while ensuring safety and accessibility. This standard-duty metal door plate is perfect for both residential and commercial applications. The K1050 features a push side plate width that is 2 inches less than the door width and a pull side plate width that is 1.5 inches less, ensuring a precise fit. It comes with #6 x 5/8-inch oval head sheet metal screws for secure installation. The K1050 is not only functional but also compliant with NFPA 80 standards for fire-rated doors, making it suitable for use on 90-minute label wood doors and 3-hour label metal doors. The kickplate is available in a variety of finishes, including satin stainless steel (US32D), ensuring that you can match it to your door's aesthetic. Whether you're looking to enhance the durability of your entryway or simply want to add a polished touch, the Rockwood K1050 kickplate is an excellent choice for any building professional or discerning homeowner.

Kickplate 14in x 37in, K1050 .050in Thickness, Beveled Edges, 630/US32D Stainless Steel

The K1050 is a standard-duty metal door plate that is .050" thick and all edges come beveled.

Features:

• Push side plate width - 2" less than door width
• Pull side plate width - 1 1/2" less than door width
• All edges come beveled

Specifications:

• Base Material: Aluminum, brass, bronze, stainless steel
• Fastener: #6 x 5/8" oval head sheet metal screws
• Finishes US26/625 and US26D/626 are only available up to 24"H
• Optional screw mounting (K1050F) and UL listed for use on 90-mintue label wood doors and 3-hours label metal doors. Max size for UL is 54"H x 46-1-2" W.
• Specify height x width x finish code. Add any options.
• NFPA 80 STANDARDS - 2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing. Exception: Labeling is not required where the top of the protection plate is not more than 16 in. (406 mm) above the bottom of the door.
• Material Thickness: .050"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US9/611 - Polished clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• BSP - Black suede powder coat
• WSP - White suede powder coat
