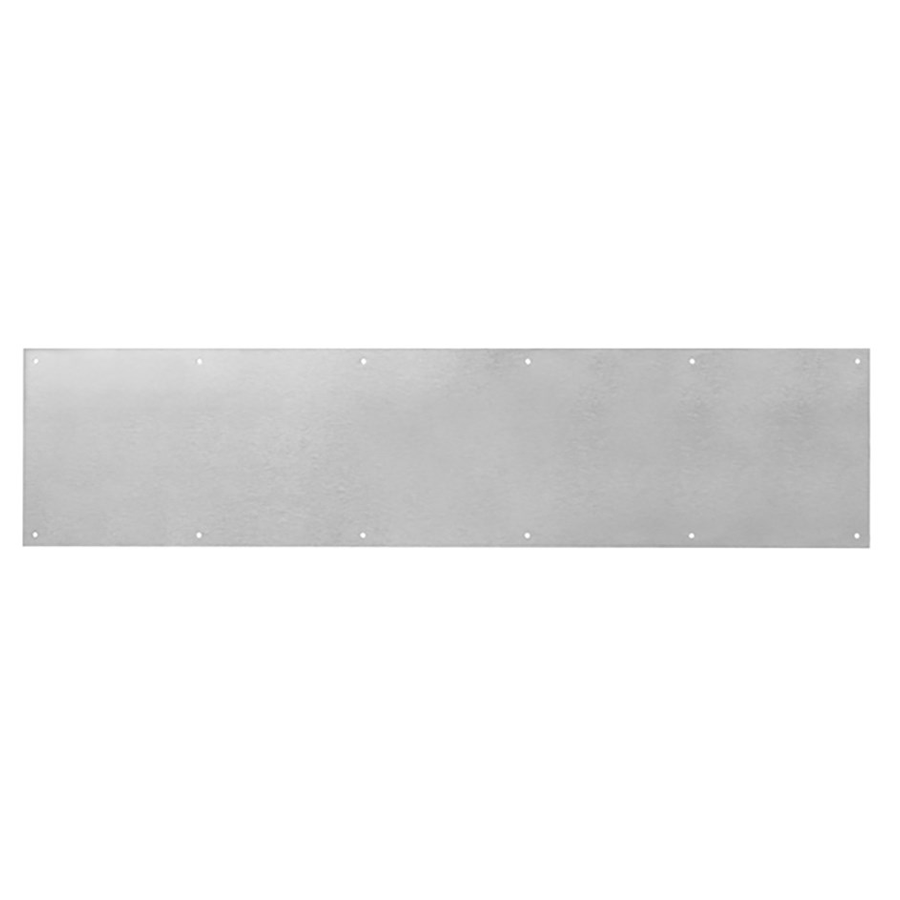

Rockwood K1050 30X40 US32D 30"x40" K1050 .050" Beveled Kickplate, 630/US32D Stainless Steel

Rockwood Manufacturing Co K1050 30X40 US32D Kickplate is a standard-duty metal door plate designed to protect your doors from wear and damage. With a thickness of .050 inches and beveled edges, this kickplate combines durability and aesthetic appeal, making it an ideal choice for both residential and commercial applications. Measuring 30 inches by 40 inches, the K1050 features a push side plate width that is 2 inches less than the door width and a pull side plate width that is 1.5 inches less, ensuring a seamless fit. Crafted from high-quality stainless steel with a satin finish, this kickplate is not only robust but also resistant to corrosion and wear, ensuring long-lasting performance. Installation is straightforward, utilizing #6 x 5/8" oval head sheet metal screws for secure attachment. The K1050 is UL listed for use on 90-minute labeled wood doors and 3-hour labeled metal doors, with a maximum size for UL compliance of 54 inches high by 46.5 inches wide. Available in a variety of finishes, including satin stainless steel, this kickplate can complement any door style while providing essential protection. Enhance the longevity of your doors with the Rockwood K1050 Kickplate, blending functionality and style effortlessly.

Kickplate 30in x 40in, K1050 .050in Thickness, Beveled Edges, 630/US32D Stainless Steel

The K1050 is a standard-duty metal door plate that is .050" thick and all edges come beveled.

Features:

• Push side plate width - 2" less than door width
• Pull side plate width - 1 1/2" less than door width
• All edges come beveled

Specifications:

• Base Material: Aluminum, brass, bronze, stainless steel
• Fastener: #6 x 5/8" oval head sheet metal screws
• Finishes US26/625 and US26D/626 are only available up to 24"H
• Optional screw mounting (K1050F) and UL listed for use on 90-mintue label wood doors and 3-hours label metal doors. Max size for UL is 54"H x 46-1-2" W.
• Specify height x width x finish code. Add any options.
• NFPA 80 STANDARDS - 2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing. Exception: Labeling is not required where the top of the protection plate is not more than 16 in. (406 mm) above the bottom of the door.
• Material Thickness: .050"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US9/611 - Polished clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• BSP - Black suede powder coat
• WSP - White suede powder coat
