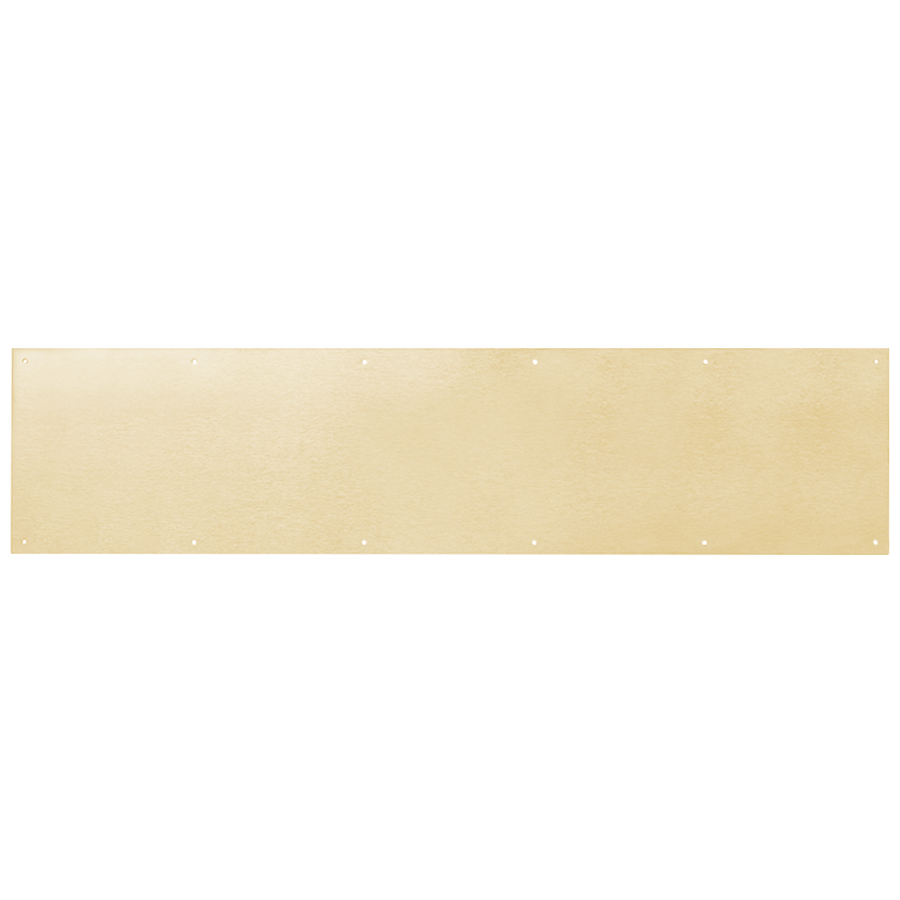

Rockwood K1050 6X34 US3 K1050 Kickplate 6"x34", .050" Thick, Beveled Edges, Bright Brass 605/US3

Rockwood Manufacturing Co K1050 6X34 US3 Kickplate is a durable and stylish solution for protecting your doors from wear and tear. Measuring 6 inches by 34 inches, this kickplate features a thickness of .050 inches and is crafted with beveled edges, ensuring a polished look that complements any entryway. The K1050 is designed as a standard-duty metal door plate, suitable for both residential and commercial applications. Constructed from high-quality aluminum, the kickplate is available in a bright brass finish (US3/605), enhancing both aesthetics and durability. The push side plate width is designed to be 2 inches less than the door width, while the pull side plate width is 1.5 inches less, providing a perfect fit for various door sizes. It comes with #6 x 5/8" oval head sheet metal screws for easy installation. Additionally, the K1050 is UL listed for use on 90-minute label wood doors and 3-hour label metal doors, with a maximum size of 54 inches in height and 46.5 inches in width. This kickplate meets NFPA 80 standards, ensuring compliance and safety in your building. With its blend of function and elegance, the Rockwood K1050 kickplate is an essential accessory for any door.

Kickplate 6in x 34in, K1050 .050in Thickness, Beveled Edges, 605/US3 Bright Brass

The K1050 is a standard-duty metal door plate that is .050" thick and all edges come beveled.

Features:

• Push side plate width - 2" less than door width
• Pull side plate width - 1 1/2" less than door width
• All edges come beveled

Specifications:

• Base Material: Aluminum, brass, bronze, stainless steel
• Fastener: #6 x 5/8" oval head sheet metal screws
• Finishes US26/625 and US26D/626 are only available up to 24"H
• Optional screw mounting (K1050F) and UL listed for use on 90-mintue label wood doors and 3-hours label metal doors. Max size for UL is 54"H x 46-1-2" W.
• Specify height x width x finish code. Add any options.
• NFPA 80 STANDARDS - 2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing. Exception: Labeling is not required where the top of the protection plate is not more than 16 in. (406 mm) above the bottom of the door.
• Material Thickness: .050"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US9/611 - Polished clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• BSP - Black suede powder coat
• WSP - White suede powder coat

Resources

• Cut Sheet
