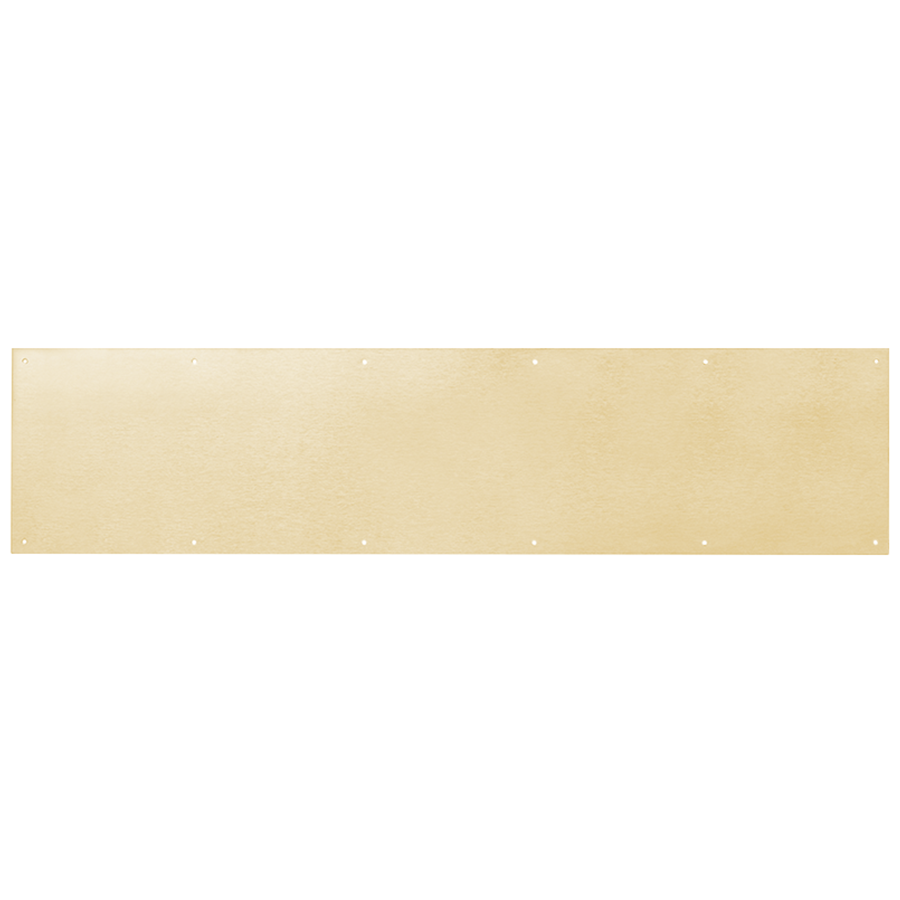

Rockwood K1050 8X34 US3 K1050 Kickplate 8"x34", .050" Thick, Beveled Edges, Bright Brass 605/US3

Rockwood Manufacturing Co K1050 8X34 US3 Kickplate offers a robust solution for protecting your doors from damage while enhancing their aesthetic appeal. This standard-duty metal door plate measures 8 inches by 34 inches and features a thickness of .050 inches, ensuring durability in high-traffic areas. The beveled edges provide a sleek, polished look, making it a perfect fit for any residential or commercial space. Designed with practicality in mind, the push side plate width is 2 inches less than the door width, while the pull side plate width is 1.5 inches less, ensuring a seamless fit. The K1050 is available in an array of finishes, including the polished clear-coated bright brass (US3/605), allowing you to match your existing hardware with ease. Constructed from high-quality materials such as aluminum, brass, bronze, and stainless steel, this kickplate is UL listed for use on 90-minute label wood doors and 3-hour label metal doors. Additionally, it comes with #6 x 5/8" oval head sheet metal screws for easy installation. Whether you're upgrading your home or outfitting a commercial property, the Rockwood K1050 Kickplate combines functionality with style, protecting your doors and maintaining their integrity for years to come.

Kickplate 8in x 34in, K1050 .050in Thickness, Beveled Edges, 605/US3 Bright Brass

The K1050 is a standard-duty metal door plate that is .050" thick and all edges come beveled.

Features:

• Push side plate width - 2" less than door width
• Pull side plate width - 1 1/2" less than door width
• All edges come beveled

Specifications:

• Base Material: Aluminum, brass, bronze, stainless steel
• Fastener: #6 x 5/8" oval head sheet metal screws
• Finishes US26/625 and US26D/626 are only available up to 24"H
• Optional screw mounting (K1050F) and UL listed for use on 90-mintue label wood doors and 3-hours label metal doors. Max size for UL is 54"H x 46-1-2" W.
• Specify height x width x finish code. Add any options.
• NFPA 80 STANDARDS - 2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing. Exception: Labeling is not required where the top of the protection plate is not more than 16 in. (406 mm) above the bottom of the door.
• Material Thickness: .050"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US9/611 - Polished clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• BSP - Black suede powder coat
• WSP - White suede powder coat

Resources

• Cut Sheet
