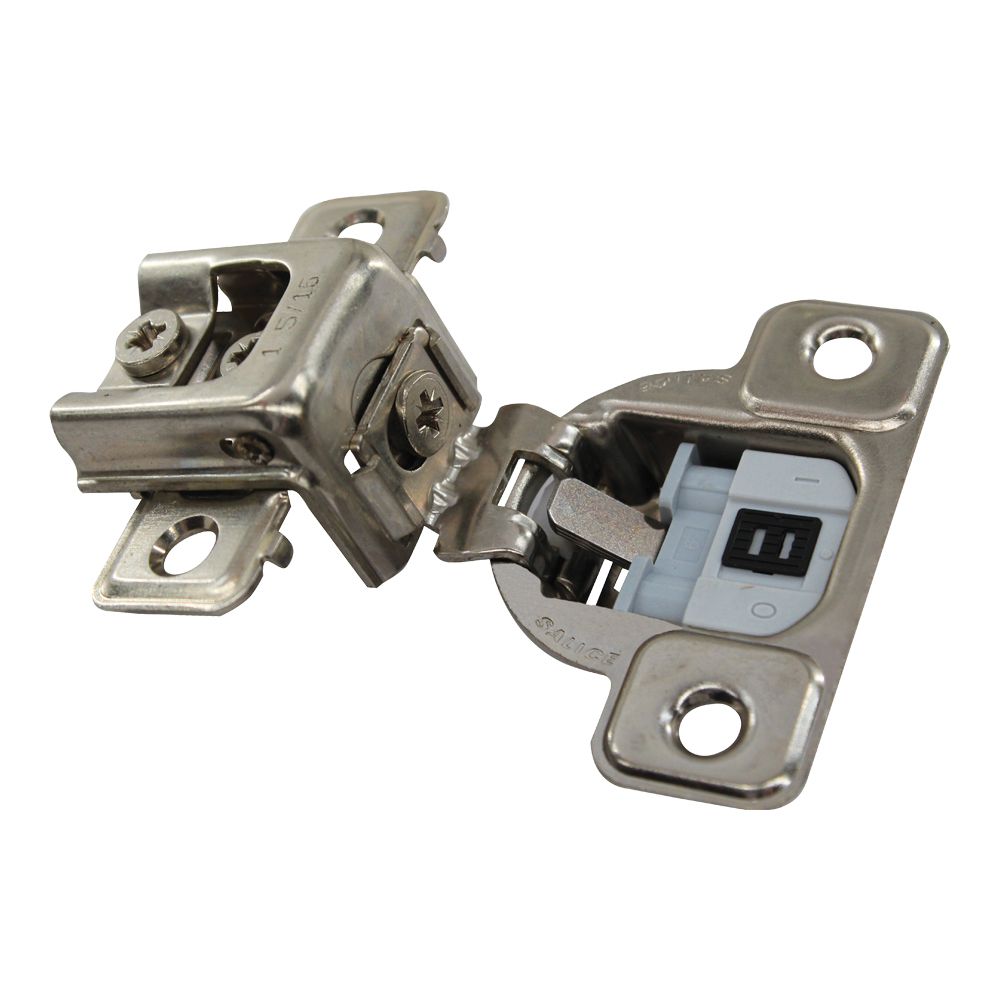

Salice CUP3BD9R 106FF 1-5/16" OL 3-Cam Soft Close Screw-On

SALICE CUP3BD9R 106FF 1-5/16 OL 3Cam SoftClose ScrewOn hinge is engineered to enhance the functionality and aesthetics of your cabinetry. Designed for face frame applications, this hinge features a generous 11mm cup depth, making it ideal for accommodating deeper edge profiles and ensuring a smooth, seamless look. With an increased range of side adjustment (-2mm to +3mm), the CUP3BD9R allows for precise alignment, making installation a breeze. The edge bore distance of 2.5mm is tailored for profile edge doors, providing the flexibility needed for overlay fine-tuning. You’ll appreciate the 4.6mm gap between the door and frame, allowing for a clean and professional finish. This hinge supports a 106° opening, offering ample access while maintaining a sleek appearance. It is compatible with doors ranging from a minimum thickness of 9/16" to a maximum thickness of 7/8", ensuring versatility across various cabinet designs. Weighing in at just 0.15 lbs, the SALICE CUP3BD9R is not only lightweight but also robust enough to provide reliable performance. Upgrade your cabinetry with this innovative hinge, which combines functionality with ease of use, making it an essential choice for building professionals and discerning homeowners alike.

106FF 1-5/16 OL 3Cam SoftClose ScrewOn

• Edge bore distance of 2.5mm to accommodate profile edge doors and allowing overlay fine tuning
• Maximum door thickness 7/8"
• Increased range of side adjustment (-2mm
• 4.6mm gap between door and frame
• 106° opening
• +3mm)
• Minimum door thickness 9/16"
• Features an 11mm cup depth to accommodate deep edge profiles
