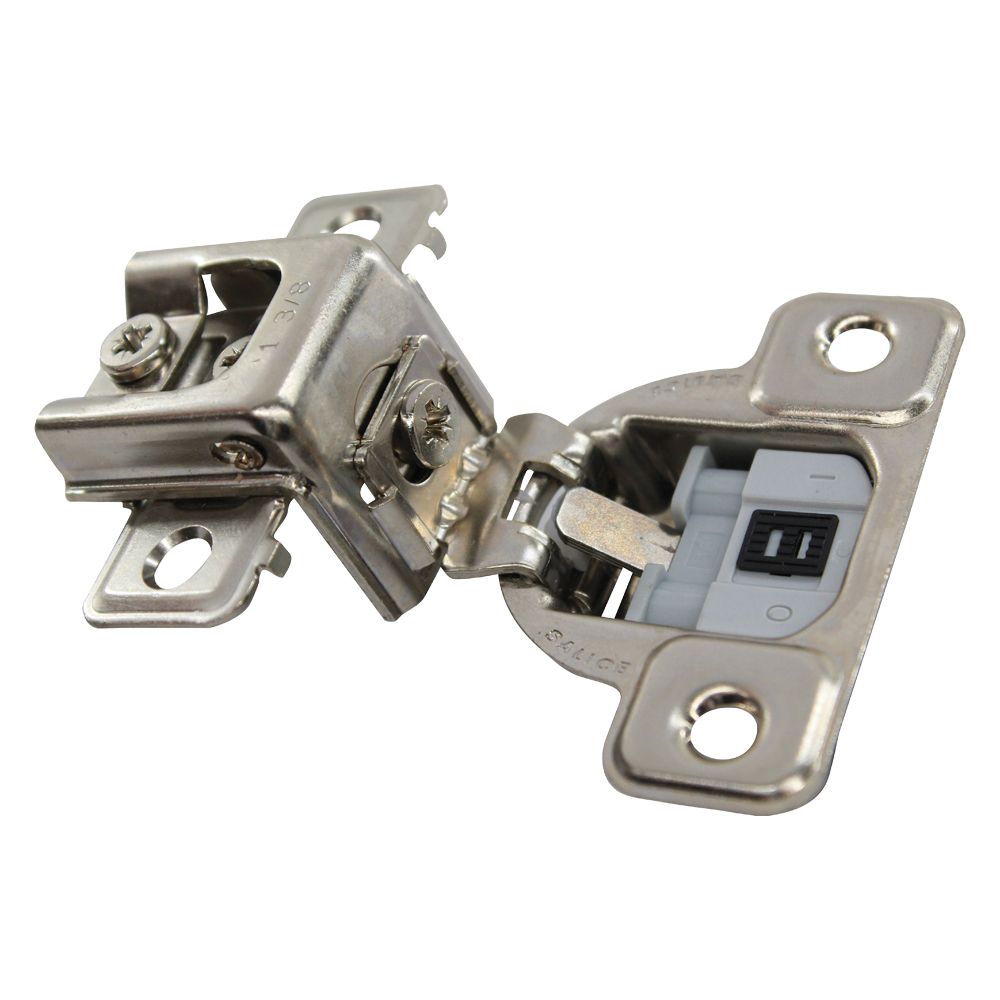

Salice CUP3CD9R 106FF 1-3/8" SoftClose Screw-On Cam Hardware

SALICE CUP3CD9R 106FF 1-3/8" OL 3Cam SoftClose Screw-On hinge offers a perfect blend of functionality and precision for your cabinetry needs. Designed for face frame applications, this hinge features an 11mm cup depth, allowing it to accommodate deep edge profiles, ensuring a seamless integration with your doors. The innovative design includes an increased range of side adjustment, providing flexibility with a movement of -2mm to +3mm, which simplifies installation and alignment. With an edge bore distance of just 2.5mm, the CUP3CD9R is ideal for profile edge doors, making it easier to achieve fine-tuning of overlays. It maintains a 4.6mm gap between the door and frame, contributing to a clean and polished look. The hinge allows for a wide opening angle of 106°, facilitating easy access to cabinet interiors. Compatible with doors ranging from a minimum thickness of 9/16" to a maximum thickness of 7/8", this hinge is versatile enough for various cabinet styles. Weighing only 0.15 pounds, it is lightweight yet robust, designed to endure daily use. Enhance your cabinetry with the reliable performance and quality of SALICE hinges-where innovation meets craftsmanship.

106FF 1-3/8" OL 3Cam SoftClose ScrewOn

• Edge bore distance of 2.5mm to accommodate profile edge doors and allowing overlay fine tuning
• Maximum door thickness 7/8"
• Increased range of side adjustment (-2mm
• 4.6mm gap between door and frame
• 106° opening
• +3mm)
• Minimum door thickness 9/16"
• Features an 11mm cup depth to accommodate deep edge profiles
