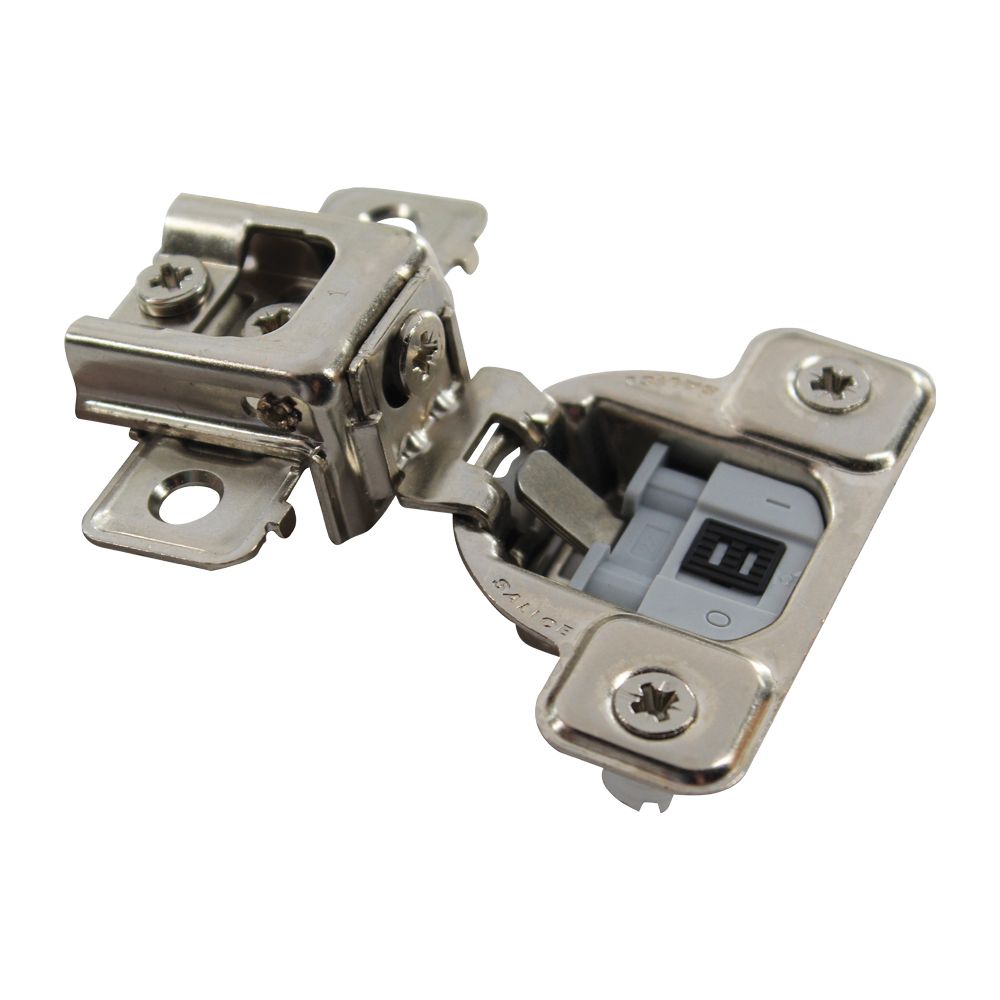

Salice CUR32D9R 106FF 1" OL SoftClose Dowel with 3-Cam Mechanism

SALICE CUR32D9R 106FF 1" OL 3-Cam SoftClose Dowel is engineered for precision and durability, making it an ideal choice for face frame applications. With an 11mm cup depth, this hinge accommodates deep edge profiles, allowing for a seamless integration into your cabinetry. The increased range of side adjustment-spanning from -2mm to +3mm-ensures that you can achieve perfect alignment with ease, enhancing the overall aesthetic of your project. Designed with versatility in mind, the CUR32D9R features an edge bore distance of 2.5mm, which is particularly beneficial for profile edge doors, allowing for fine-tuning of overlays. It creates a 4.6mm gap between the door and frame, providing a smooth operation and visual appeal. The hinge opens to a generous 106°, making access to cabinet interiors effortless. Compatible with doors ranging from a minimum thickness of 9/16" to a maximum of 7/8", this product caters to a variety of cabinet designs. The press-in installation simplifies the setup process, ensuring that even novice builders can achieve professional results. Choose the SALICE CUR32D9R for a reliable, stylish solution to your cabinet hardware needs.

106FF 1" OL 3-Cam SoftClose Dowel

• Edge bore distance of 2.5mm to accommodate profile edge doors and allowing overlay fine tuning
• Maximum door thickness 7/8"
• Increased range of side adjustment (-2mm
• 4.6mm gap between door and frame
• 106° opening
• +3mm)
• Minimum door thickness 9/16"
• Features an 11mm cup depth to accommodate deep edge profiles
