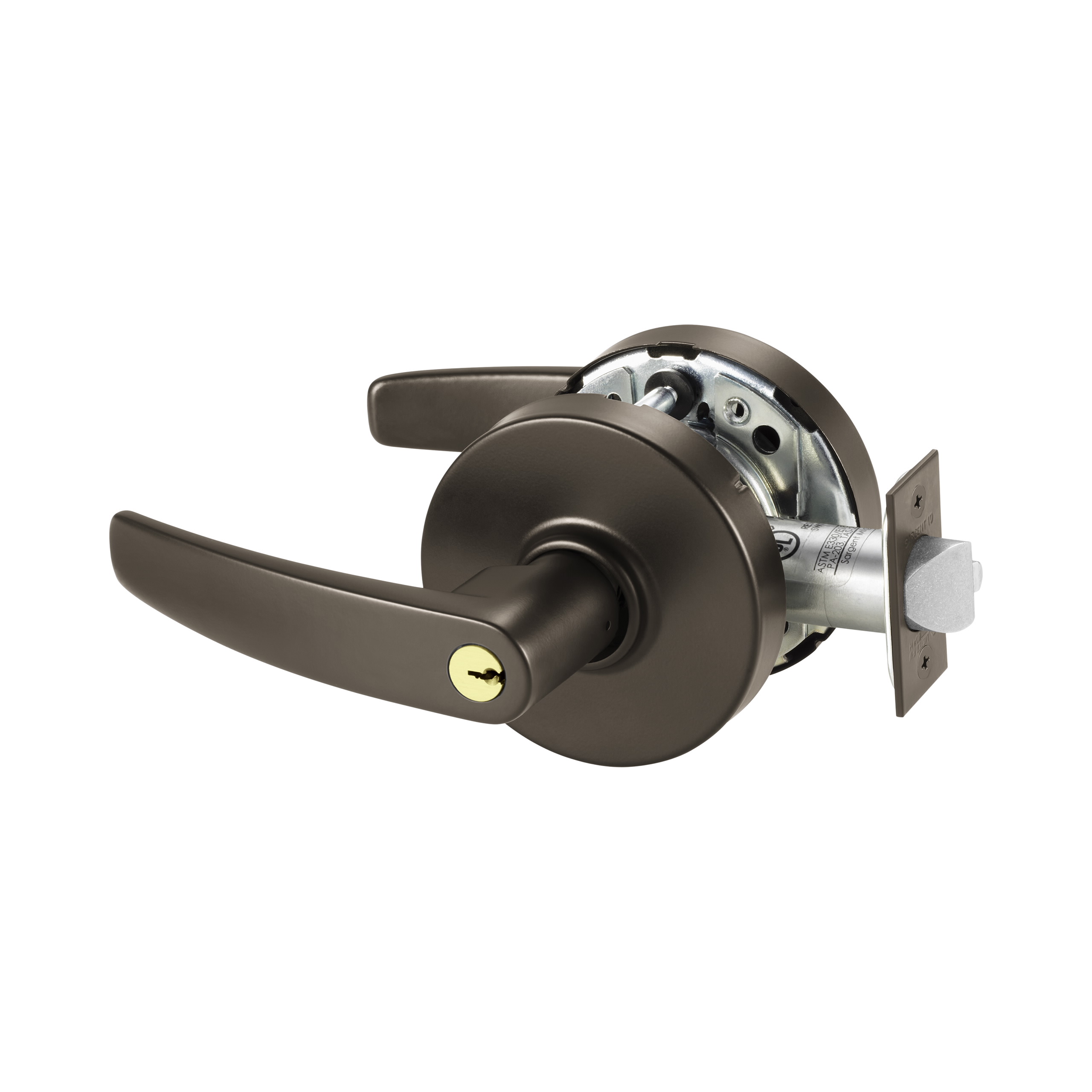

Sargent 10XG05 LB 10BE F109 Grade 1 Cylindrical Lever Lock, B Lever, LA Keyway, Dark Bronze Finish

Sargent 10XG05LB10BE Entry Office (F109) Cylindrical Lever Lock Grade 1 combines robust security with modern design. Crafted for durability and functionality, this lockset features a B Lever and L Rose, finished in a striking Dark Bronze that complements any commercial or institutional setting. Designed to withstand the rigors of daily use, this entry office lock offers superior resistance against forced entry, boasting more than 3,100 in-lb locked lever torque-2.6 times the ANSI/BHMA A156.2 standard. It can endure an offset lever pull of 1,600 lbs, ensuring reliable security. The lockset also guarantees latch retraction under a 100 lb preload, proving effective even on warped doors. The Sargent 10XG05LB10BE is UL-listed with a 3-hour fire rating and has surpassed the 20 million cycle test, ensuring long-lasting performance. It accommodates doors from 1-3/4" to 2" thick, with a 2-3/4" backset and a 2-1/8" crossbore size. The reversible handing and LA keyway further enhance its versatility, making it an ideal choice for various applications. Backed by a 7-year limited warranty, this Grade 1 lock is a key element in maintaining security for any building.

Entry Office (F109) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with LA Keyway KD and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
