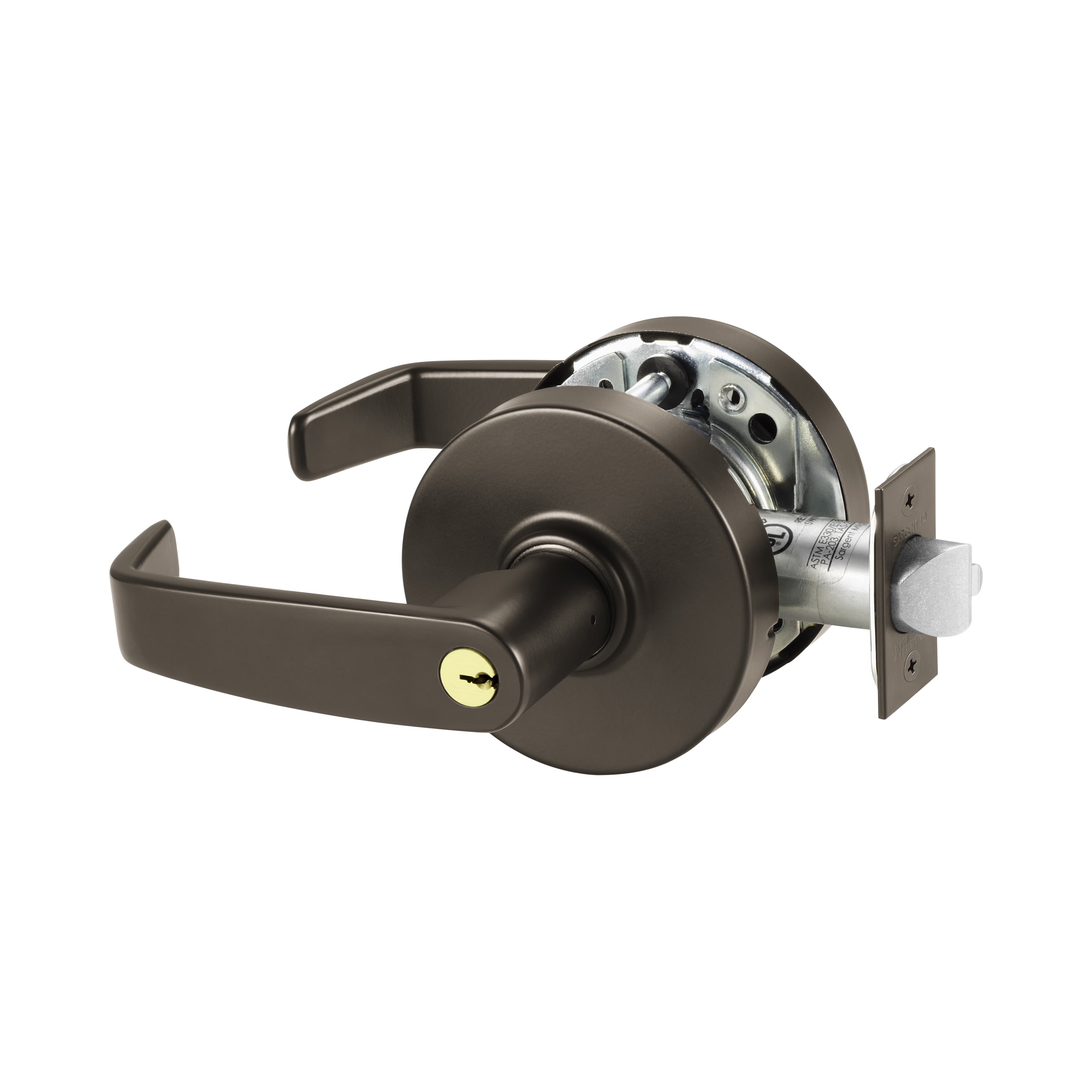

Sargent 10XG05 LL 10BE F109 Grade 1 Cylindrical Lever Lock, LA Keyway, Dark Bronze Finish

Sargent 10XG05LL10BE Entry Office (F109) Cylindrical Lever Lock combines robust security with elegant design, making it an ideal choice for commercial applications. Designed to withstand demanding conditions, this Grade 1 lock features a durable L lever and L rose, finished in a sophisticated dark bronze (US10BE). The LA keyway and reversible handing enhance accessibility, while the ASA strike ensures a secure fit. This lockset excels in performance, capable of preventing unauthorized entry with more than 3,100 in-lb locked lever torque, far exceeding ANSI/BHMA A156.2 requirements. It withstands 1,600 lbs of offset lever pull and manages latch retraction with a 100 lb preload, ensuring functionality even in warped doors. With a UL Cycle rating of 20 million cycles, this lock guarantees long-lasting reliability. Ideal for doors ranging from 1-3/4" to 2" in thickness, the Sargent 10XG05LL10BE features a 2-1/8" crossbore size and a latch faceplate dimension of 1-1/8" x 2-1/4". Backed by a 7-year limited warranty, this cylindrical lockset provides peace of mind for building professionals and homeowners alike, reinforcing the security of any space it occupies.

Entry Office (F109) Cylindrical Lever Lock Grade 1 with L Lever and L Rose with LA Keyway KD and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
