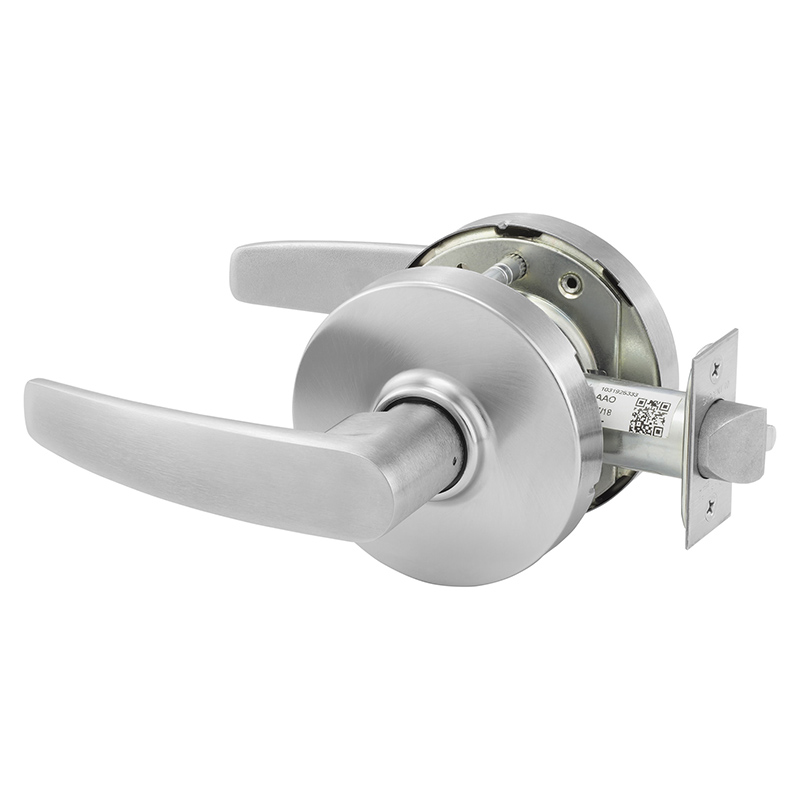

Sargent 10XG153LB26D Exit Communicating Cylindrical Lever Lock Grade 1 features a sleek B Lever design and an L Rose, finished in elegant Satin Chrome. This robust mechanical lockset is engineered for durability, meeting the rigorous ANSI/BHMA A156 2 Grade 1 standards, ensuring reliable security for a variety of commercial applications, including healthcare, education, and industrial settings. With its adaptable through-bolt positioning, the Sargent 10XG153LB26D fits a range of door preparations, making it versatile for various installations. The lockset installs in one minute or less, streamlining the process for busy professionals. Its solid feel and precise lever action guarantee a satisfying user experience. The 2-3/4" backset and 2-1/8" crossbore size make it suitable for doors ranging from 1-3/4" to 2" thick. Designed for stability, the latch faceplate measures 1-1/8" x 2-1/4", while the ASA strike dimensions are 4-7/8" with a 1-1/4" lip, ensuring compatibility with standard door frames. With a reversible handing feature and a 7-year limited warranty, the Sargent 10XG153LB26D is a reliable choice for those seeking quality and performance in architectural hardware.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: B Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Exit Communicating
Function Family: Exit
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: B Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Exit/Communicating
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
