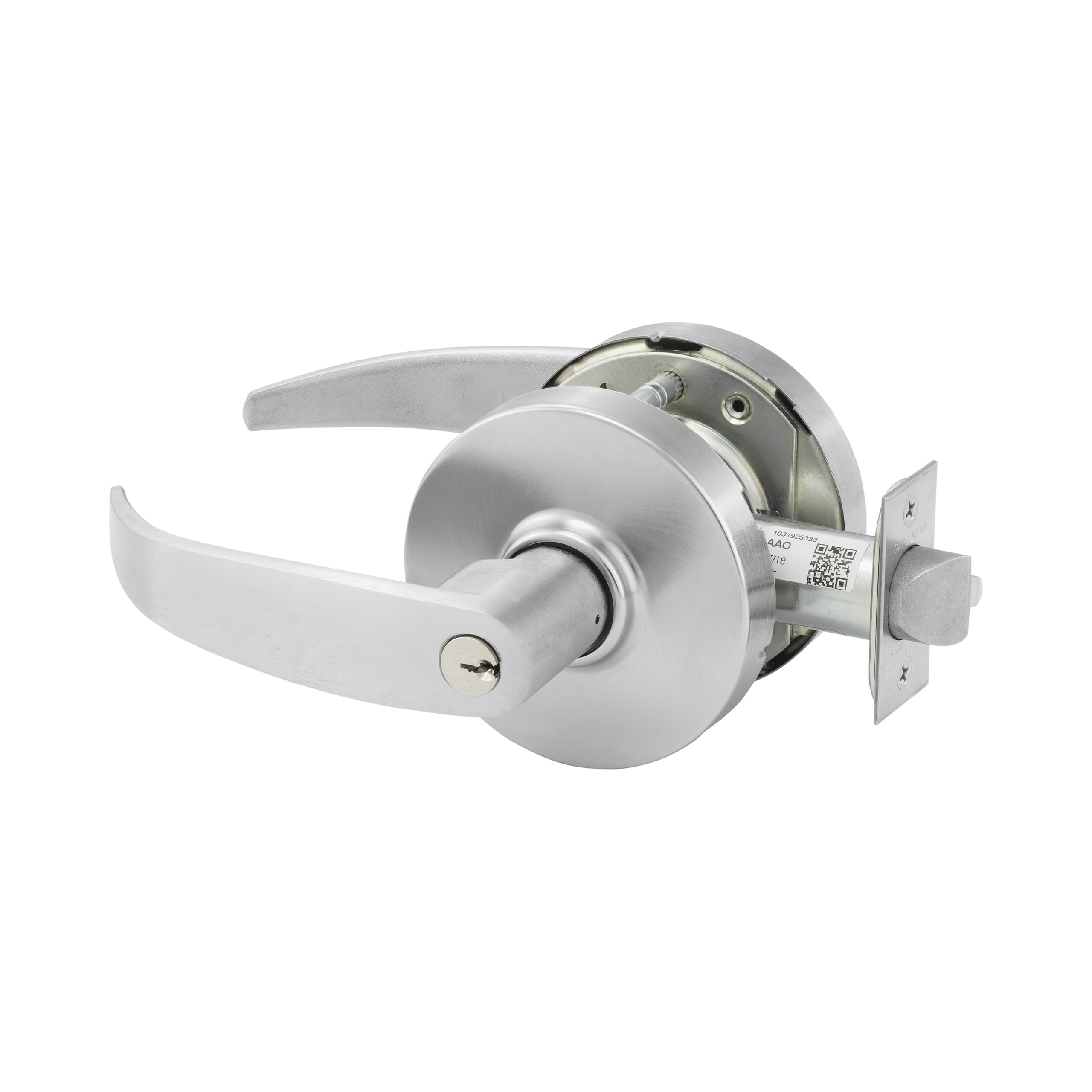

Sargent 10XG17LP26D Utility Asylum Institutional Double Cylinder Lever Lock is designed for demanding environments where security and reliability are paramount. This Grade 1 mechanical lockset features a P Lever design and L Rose, ensuring both aesthetic appeal and robust performance. With an LA keyway and a reversible handing, this lockset provides versatile access control suited for institutional applications. The 2-3/4" backset and 2-1/8" crossbore size make installation straightforward, while its compatibility with doors ranging from 1-3/4" to 2" thick ensures a secure fit. Finished in a sleek satin chrome (finish code 26D), the lockset not only complements contemporary designs but also ensures long-lasting durability. Equipped with a 6-pin keyway and an ASA strike measuring 4-7/8" with a 1-1/4" lip, this lockset meets stringent safety standards, being UL Listed for 3-hour doors. The latch faceplate dimension is 1-1/8" x 2-1/4", providing a solid foundation for reliable operation. Backed by a 7-year limited warranty, the Sargent 10XG17LP26D is the ideal choice for professionals seeking a dependable locking solution for institutional settings.
Attributes
Alternate Codes: 10XG17-LP-26D, 10XG17LP26D
Ansi: F87
Ansi Function: F87 - Asylum
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Cylinders Present: Double Cylinder
Design: P Lever
Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Utility Asylum Institutional Double Cylinder
Function Family: Institutional
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: LA Keyway
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: P Lever
Lever Knob Design Name: P
Leverknob Design: P Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Utility/Asylum/Institutional
Manufacturer Warranty: 7 Year Limited Warranty
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour Door
Unit of Measure: Each
