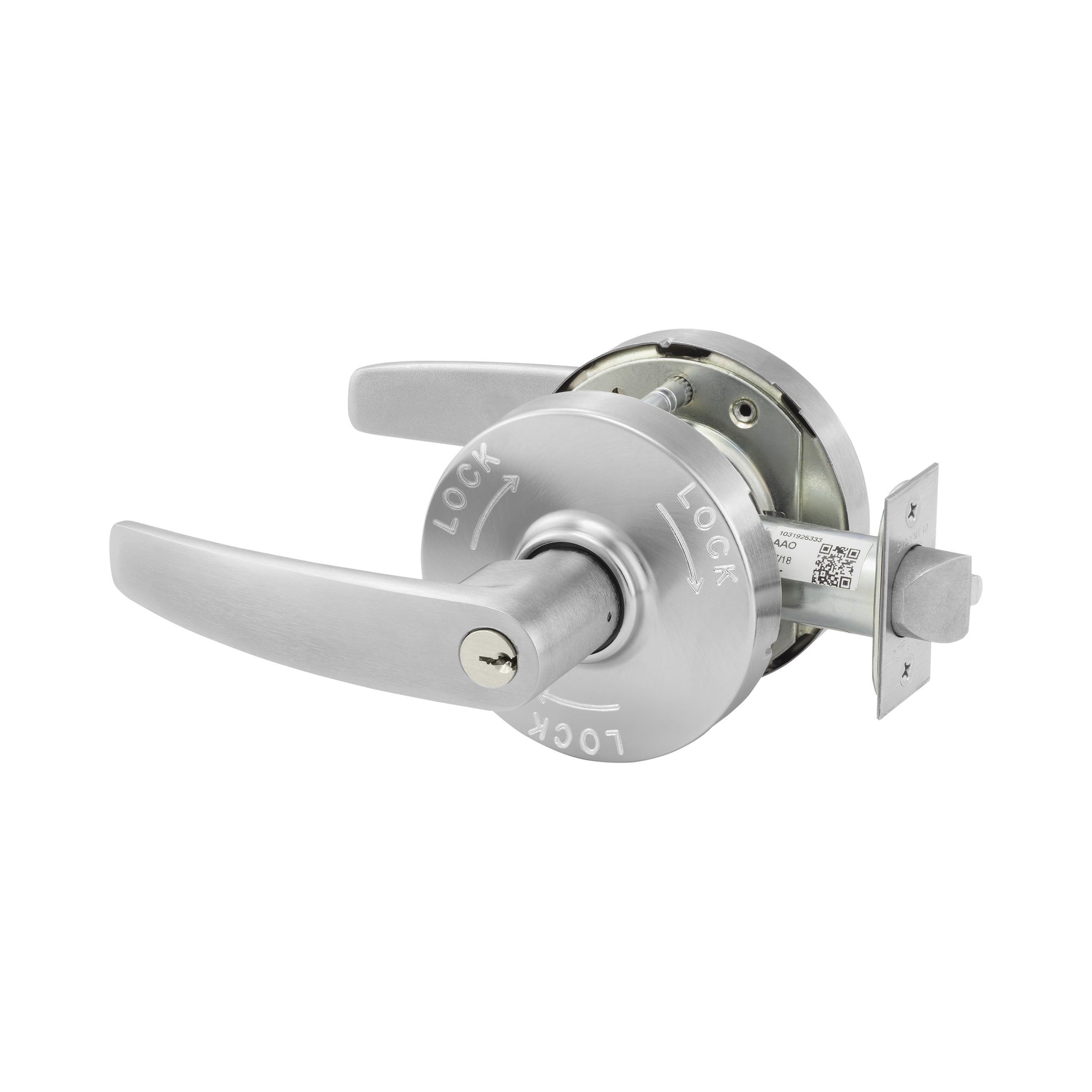

Sargent 10XG38LB26D Classroom Security Intruder (F110) Double Cylinder Cylindrical Lever Lock combines security and convenience with its Grade 1 performance. Designed for educational and commercial environments, this lockset features a B Lever and L Rose, finished in a sleek satin chrome that enhances any door aesthetic. The LA keyway and quick installation capability-requiring just a minute-make it an efficient choice for retrofit applications. With a cycle test that exceeds ANSI/BHMA A156 2 Grade 1 standards, this lock offers robust reliability. It accommodates a variety of door preparations, thanks to adaptable through-bolt positioning, ensuring a secure fit for doors ranging from 1-3/4" to 2" thick. The 2-1/8" crossbore size and 2-3/4" backset are designed to meet the demands of modern building specifications. The Sargent 10XG38LB26D also features a reversible handing for versatile installation options, along with a solid feel and precise lever action that enhances usability. Complete with a 7-year limited warranty, this lockset is UL and cUL listed with a 3-hour fire rating, ensuring safety and peace of mind for any facility.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Alternate Codes: 10XG38-LB-26D, 10XG38LB26D
Ansi: F110
Ansi Function: F110 - Classroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Cylinders Present: Double Cylinder
Design: B Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Security Double Cylinder
Function Family: Classroom
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: LA Keyway
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: B Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom Security Intruder
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
