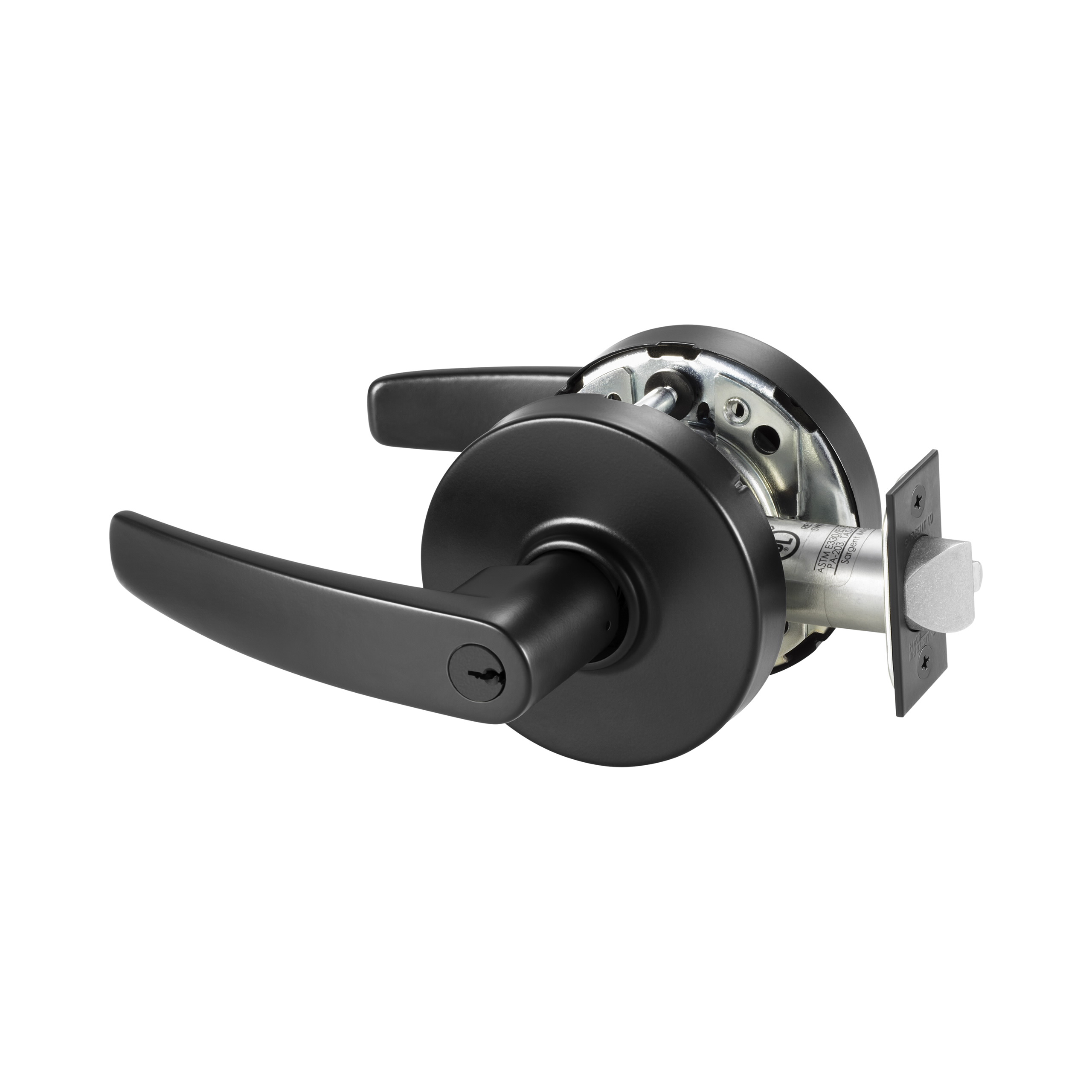

Sargent 10XG38LBBSP Classroom Security Intruder (F110) Double Cylinder Cylindrical Lever Lock Grade 1 combines robust security and user-friendly design. This mechanical lockset features a B Lever and L Rose configuration, finished in a sleek Black Suede Powder Coat that enhances both durability and aesthetics. Engineered to accommodate a variety of door preparations, this lockset boasts adaptable through-bolt positioning, making installation a breeze-taking less than one minute to complete. Its 2-3/4" backset and 2-1/8" crossbore size ensure compatibility with standard doors ranging from 1-3/4" to 2" thick. The solid feel and precise lever action provide confidence in security, while the lock exceeds ANSI/BHMA A156 2 Grade 1 cycle test requirements, ensuring long-lasting performance. Designed for classroom security, the double cylinder functionality allows for controlled access, making it ideal for educational facilities. The LA Keyway and 6-pin configuration enhance its security features, while the UL and cUL 3 Hour Fire Rating adds an extra layer of safety. Backed by a 7-Year Limited Warranty, the Sargent 10XG38LBBSP is a reliable choice for those seeking a high-quality locking solution.
Classroom Security Intruder (F110) Double Cylinder Cylindrical Lever Lock Grade 1 with B Lever and L Rose with LA Keyway KD and ASA Strike Black Suede Powder Coat Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Design: B Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Black Suede Powder Coat
Finish Code: BSP
Finish Description: Black Suede
Fire Rated: 3 Hours {A}
Function: Classroom Security Double Cylinder
Grade: Grade 1
Hazardous Material: NO
Keyway: LA Keyway
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
