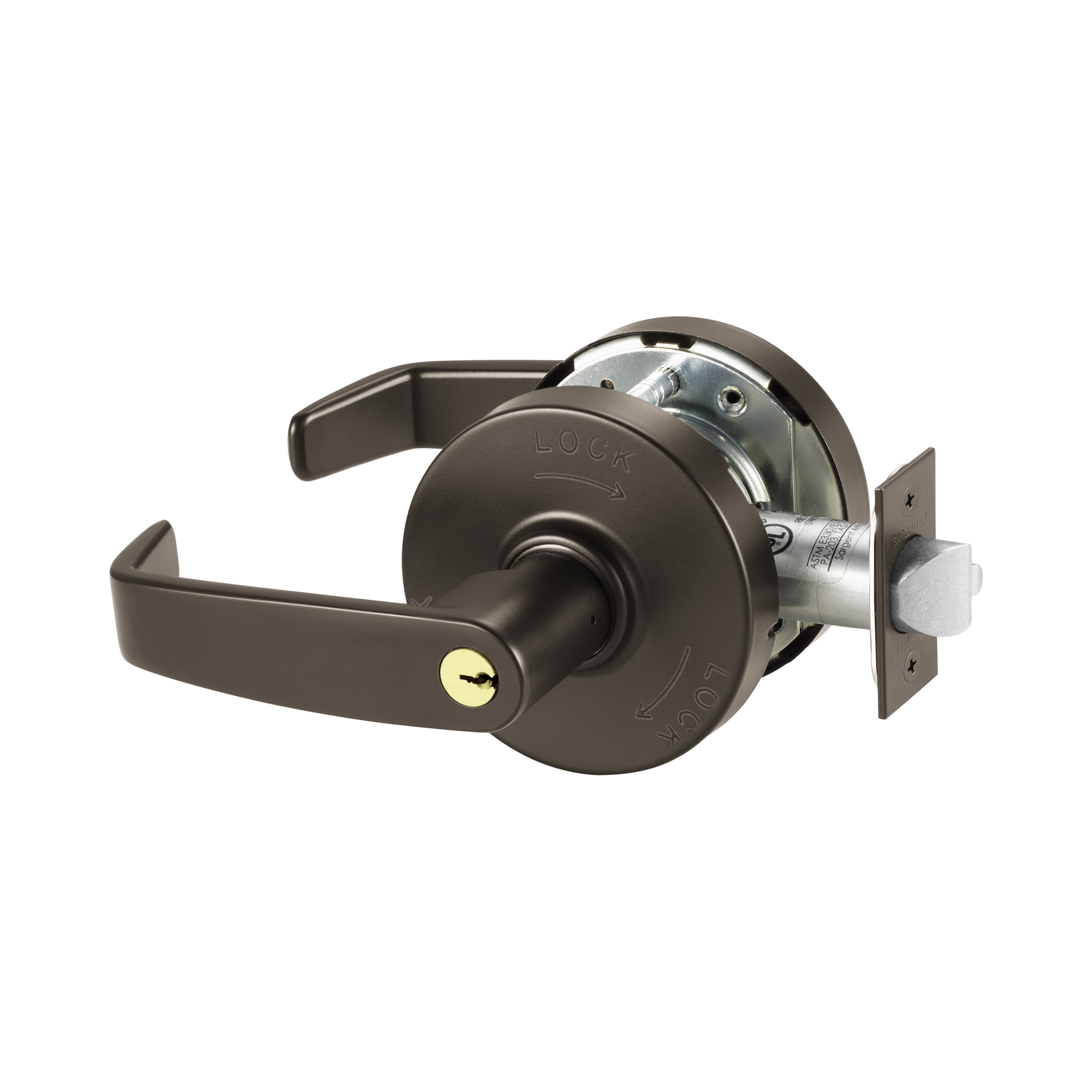

Sargent 10XG38 LL 10BE F110 Classroom Security Double Cylinder Lever Lock, Grade 1, Dark Bronze
Images may not represent actual product and finish

Sargent 10XG38 LL 10BE F110 Classroom Security Double Cylinder Lever Lock, Grade 1, Dark Bronze

Your Price: $688.17
Retail Price:$1,262.0000
Your Savings:$573.83(45%)
SARGENT 10XG38LL10BE Classroom Security Lock: Durable double cylinder lever lock with dark bronze finish, ideal for high-security applications.
Part Number : SAR_10XG38LL10BE
Availability: 0 Special order - ships in 5-10 business days
Sargent 10XG38 LL 10BE F110 Classroom Security Double Cylinder Lever Lock, Grade 1, Dark Bronze

Sargent 10XG38LL10BE Classroom Security Intruder (F110) Double Cylinder Cylindrical Lever Lock offers robust security solutions tailored for educational and commercial environments. Designed with a Grade 1 rating, this lockset provides exceptional resistance to forced entry. It withstands over 3,100 in-lb of locked lever torque, significantly surpassing ANSI/BHMA A156.2 standards. The lock's durability is further enhanced by its ability to endure 1,600 lbs of offset lever pull and maintain latch retraction under a 100 lb preload, ensuring reliable operation even in warped doors. The Sargent 10XG38LL10BE features a striking dark bronze finish (US10BE) that adds a sophisticated touch while offering longevity. With a reversible handing, it easily adapts to various door configurations. The lock is designed for doors ranging from 1-3/4" to 2" thick and includes a 2-3/4" backset, making it compatible with a wide range of installations. The LA keyway and 6-pin configuration provide enhanced security, while the 7-year limited warranty underscores Sargent's commitment to quality. In addition, this lock meets UL and cUL fire rating standards, ensuring safety in emergency situations. The Sargent 10XG38LL10BE is an ideal choice for environments that prioritize security and durability.

Classroom Security Intruder (F110) Double Cylinder Cylindrical Lever Lock Grade 1 with L Lever and L Rose with LA Keyway KD and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.


  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
  • Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)

Attributes

Backset: 2-3/4" Backset

Category: Mechanical Commercial Locksets

Country of Origin: Usa

Crossbore Size: 2-1/8" Bore

Design: L Lever

Dimension: 4-1/2" Lever with 2-15/16" Projection, and 3-1/2" Rose

Door Range: 1-3/4" to 2"

Door Thickness: 1-3/4" to 2"

Finish: Dark Bronze

Finish Code: US10BE

Finish Description: Dark Oxidized Bronze

Fire Rated: 3 Hours {A}

Function: Classroom Security Double Cylinder

Grade: Grade 1

Handing: Reversible

Hazardous Material: NO

Keyway: LA Keyway

Latch Faceplate Dimension: 1-1/8" x 2-1/4"

Lever Knob Design: L Lever

Limited Warranty: 10 Year Limited Warranty

Manufacturer Warranty: 7 Year Limited Warranty

Material: Zinc

No Of Inners: 1

No Of Pins: 6 Pin Keyway

Order_ Qty: 1

Rose Escutcheon Design: L Rose

Series: 10X Line Series

Strike: ASA Strike

Strike Dimension: 4-7/8" with 1-1/4" Lip

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing Type: UL and cUL 3 Hour Fire Rating
