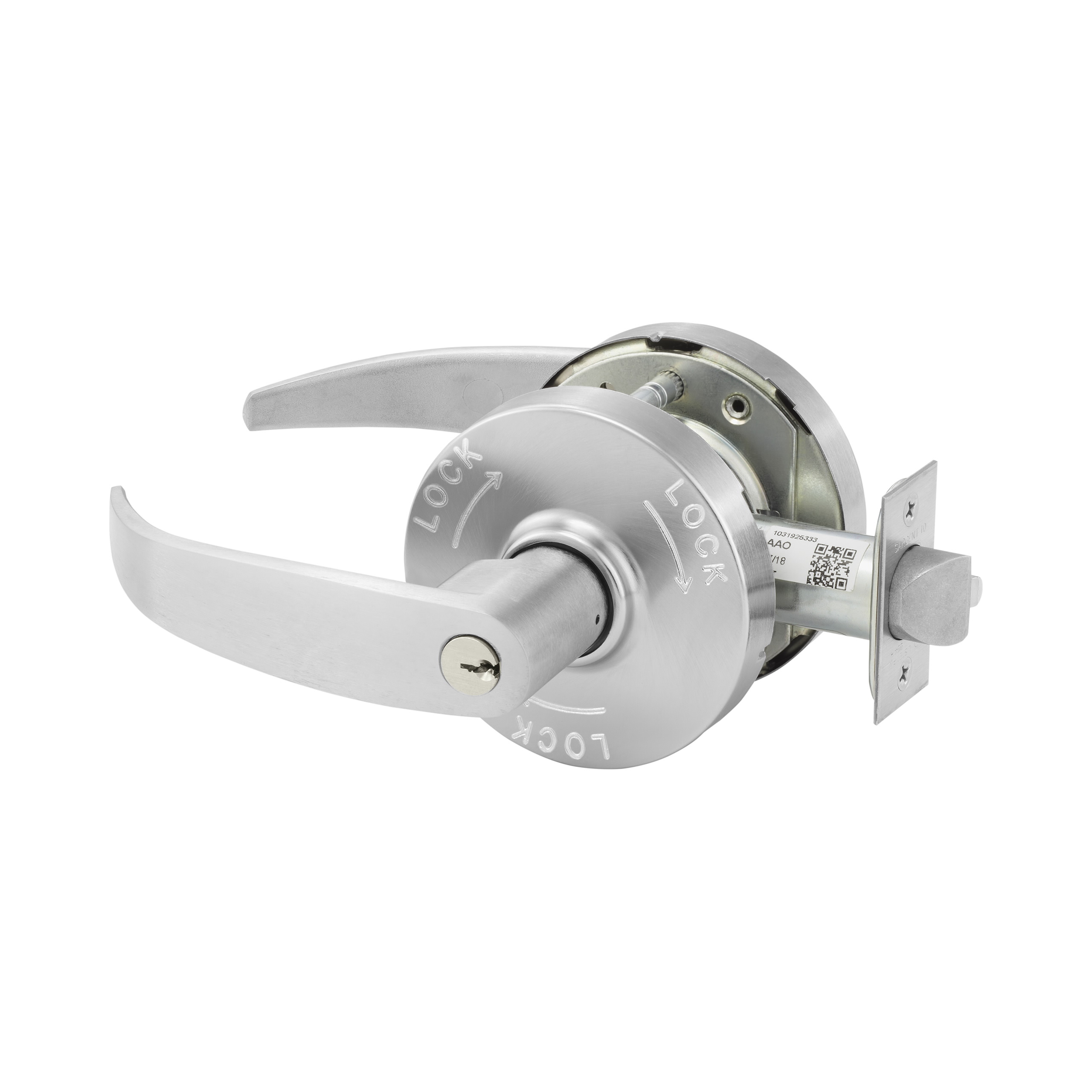

Sargent 10XG38LP26D Classroom Security Intruder (F110) Double Cylinder Cylindrical Lever Lock Grade 1 with P Lever and L Rose offers a reliable solution for enhancing security in educational facilities and other commercial environments. Designed for versatility, it fits a range of door preparations thanks to its adaptable through-bolt positioning, making installation a breeze-typically completed in one minute or less. This lockset exceeds ANSI/BHMA A156 2 Grade 1 standards, ensuring durability and performance in high-traffic areas. The solid feel and precise lever action provide users with a dependable locking mechanism, while the reversible handing accommodates various door configurations. With a satin chrome finish (US26D), this lock not only delivers security but also complements modern architectural aesthetics. Key specifications include a 2-3/4" backset, a 2-1/8" crossbore size, and compatibility with doors ranging from 1-3/4" to 2" thick. The LA keyway and 6-pin design enhance security, while the ASA strike (4-7/8" with 1-1/4" lip) ensures a seamless fit. Backed by a 7-year limited warranty, the Sargent 10XG38LP26D is a trusted choice for those prioritizing safety and functionality in their locking systems.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Alternate Codes: 10XG38-LP-26D, 10XG38LP26D
Ansi: F110
Ansi Function: F110 - Classroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Cylinders Present: Double Cylinder
Design: P Lever
Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Security Double Cylinder
Function Family: Classroom
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: LA Keyway
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: P Lever
Lever Knob Design Name: P
Leverknob Design: P Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom Security Intruder
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
