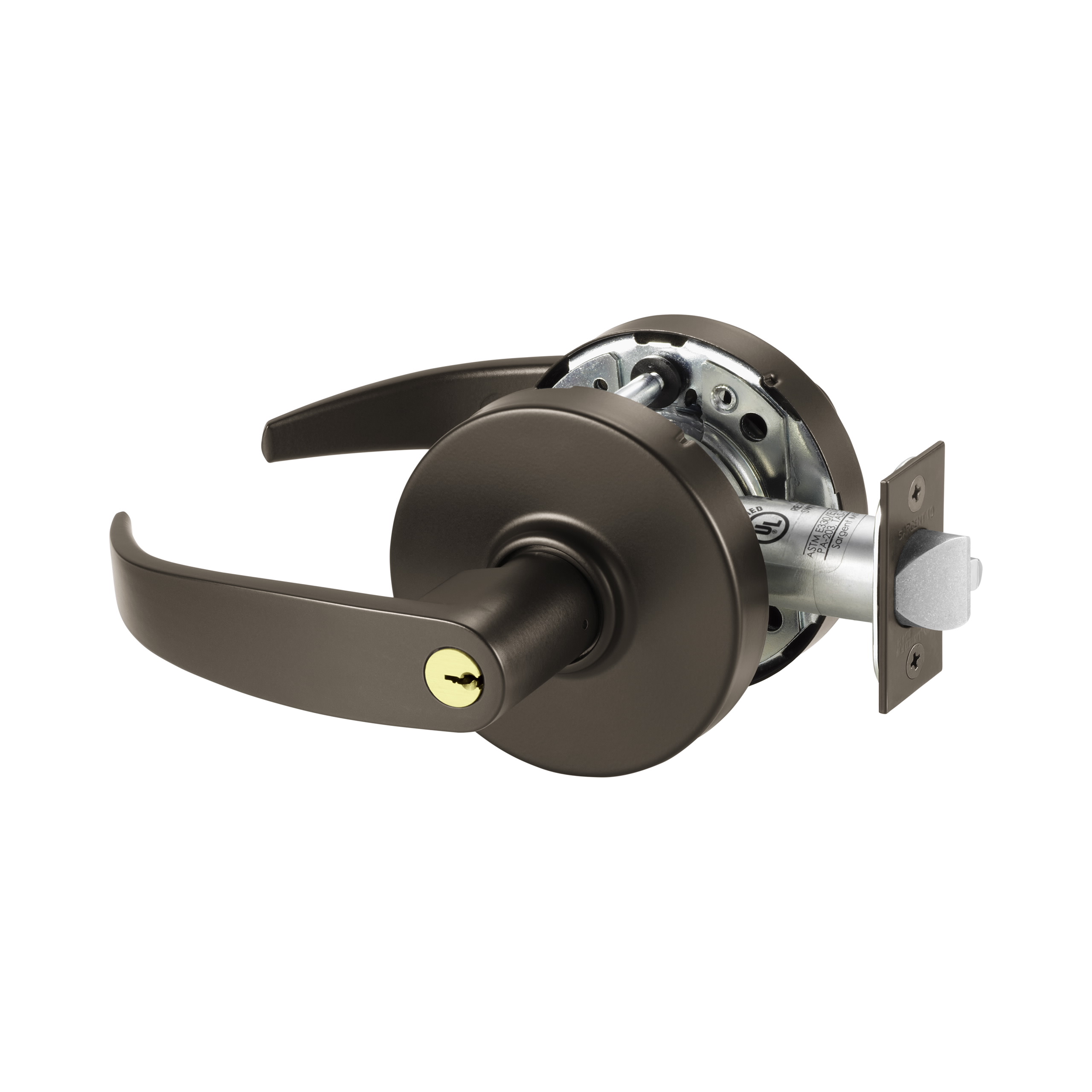

Sargent 10XG54LP10BE Dormitory Cylindrical Lock Grade 1 features a P Lever and L Rose design, making it an ideal choice for dormitory applications. Crafted with durability in mind, this lockset is UL Listed for 3-hour doors, ensuring robust security. The dark bronze finish not only offers a sleek appearance but also enhances longevity, resisting wear over time. Designed to accommodate doors ranging from 1-3/4" to 2" thick, the lockset has a 2-3/4" backset and a crossbore size of 2-1/8". With a reversible handing feature, installation is straightforward and adaptable to various door configurations. The ASA strike, measuring 4-7/8" with a 1-1/4" lip, complements the lock’s sturdy construction, while the latch faceplate dimensions of 1-1/8" x 2-1/4" provide a secure fit. This model is equipped with an LA keyway and includes a 6-pin key system, enhancing access control. The 5-1/16" lever, with a projection of 2-15/16", offers ease of use without sacrificing style. Backed by a 7-year limited warranty, the Sargent 10XG54LP10BE is a reliable choice for any commercial setting.
Dormitory Cylindrical Lock Grade 1 with P Lever and L Rose and ASA Strike and LA Keyway Dark Bronze Finish
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Design: P Lever
Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Dark Bronze
Finish Code: 10BE
Finish Description: Dark Oxidized Bronze
Fire Rated: 3 Hours {A}
Function: Dormitory
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Keyway: LA Keyway
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: P Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed 3 Hour Door
