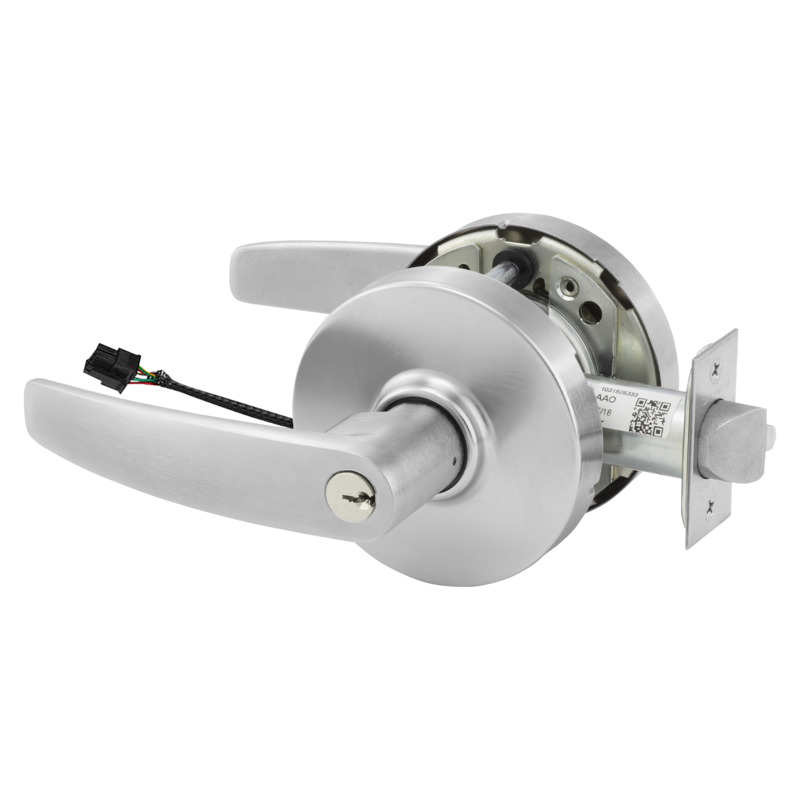

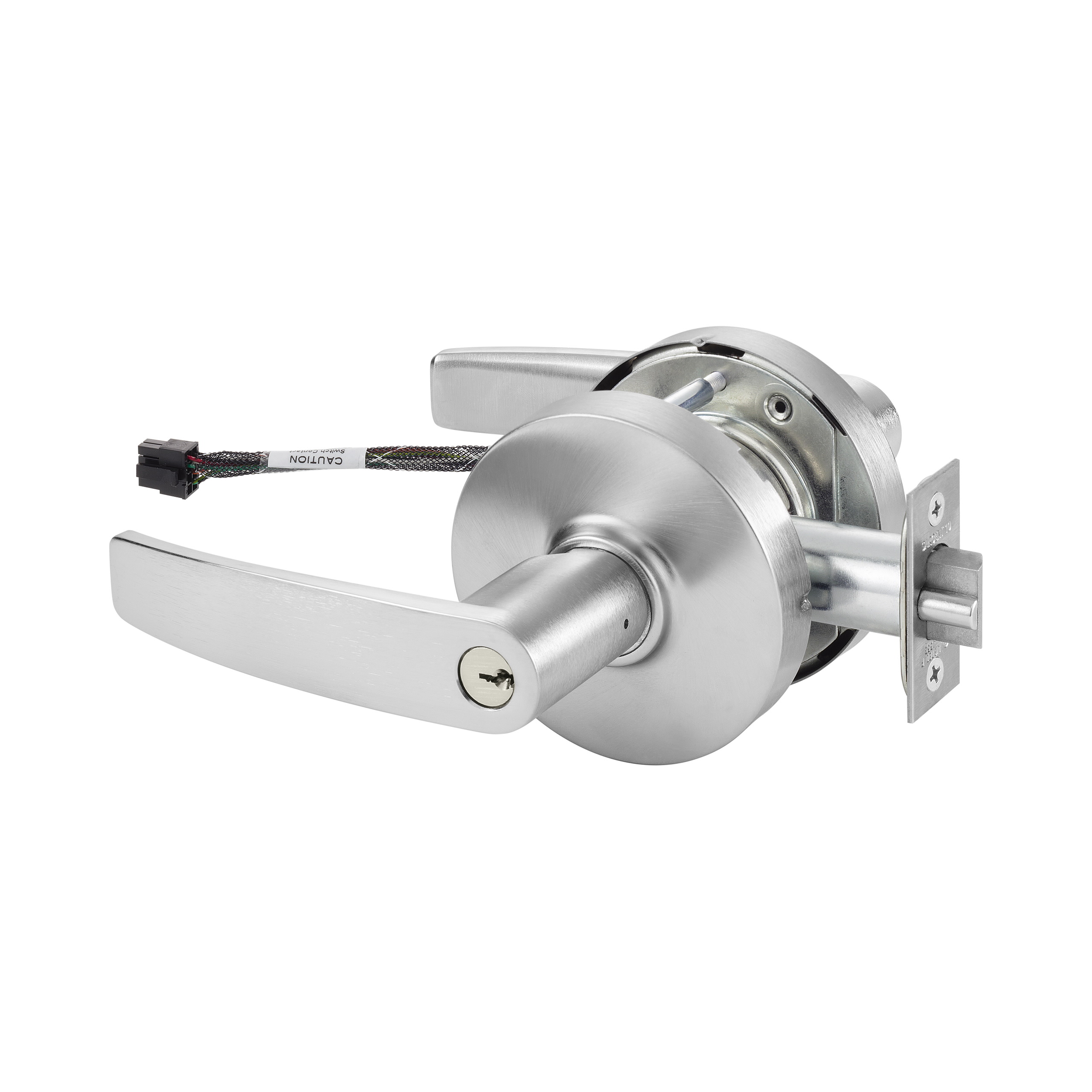

Sargent 10XG70LB26D Electromechanical Field Selectable Fail Safe / Fail Secure lockset offers unparalleled security and versatility for commercial applications. Engineered with a robust electromechanical design, this Grade 1 cylindrical lever lock is built to withstand the rigors of daily use, featuring a B lever and L rose with an LA keyway. The lockset is capable of withstanding up to 1,600 lbs of offset lever pull, far exceeding ANSI/BHMA A156.2 requirements, ensuring reliable performance even in high-traffic environments. Designed for doors ranging from 1-3/4" to 2" thick, the lockset accommodates a 2-3/4" backset and features a 2-1/8" bore crosshole. Its satin chrome finish not only enhances aesthetics but also provides long-lasting durability. With a UL cycle test rating of 20 million cycles, this product ensures longevity and reliability. The Sargent 10XG70LB26D includes an ASA strike with a dimension of 4-7/8" and 1-1/4" lip, making installation straightforward. This model is also backed by a 7-year limited warranty, affirming its quality and craftsmanship. Ideal for various settings, including healthcare, educational, and industrial facilities, this lockset is a key component in maintaining security and access control.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Amp Draw: 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Backset: 2-3/4" Backset
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: 6-Pin Cylinder
Design: B Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Electromechanical Fail Safe
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Keyway: LA Keyway
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: B Lever
Leverknob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Operating Voltage: 12 or 24 VAC/DC
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Number: Oct-00
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Electric Cylindrical Lock
Type: Electric Locks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
