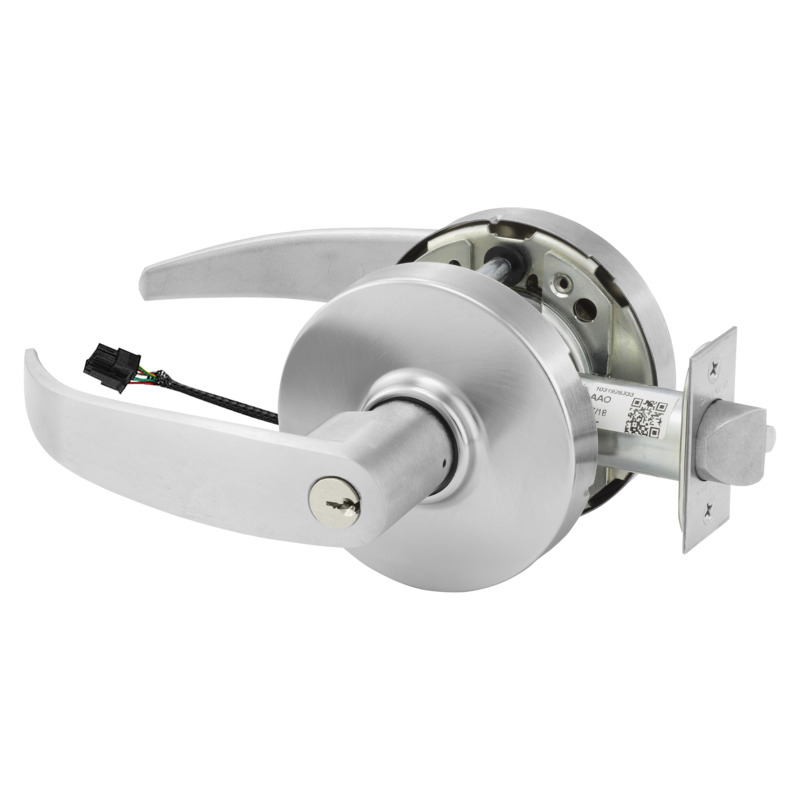

Sargent 10XG70LP26D Electromechanical Field Selectable Fail Safe / Fail Secure 12 / 24 Volt DC Cylindrical Lever Lock is designed for superior security and functionality in various applications, including commercial, healthcare, and educational environments. This Grade 1 lockset features a P lever and L rose, available in a sleek satin chrome finish, ensuring both durability and aesthetic appeal. Engineered to withstand extreme conditions, this lock can endure a 1,600 lbs offset lever pull, exceeding ANSI/BHMA A156.2 requirements. It guarantees latch retraction under a 100 lb preload, making it reliable even for warped doors. With a UL Cycle rating that exceeds 20 million cycles, you can trust its long-lasting performance. The Sargent 10XG70LP26D is equipped with a 2-3/4" backset and a crossbore size of 2-1/8", making it suitable for doors ranging from 1-3/4" to 2" thick. The LA keyway and ASA strike enhance security, while the 6-pin configuration allows for customized keying needs. With a 7-year limited warranty, this electromechanical lockset is a robust choice for enhancing building safety and accessibility, offering peace of mind for both building professionals and homeowners alike.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Amp Draw: 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Backset: 2-3/4" Backset
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: 6-Pin Cylinder
Design: P Lever
Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Electromechanical Fail Safe
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Keyway: LA Keyway
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: P Lever
Leverknob Design: P Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Operating Voltage: 12 or 24 VAC/DC
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Number: Oct-00
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Electric Cylindrical Lock
Type: Electric Locks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
