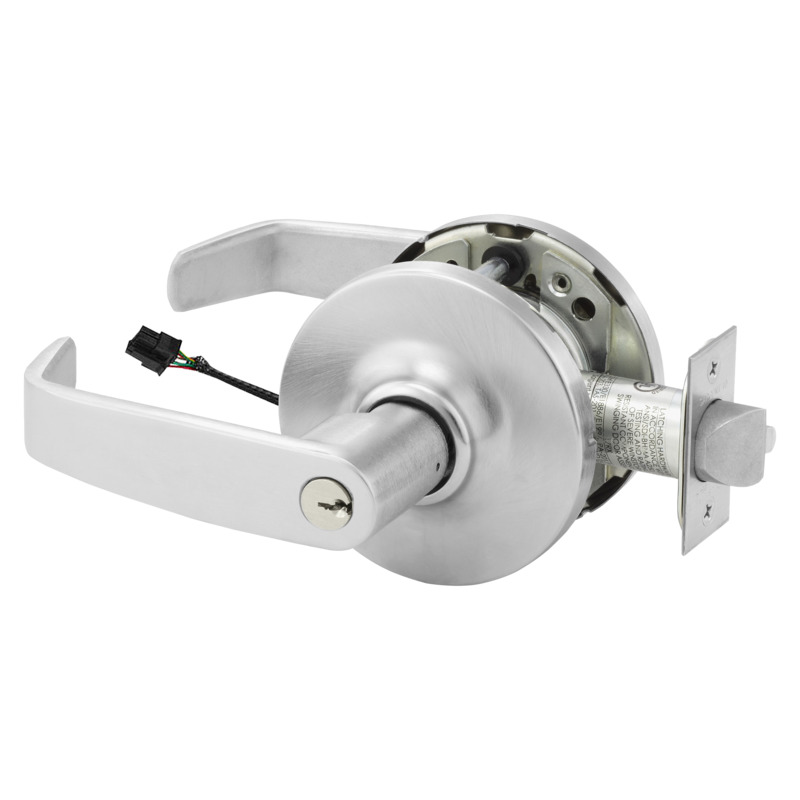

Sargent 10XG71 GL 26D Grade 1 Electric Lock, Fail SecureSargent 10XG71 GL 26D Grade 1 Elec, Fail Secure is a robust, Grade 1 electrified cylindrical lock designed for high-traffic and high-abuse environments. This fail secure locking solution features an L lever and G rose design with a resilient satin chrome finish that not only enhances durability but also complements modern aesthetics. With a 6-pin cylinder and deadlatch mechanism, this lock guarantees reliable security while exceeding ANSI/BHMA Grade 1 performance standards by up to 20 times. Engineered for commercial applications, the lock accommodates door thicknesses between 1-3/4" and 2", making it versatile for various installations. Its non-handed design simplifies installation, while the 250 mA draw at 12VAC/VDC or 150mA at 24VAC/VDC ensures compatibility with various access control systems. The lock is UL Listed under ANSI A156.2 (2017), A156.41, Series 4000, providing peace of mind with its proven reliability. Additionally, the Sargent 10XG71 GL 26D is fire rated for 3 hours and comes with a 10-year limited warranty, underscoring its quality and performance. Elevate your security with this durable, efficient, and stylish locking solution that stands up to the demands of any commercial setting.
Grade 1 Elec, Fail Secure
Grade 1 Electrified Cylindrical Lock, Fail Secure, L Lever, G Rose, 6-Pin Cylinder, Deadlatch, Satin Chrome Finish, Non-Handed
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Grade 1 electrified locksets that exceed standards for durability, strength and performance by as much as 20 times.
Attributes
Amp Draw: 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: 6-Pin Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 71-Electromechanical (Fail Secure)
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Lever Knob: Lever
Leverknob Design: L Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Operating Voltage: 12 or 24 VAC/DC
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Roseescutcheon Design: G Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X-Line Electrified Lever Locks
Ship Weight: 4 lbs.
Std Latch Number: Oct-00
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Subtype: Electric Cylindrical Lock
Type: Electric Locks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
