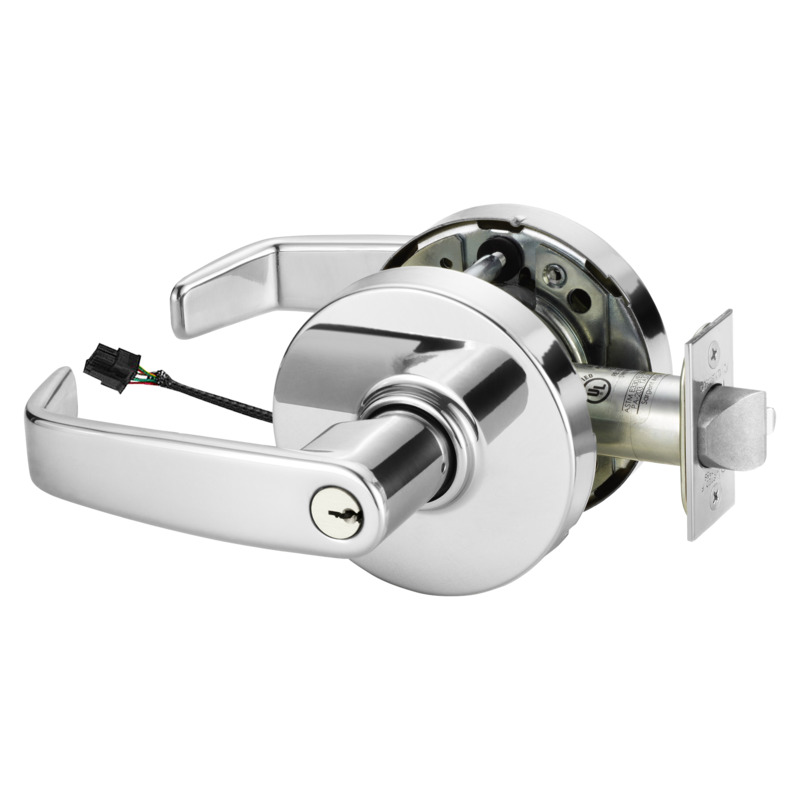

Sargent 10XG71 LL 26 Grade 1 Electric Lock, Fail SecureSargent 10XG71 LL 26 Grade 1 Elec, Fail Secure is a robust electrified cylindrical lock designed for high-traffic and high-abuse environments. Exceeding ANSI/BHMA Grade 1 performance standards by up to 20 times, this lock ensures exceptional durability and reliability throughout its lifecycle. The fail-secure functionality offers a secure solution that maintains safety even during power failures. Featuring a sleek bright chrome finish, this lock is not only functional but also adds a polished look to any commercial setting. Its non-handed design allows for versatile installation, accommodating door thicknesses ranging from 1-3/4" to 2". The 6-pin cylinder provides enhanced security, while the deadlatch ensures that the door remains secure when closed. With an operating voltage of 12 or 24 VAC/VDC and an amp draw of 250 mA at 12 VAC/VDC, this lock is easy to integrate into existing access control systems. It is UL listed and carries a 10-year limited warranty, underscoring Sargent's commitment to quality and customer satisfaction. The 10XG71 is ideal for facilities that demand both security and performance, making it a trusted choice for building professionals and knowledgeable homeowners alike.
Grade 1 Elec, Fail Secure
Grade 1 Electrified Cylindrical Lock, Fail Secure, L Lever, L Rose, 6-Pin Cylinder, Deadlatch, Bright Chrome Finish, Non-Handed
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Grade 1 electrified locksets that exceed standards for durability, strength and performance by as much as 20 times.
Attributes
Amp Draw: 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: 6-Pin Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 71-Electromechanical (Fail Secure)
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Lever Knob: Lever
Leverknob Design: L Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Operating Voltage: 12 or 24 VAC/DC
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X-Line Electrified Lever Locks
Ship Weight: 4 lbs.
Std Latch Number: Oct-00
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Subtype: Electric Cylindrical Lock
Type: Electric Locks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
