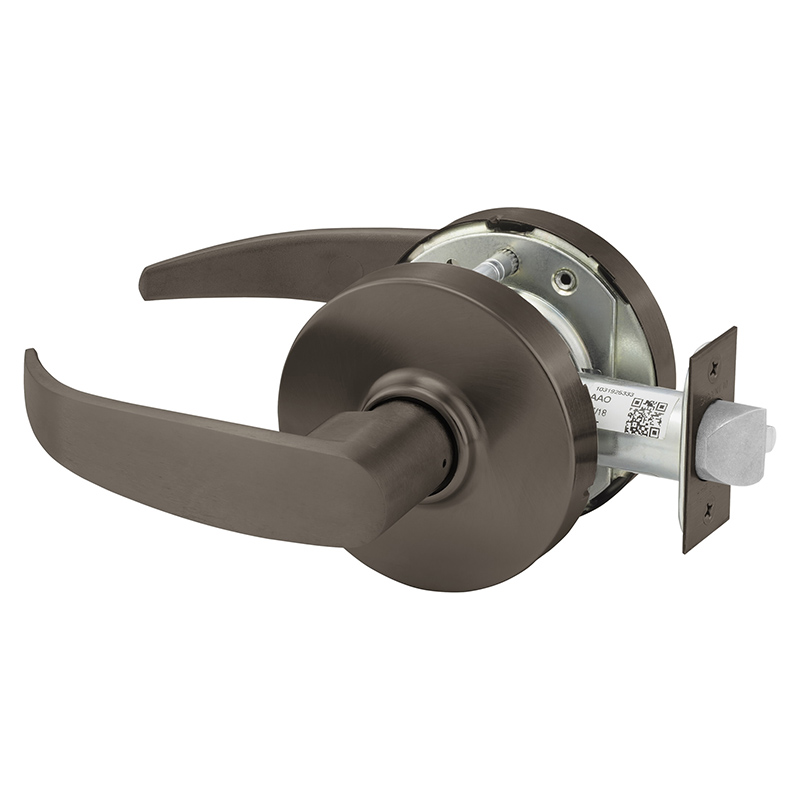

Sargent 10XU15 LP 10B Grade 1 Passage Latch offers exceptional durability and performance, making it an ideal choice for high-traffic and high-abuse environments. This Grade 1 cylindrical lockset not only meets but exceeds ANSI/BHMA standards for strength and reliability by as much as 20 times. Designed with a P Lever and L Rose, the lock features a striking oil-rubbed bronze finish that complements various architectural styles. Engineered for versatility, the lock chassis supports all cylinder formats, allowing flexibility from fixed core to interchangeable core cylinders. Its latch retraction withstands a 100lb preload, ensuring operation even in warped doors. With a robust design that resists a minimum of 100 vertical impacts, it offers reliable protection against vandalism attempts. The independent return springs prevent lever sag, maintaining consistent operation, while the innovative push/turn button design ensures durability against excessive impacts. Suitable for doors with a thickness of 1-3/4" to 2", this non-keyed passage latch is perfect for commercial applications. With a 10-year limited warranty, the Sargent 10XU15 LP 10B is a dependable choice for professionals seeking long-lasting performance in door hardware.
Grade 1 Passage Cylindrical Lock, P Lever, L Rose, Non-Keyed, Oil-Rubbed Bronze Finish, Non-handed
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Grade 1 locksets that exceed standards for durability, strength and performance by as much as 20 times.
The Sargent 10X-Line series is engineered to secure and protect high-abuse, high-traffic spaces. Occupants enjoy consistent performance for the life of the product.
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 15-Passage
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design Name: P
Leverknob Design: P Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Passage
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X-Line Bored Lever Locks
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2022
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
