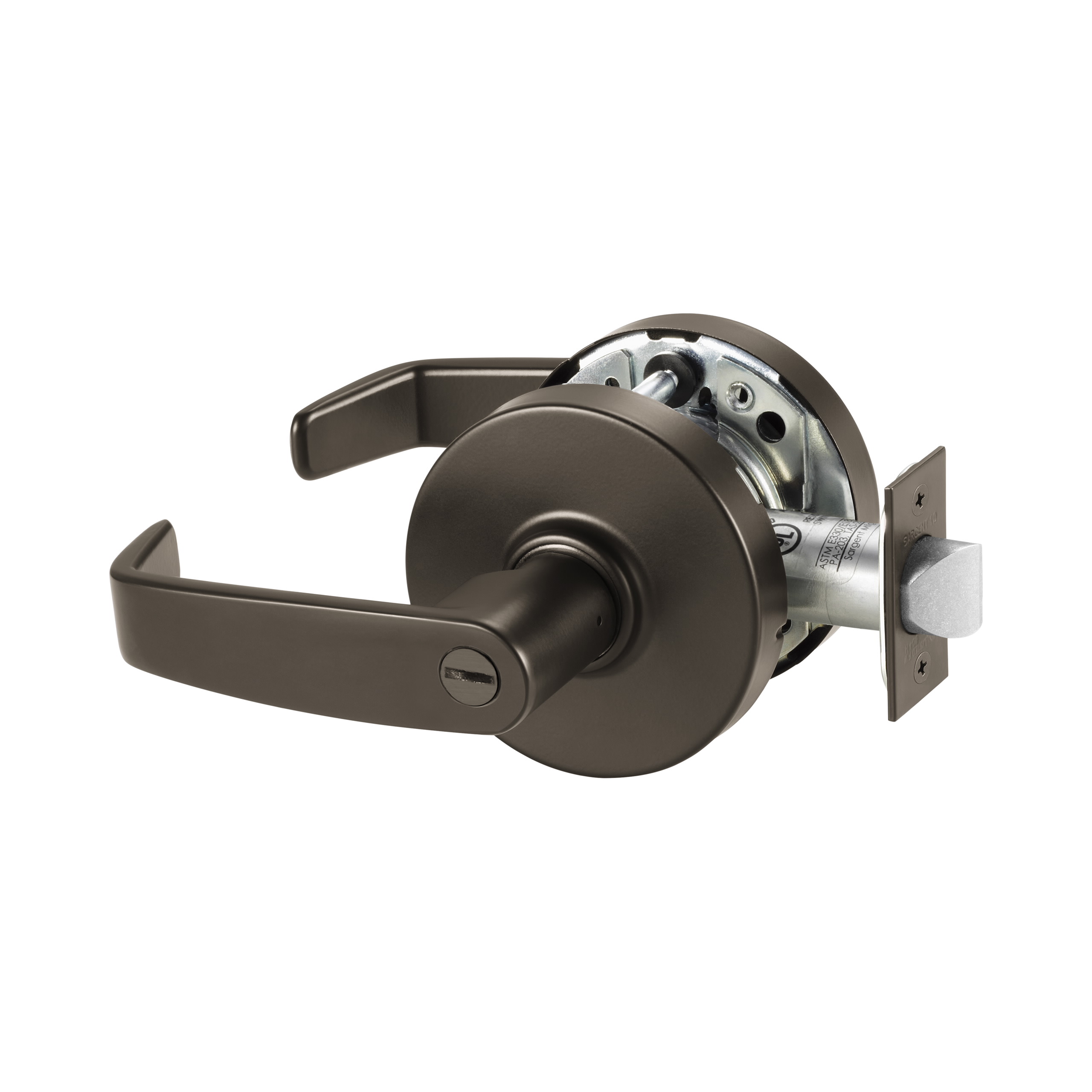

Sargent 10XU65 LL 10BE F76A Grade 1 Privacy Cylindrical Lever Lock, Dark Bronze Finish

Sargent 10XU65LL10BE Privacy (F76A) Cylindrical Lever Lock offers exceptional security and durability, making it an ideal choice for various commercial and institutional applications. With a robust dark bronze finish, this Grade 1 lockset not only enhances aesthetics but also ensures long-lasting performance. Engineered to withstand demanding conditions, the Sargent lock prevents unauthorized entry while allowing egress. It boasts an impressive ability to handle over 3,100 in-lb of locked lever torque-2.6 times the ANSI/BHMA A156.2 requirements-and with a 1,600 lbs offset lever pull, it continues to restrict entry even under pressure. The latch retraction mechanism operates smoothly under a 100 lb preload, ensuring reliable performance on warped doors or those with latch binding. Designed for 1-3/4" to 2" thick doors, the Sargent lock features a 4-1/2" lever with a 2-15/16" projection and a 3-1/2" L rose. It includes an ASA strike with dimensions of 4-7/8" and a 1-1/4" lip. With a UL listing for a 3-hour fire rating and a limited 7-year warranty, this lockset combines safety and style for any building project. Ideal for privacy applications, it is reversible for flexible installation.

Privacy (F76A) Cylindrical Lever Lock Grade 1 with L Lever and L Rose with ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
