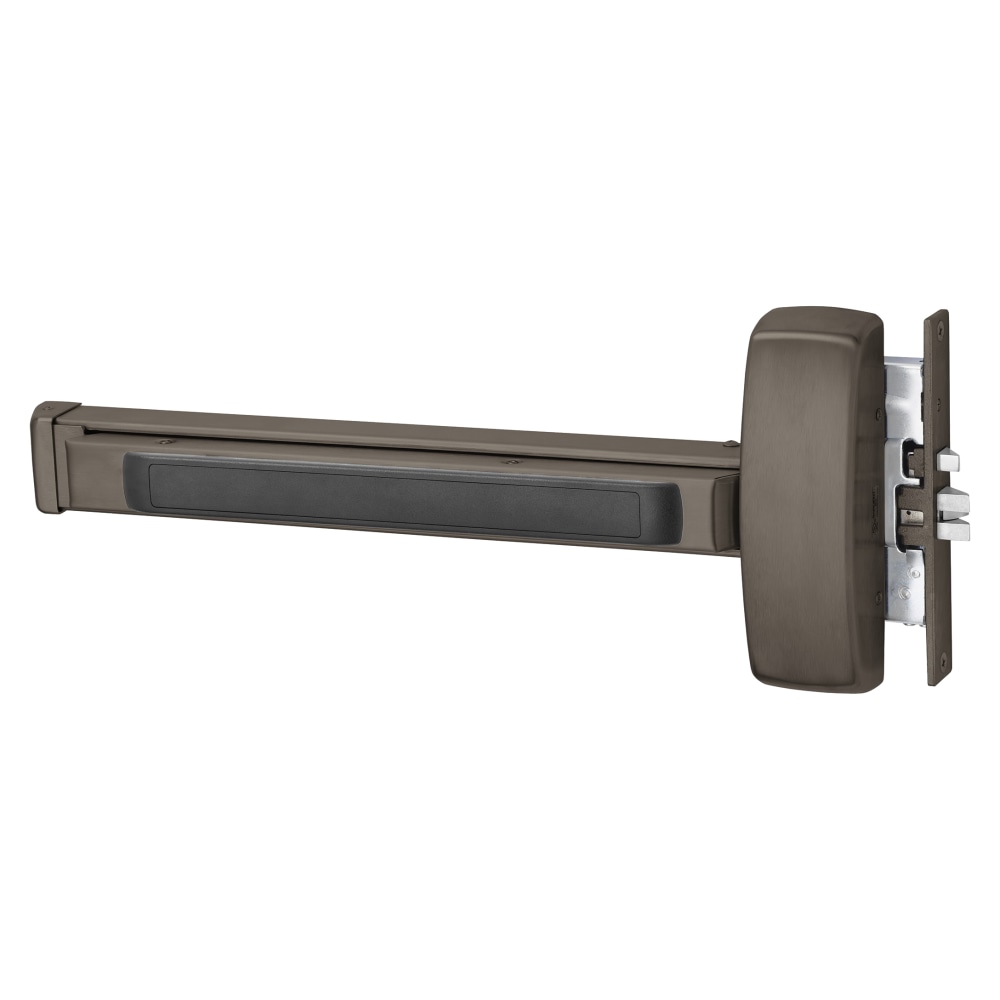

Sargent 12-8904E ETL LHR 10B Mortise Exit Device, NL Function

Sargent 12-8904E ETL LHR 10B Mortise Exit Device, NL Function, offers an exceptional blend of security and functionality ideal for commercial environments. This Grade 1 mortise exit bar features a wide stile pushpad design, ensuring ease of use in high-traffic areas. With a 32" fire-rated device and a night latch function, it provides reliable access and safety in emergency situations. Engineered for single door applications, the 8900 Series exit device boasts concealed single point guarded latching for enhanced security on standard width stile wood and metal doors. It accommodates doors 1-3/4" to 2-1/4" thick and is designed for a minimum stile size of 4-1/2". The dark oxidized satin bronze oil-rubbed finish not only elevates aesthetic appeal but also ensures durability. This device meets ANSI/BHMA A156.3 standards, confirming its robust cycle and strength capabilities. Its modular construction minimizes maintenance, making it a dependable choice for any facility. With options for delayed egress, alarmed exit, and electric latch retraction, the Sargent 12-8904E is a versatile solution for modern building security needs. Backed by a 5-year limited warranty, this exit device is an investment in safety and reliability.

Mortise Exit Dev, NL Function

Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 32" Fire-Rated Device, Night Latch Function, L Lever with Escutcheon, Less Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8900 Series is for single door applications

8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door;Over 1-3/4" specify thickness and order as a 31- option.  4-1/2" (114mm) minimum stile
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 80 Series Exit Device Environmental Product Declaration
• 816 Cylinder Dogging Kit Parts List
• 8300 Series Narrow Mortise Exit Devices Cut Sheet
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• AL- Alarmed Exit Device Installation Instructions
• Anti Vandal Pull Trim Instructions - 8800, 8900, PE80
• Basic Fundamentals - Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Windstorm Solutions - Exit Devices
