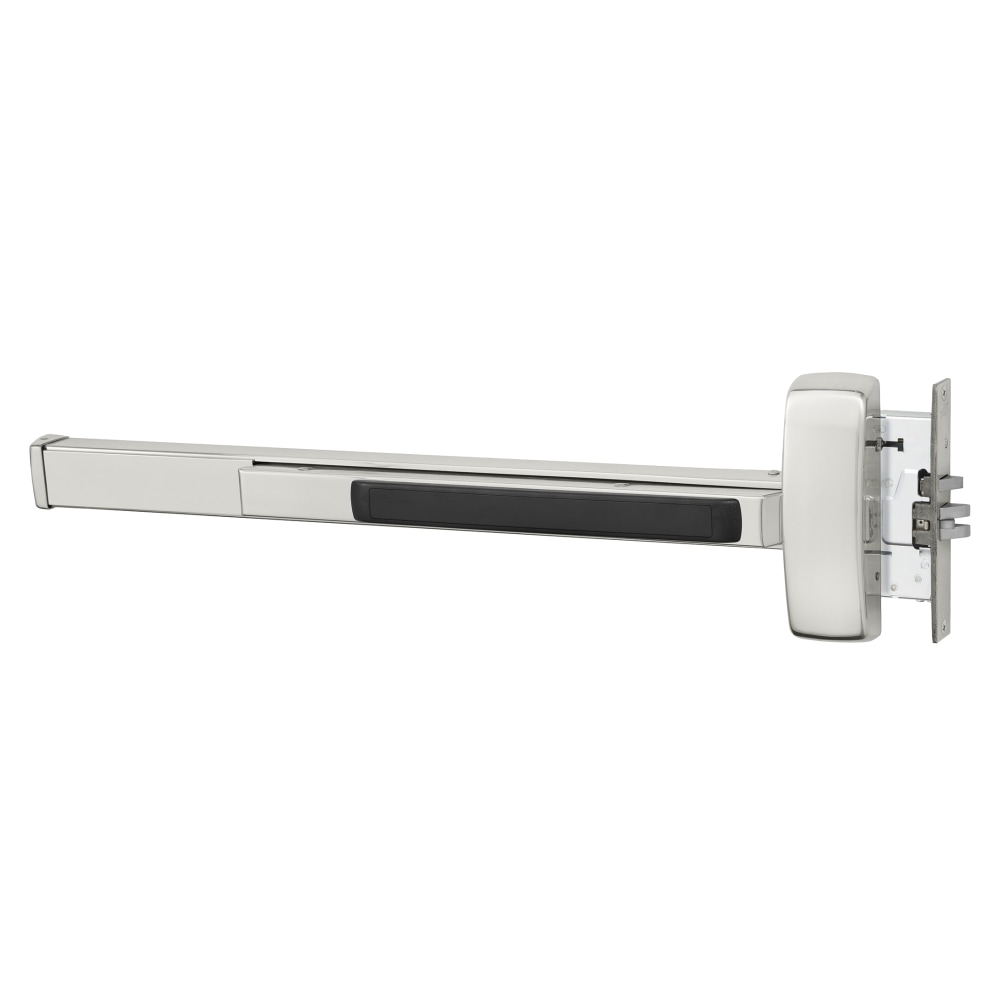

Sargent 12-8916J LHR 32 Double Classroom Instruction Mortise Exit Device

Sargent 12-8916J LHR 32 Mort Exit Device is a Grade 1 Mortise exit bar specifically designed for double classroom applications. This robust device features a wide stile pushpad and measures 42 inches, making it an ideal choice for fire-rated environments. Engineered for durability, the Sargent 80 Series easily surpasses ANSI/BHMA Grade 1 standards for cycle and strength, ensuring long-lasting performance in demanding settings. With a classroom security function and less dogging design, this exit device provides enhanced safety and security without compromising ease of use. Its bright stainless steel finish not only adds an aesthetically pleasing touch but also ensures corrosion resistance. The device is suitable for wood or metal doors that are 1-3/4 inches thick, accommodating a minimum stile width of 4-1/2 inches. Installation is straightforward, and the 8900 Series Mortise Lock Exit Device boasts concealed single-point guarded latching for added protection. The exit device is also fire-rated for up to 3 hours, making it compliant with stringent safety standards. With a limited 5-year warranty, the Sargent 12-8916J is a reliable choice for commercial settings seeking both functionality and security.

Mort Exit Dev, Dbl Classroom

Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 42" Fire-Rated Device, Classroom Security Function, Less Dogging, Bright Stainless Steel Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8900 Series is for single door applications

8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door;Over 1-3/4" specify thickness and order as a 31- option.  4-1/2" (114mm) minimum stile
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 80 Series Exit Device Environmental Product Declaration
• 816 Cylinder Dogging Kit Parts List
• 8300 Series Narrow Mortise Exit Devices Cut Sheet
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• AL- Alarmed Exit Device Installation Instructions
• Anti Vandal Pull Trim Instructions - 8800, 8900, PE80
• Basic Fundamentals - Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Windstorm Solutions - Exit Devices
