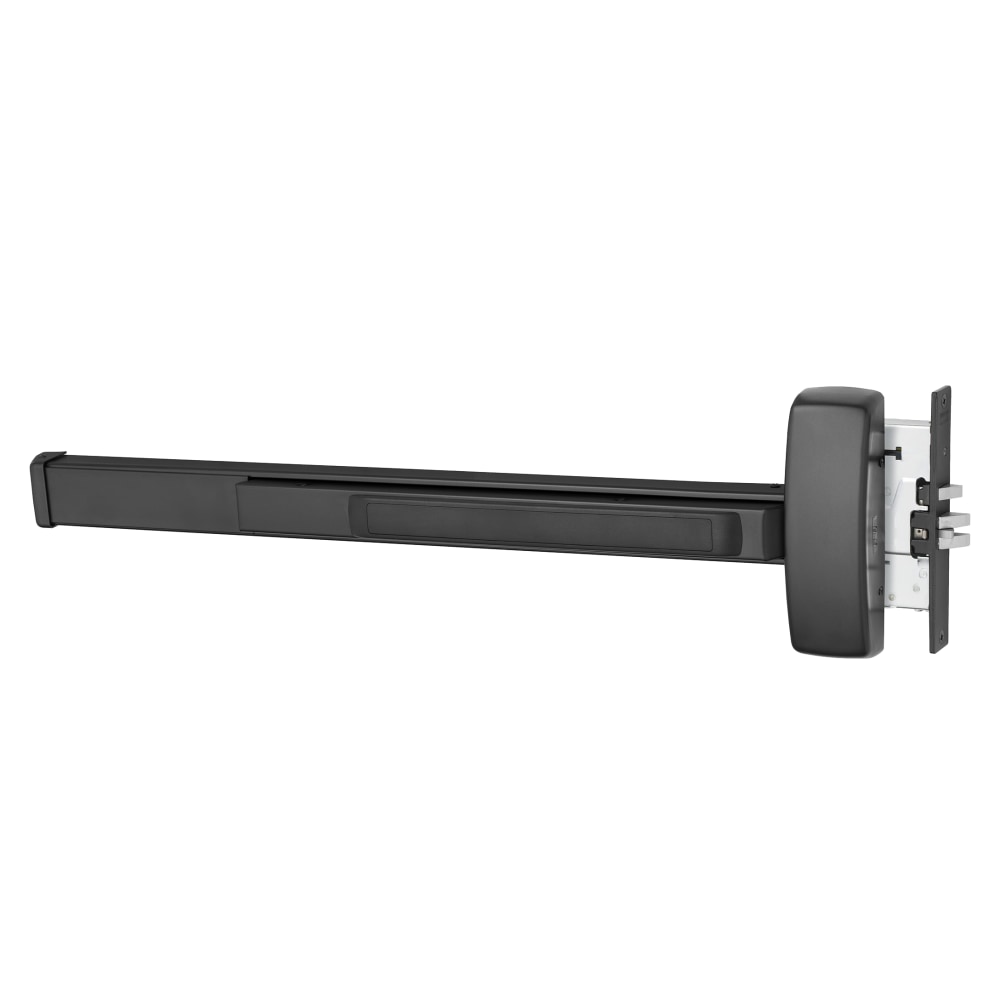

Sargent 12-8975F-24V ETJ RHR BSP Fail Safe Mortise Exit Device

Sargent 12-8975F-24V ETJ RHR BSP Mort Exit Device, Fail Safe offers an exceptional combination of security and reliability, making it an ideal choice for commercial environments. This Grade 1 Mortise Exit Bar features a wide stile pushpad and a 36" fire-rated design, ensuring compliance with stringent safety standards. The device is engineered to accommodate electrified trim functions, equipped with a J keyed electric lever for added convenience. Constructed with durability in mind, the Sargent 80 Series exit devices are designed to exceed ANSI/BHMA Grade 1 requirements for cycle and strength, ensuring maintenance-free operation over the building's lifespan. The device includes concealed single-point guarded latching, providing enhanced security for standard width stile applications on both wood and metal doors. With its fail-safe electric option, this exit device ensures safe egress during emergencies, while the sleek black suede powder coat finish adds a modern touch. It is suitable for doors ranging from 33" to 36" wide and is ADA compliant, ensuring accessibility for all users. Backed by a five-year limited warranty, the Sargent 12-8975F-24V ETJ RHR BSP is a robust solution for your exit device needs, combining functionality with peace of mind.

Mort Exit Device, Fail Safe

Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 36" Fire-Rated Device, Device to Accept Electrified Trim Function, J Keyed Electric Lever, Fail Safe, Less Dogging, Black Suede Powder Coat Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8900 Series is for single door applications

8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door;Over 1-3/4" specify thickness and order as a 31- option.  4-1/2" (114mm) minimum stile
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
