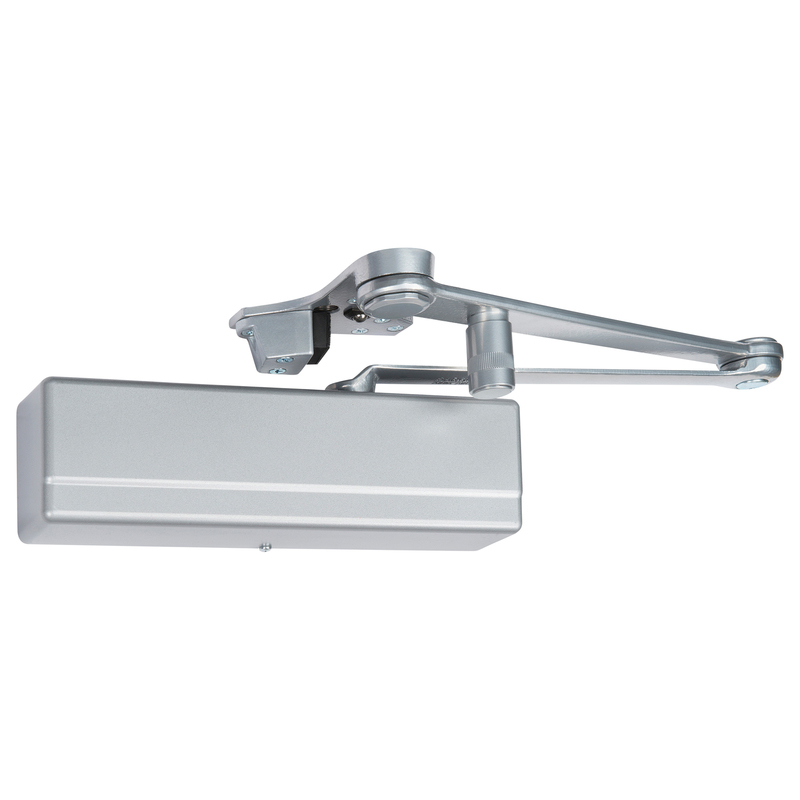

Sargent 1431-CPSH TB EN Grade 1 Surface-Mount Door Closer

Sargent 1431-CPSH TB EN Grade 1 Surface Mount Closer offers robust performance with its heavy-duty hold open parallel arm and compression stop design. Engineered for both interior and exterior doors, this surface door closer excels in versatility, making it suitable for a variety of applications. With a commitment to quality, the 1431 Series exceeds 15 million cycles and is certified as ANSI/BHMA A156.4 Grade 1, ensuring long-lasting durability. Additionally, it is UL 10C listed for positive pressure fire tests and is compatible with fire-rated doors, providing peace of mind for building owners and architects alike. The adjustable spring power accommodates a size range from 1 through 6, factory-set at size 3, while the user-friendly mounting options allow for standard, top jamb, parallel, and track installations. The high-impact non-corrosive plastic cover, along with optional metal covers, enhances the closer’s resilience. Designed to operate effectively in extreme temperatures, the all-weather fluid ensures reliable performance year-round. Backed by a 25-year limited warranty, the Sargent 1431-CPSH TB is a dependable choice for commercial applications, offering superior door control with adjustable hold open features and compression stop capabilities.

Grade 1 Surface Mount Closer

Surface Door Closer, Heavy Duty Hold Open Parallel Arm with Compression Stop, Thru Bolts, Sprayed Aluminum Enamel

The 1431 Series is a complete line of aluminum surface door closers for interior and exterior doors with flexibility to meet virtually every application. A full compliment of arms and mounting accessories, with front facing valves make installation and maintenance easy.

ADA compliant except Push Side Track application.

The 1431 Series of surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.

• Exceeds 15 Million cycles

• Certified ANSI/BHMA A156.4 Grade 1

• UL 10C listed for positive pressure fire test

• UL / cUL listed for use on fire rated doors

• 25 year limited warranty

• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations

• Self sticking templates supplied for most applications

• Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

• One door closer body for all applications. All 1431 are non-handed

• Meets ADA requirements in all applications, except Push Side Track application (except track)

• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional

• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment

• 1-1/2" diameter piston for superior door control

• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse

• Retrofits existing SARGE
