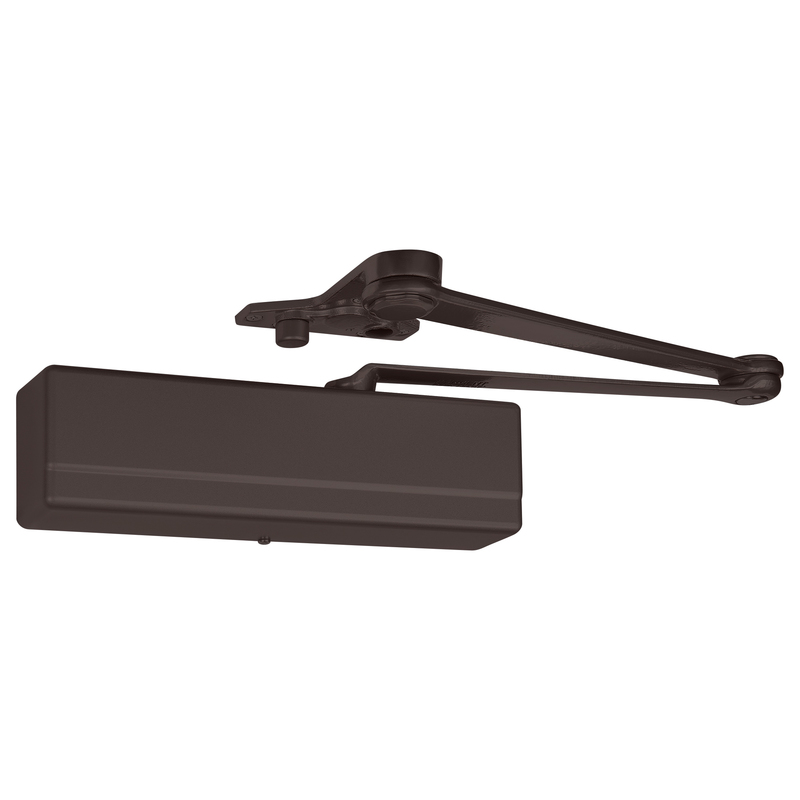

Sargent 1431-P9 TB EB Grade 1 Surface-Mount Door Closer

Sargent 1431-P9 TB EB Grade 1 Surface Mount Closer offers exceptional performance and reliability for both interior and exterior doors. This surface-mounted door closer features a standard parallel arm design, ensuring easy installation with through bolts and a sleek sprayed dark bronze enamel finish, making it an attractive addition to any building. Engineered to meet the demands of architects and building owners, the 1431 Series exceeds 15 million cycles, ensuring durability and longevity. It is certified ANSI/BHMA A156.4 Grade 1 and is UL 10C listed for positive pressure fire tests, with a fire rating of up to 3 hours, making it suitable for fire-rated doors. The versatile mounting options allow for standard, top jamb, parallel, and track installations, accommodating various applications with ease. With adjustable spring power, the closer accommodates sizes 1 through 6, factory adjusted to size 3. Its high-impact, non-corrosive plastic cover is standard, while metal covers are available as an option. The all-weather fluid ensures optimal operation in extreme temperatures without the need for readjustment. This door closer is designed to meet ADA requirements, except for push-side track applications, and comes with a generous 25-year limited warranty, providing peace of mind for commercial installations.

Grade 1 Surface Mount Closer

Surface Door Closer, Standard Parallel Arm, Thru Bolts, Sprayed Dark Bronze Enamel

The 1431 Series is a complete line of aluminum surface door closers for interior and exterior doors with flexibility to meet virtually every application. A full compliment of arms and mounting accessories, with front facing valves make installation and maintenance easy.

ADA compliant except Push Side Track application.

The 1431 Series of surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.

• Exceeds 15 Million cycles

• Certified ANSI/BHMA A156.4 Grade 1

• UL 10C listed for positive pressure fire test

• UL / cUL listed for use on fire rated doors

• 25 year limited warranty

• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations

• Self sticking templates supplied for most applications

• Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

• One door closer body for all applications. All 1431 are non-handed

• Meets ADA requirements in all applications, except Push Side Track application (except track)

• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional

• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment

• 1-1/2" diameter piston for superior door control

• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse

• Retrofits existing SARGE
