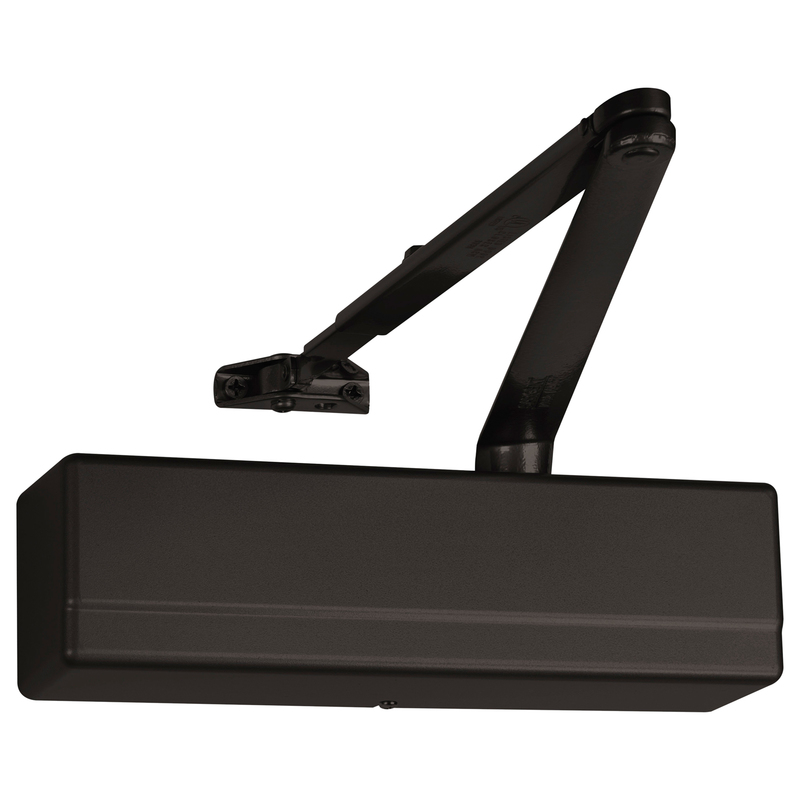

Sargent 1431-UO TB EB Grade 1 Surface-Mount Door Closer

Your Price: $433.22

Retail Price:$806.000

Your Savings:$372.78(46%)

Sargent 1431-UO TB EB: Durable Grade 1 surface door closer with adjustable power, universal arm, and dark bronze finish.

Part Number : SAR_1431UOTBEB

Availability: 36 In Stock

Quantity

Description

Sargent 1431-UO TB EB Grade 1 Surface-Mount Door Closer

Sargent 1431-UO TB EB Grade 1 Surface Mount Closer combines durability with exceptional performance, making it an ideal choice for both commercial and residential applications. This aluminum surface door closer features a universal standard arm and is finished in a sophisticated dark bronze enamel, ensuring it complements various architectural styles. Engineered for versatility, the 1431 Series supports multiple mounting options, including standard, top jamb, and parallel installations, allowing for easy adaptation to different door configurations. With a remarkable ability to exceed 15 million cycles, this closer has been certified to ANSI/BHMA A156.4 Grade 1 standards, ensuring reliability and long-lasting use. Additionally, it is UL 10C listed for positive pressure fire tests and suitable for use on fire-rated doors, providing peace of mind in safety compliance. The adjustable spring power accommodates size ranges from 1 through 6, pre-adjusted to size 3 for user convenience. Its high-impact, non-corrosive plastic cover, along with optional metal covers, adds to its robust design. Featuring self-sticking templates for easy installation and all-weather fluid for reliable operation in extreme temperatures, the Sargent 1431-UO TB EB is a dependable solution that meets ADA requirements in all applications, except push side track installations. With a 25-year limited warranty, it offers excellent value for your investment.

Grade 1 Surface Mount Closer

Surface Door Closer, Universal Standard Arm, Thru Bolts, Sprayed Dark Bronze Enamel

The 1431 Series is a complete line of aluminum surface door closers for interior and exterior doors with flexibility to meet virtually every application. A full compliment of arms and mounting accessories, with front facing valves make installation and maintenance easy.

ADA compliant except Push Side Track application.

The 1431 Series of surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.

• Exceeds 15 Million cycles

• Certified ANSI/BHMA A156.4 Grade 1

• UL 10C listed for positive pressure fire test

• UL / cUL listed for use on fire rated doors

• 25 year limited warranty

• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations

• Self sticking templates supplied for most applications

• Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

• One door closer body for all applications. All 1431 are non-handed

• Meets ADA requirements in all applications, except Push Side Track application (except track)

• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional

• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment

• 1-1/2" diameter piston for superior door control

• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse

• Retrofits existing SARGE

Attributes

Arm Type: Regular Arm

Back Check: Adjustable

Base Material: Varies

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Cover: Plastic

Delay: No

Finish: 695

Finish Family: Dark Bronze

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Grade: Grade 1

Handing: Non-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 25 Years

Mounting Group: Hydraulic

Mounting Location: Push or Pull Side

Mounting Style: Tri Mount

Pack Height: 4.25"

Pack Length: 15"

Pack Qty: 1

Pack Volume: 318.75 in³

Pack Width: 5"

Series: 1431 Surface Door Closers

Ship Weight: 9.8 lbs.

Subtype: Surface Closers

Through Bolts: Yes

Type: Surface

Unit of Measure: Each
