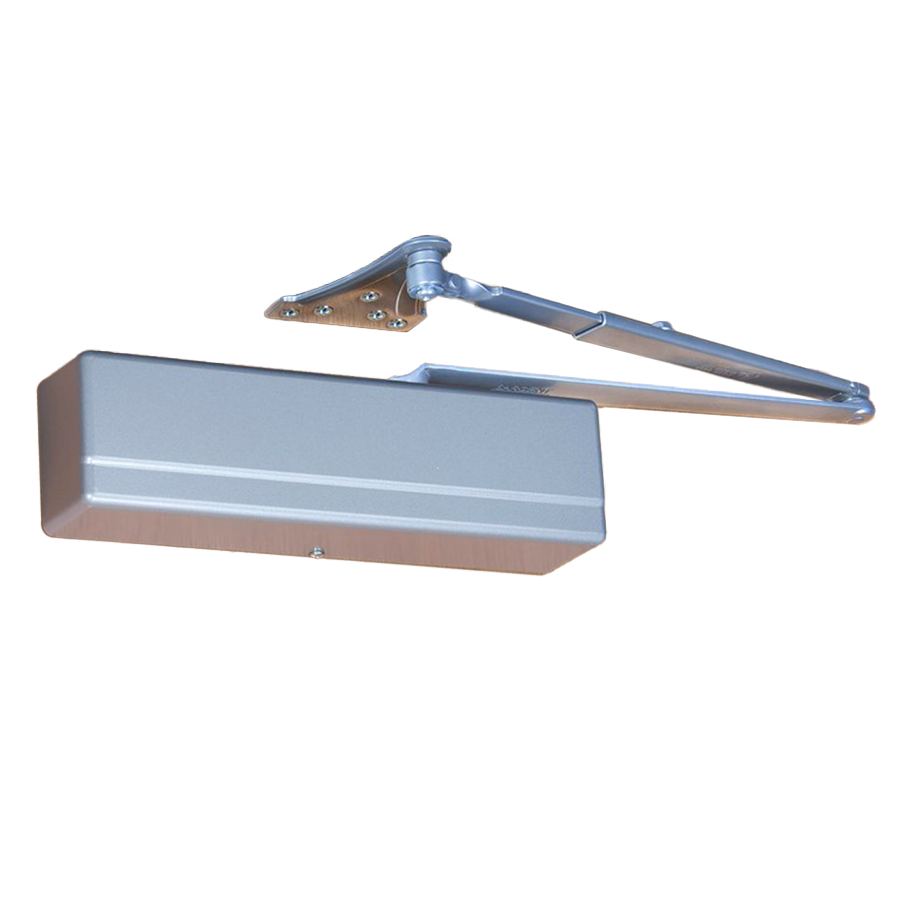

Sargent 1431UOEN Universal Arm Pack Powerglide Adjustable Door Closer Sprayed Aluminum Enamel Finish

Your Price: $512.000

Retail Price:$800.000

Your Savings:$288.000(36%)

Part Number : SAR_1431UOEN

Availability: 3 In Stock

Quantity

Description

Sargent 1431UOEN Universal Arm Pack Powerglide Adjustable Door Closer Sprayed Aluminum Enamel Finish

Sargent 1431UOEN Universal Arm Pack Powerglide Adjustable Door Closer Sprayed Aluminum Enamel Finish

Exceeds 15 Million cycles
Certified ANSI/BHMA A156.4 Grade 1
Conforms to UL10C and UBC for positive pressure fire test
UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors
25 year limited warranty
User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
Self sticking templates supplied for most applications
Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
One door closer body for all applications. All 1431 are non-handed
Meets ADA requirements in all applications, except Push Side Track application (except track)
High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional
All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
1-1/2" diameter piston for superior door control
Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse
Retrofits existing SARGENT 1230/1231 Series Closer installations
Exceeds 15 Million Cycles
Self Sticking Templates Supplied for Most Applications
Non Handed
All Weather Fluid Allows Closer to Operate Effectively in Extreme Temperatures Without Readjustment
1-1/2" Diameter Piston for Superior Door Control

Attributes

Alt Part No: 131028

Alternate Codes: 131028, 1431UOEN

Application: CM

Arm Function: Non-Hold Open

Arm Type: Universal Arm

Category: Door Closers, Surface Mount Closers, Surface Mount Misc. Parts

Clazz: SG

Closer Type: Mechanical, Surface

Color: Sprayed Aluminum Enamel

Country of Origin: Usa

Door Application: Surface Mount Closers

Finish: Sprayed Aluminum Enamel

Finish Color: Satin Aluminum

Grade: Grade 1

Handing: Non-Handed

Height: 3.740000000

Item Class Description: Universal Arm Pack Powerglide Adjustable Door Closer

Item Type Keyword: Closer

Length: 12.600000000

Maximum Opening: 180°

Mounting: Universal Arm

Number Of Inners: 1

Sales Unit: EA

Series: 1400 Series

Spring Tension: Adjustable 1 - 6

Subtype: Surface Mount

Supplier: Sargent

Type: Door Closers and Accessories

Weight: 7.180000000000

Width: 4.130000000
