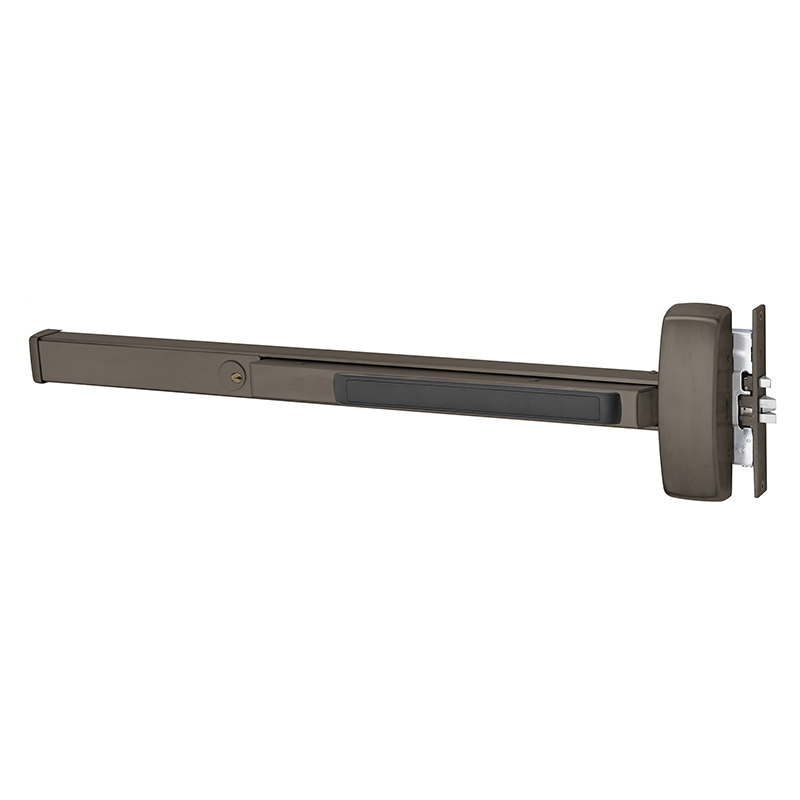

Sargent 16-8904F LHR 10B Mortise Exit Device, NL Function

Sargent 16-8904F LHR 10B Mortise Exit Device, NL Function is a robust solution designed for high-security environments. With its Grade 1 Mortise Exit Bar featuring a wide stile pushpad, this 36-inch device ensures reliable operation and safety. The night latch function, combined with cylinder dogging, provides easy access control while enhancing security, making it an ideal choice for commercial applications. Constructed to exceed ANSI/BHMA Grade 1 requirements, the Sargent 8900 Series delivers exceptional durability and strength. Its maintenance-free design, with minimal moving parts, guarantees long-lasting performance. The device is suitable for standard width stile applications on both wood and metal doors, accommodating thicknesses from 1-3/4" to 2-1/4". The dark oxidized satin bronze oil-rubbed finish not only adds a touch of elegance but also enhances the device's resistance to wear and tear. This exit device is designed for left-hand reverse handing and is equipped with included cylinders, ensuring a straightforward installation process. For added versatility, Sargent exit devices can be customized for unique applications, including delayed egress and alarmed exit options. Trust the Sargent 16-8904F for reliable security and ease of use in your facility.

Mortise Exit Dev, NL Function

Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 36" Device, Night Latch Function, Cylinder Dogging, Cylinder Included, Dark Oxidized Satin Bronze Oil Rubbed Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8900 Series is for single door applications

8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door;Over 1-3/4" specify thickness and order as a 31- option.  4-1/2" (114mm) minimum stile
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
