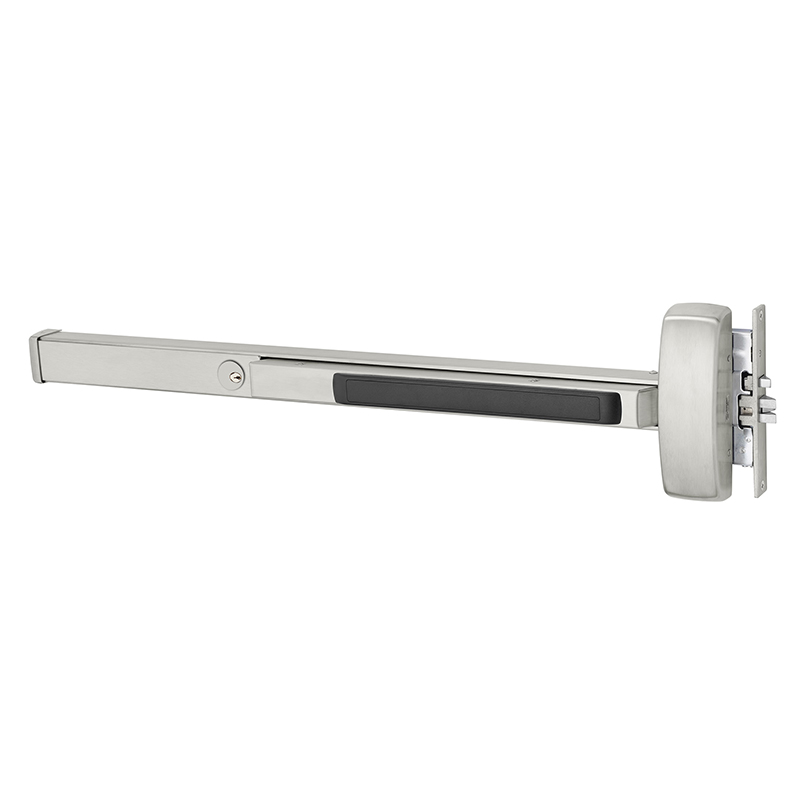

Sargent 16-8904F RHR 32D Mortise Exit Device, NL Function

Sargent 16-8904F RHR 32D Mortise Exit Device, NL Function combines security and functionality in a Grade 1 Mortise Exit Bar designed for commercial applications. This robust 36-inch exit device features a wide stile pushpad for ease of use, ensuring a reliable exit solution in high-traffic environments. The night latch function provides added security, while the cylinder dogging mechanism, which comes included, allows for convenient operation. Constructed to withstand the rigors of daily use, the Sargent 8900 Series exit devices exceed ANSI/BHMA Grade 1 standards for cycle and strength. Designed for standard width stile applications on both wood and metal doors, this model accommodates doors with a thickness of 1-3/4" to 2-1/4" and widths ranging from 33" to 36". With its satin stainless steel finish (630/US32D), the 16-8904F not only offers durability but also an aesthetic appeal that complements any commercial setting. The device's modular construction means fewer moving parts, resulting in a maintenance-free solution that enhances overall building security. Proudly made in the USA, this exit device is a reliable choice for ensuring safe egress while maintaining stringent security standards.

Mortise Exit Dev, NL Function

Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 36" Device, Night Latch Function, Cylinder Dogging, Cylinder Included, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8900 Series is for single door applications

8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door;Over 1-3/4" specify thickness and order as a 31- option.  4-1/2" (114mm) minimum stile
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 80 Series Exit Device Environmental Product Declaration
• 816 Cylinder Dogging Kit Parts List
• 8300 Series Narrow Mortise Exit Devices Cut Sheet
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• AL- Alarmed Exit Device Installation Instructions
• Anti Vandal Pull Trim Instructions - 8800, 8900, PE80
• Basic Fundamentals - Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Windstorm Solutions - Exit Devices
