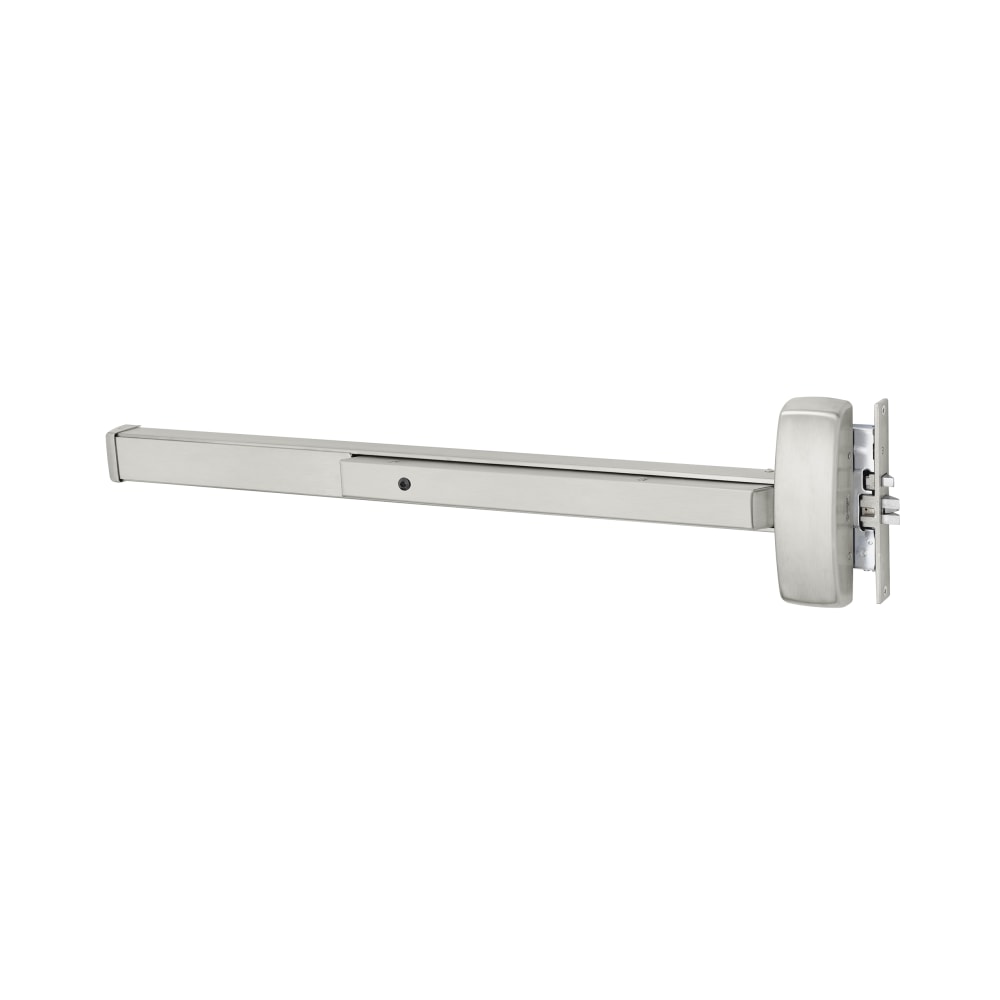

Sargent 19-8906G ETL RHR 32D Storeroom Mortise Exit Device

Sargent 19-8906G ETL RHR 32D Mortise Exit Device, Storeroom offers a robust security solution for commercial environments, designed to meet the demands of high-traffic areas. As a Grade 1 Mortise Exit Bar, it features a wide stile pushpad and a storeroom function, ensuring secure access control while allowing for easy egress. This 48" device is crafted from satin stainless steel, providing both durability and a sleek aesthetic, ideal for modern facilities. The 8900 Series is specifically tailored for single door applications, accommodating wood or metal doors with a thickness ranging from 1-3/4" to 2-1/4". It includes a concealed single point guarded latching mechanism, enhancing security without compromising functionality. The right-hand reverse handing ensures compatibility with various door configurations. Equipped with hex key dogging, this exit device is maintenance-free, thanks to its modular construction and minimal moving parts. Compliance with ANSI/BHMA standards and ADA accessibility guidelines guarantees reliability and ease of use. Available options for unique applications, including delayed egress and electric latch retraction, make the Sargent 19-8906G a versatile choice for any facility's security needs. With a limited five-year warranty, you can trust in its long-lasting performance.

Mortise Exit Device, Storeroom

Grade 1 Mortise Exit Bar, Wide Stile Pushpad, 48" Device, Storeroom Function, L Lever with Escutcheon, Hex Key Dogging, Less Lexan Push Pad Touchbar, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8900 Series is for single door applications

8900 Mortise Lock Exit Device has concealed single point guarded latching for additional security and is designed for standard width stile applications on wood and metal doors.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door;Over 1-3/4" specify thickness and order as a 31- option.  4-1/2" (114mm) minimum stile
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 80 Series Exit Device Environmental Product Declaration
• 816 Cylinder Dogging Kit Parts List
• 8300 Series Narrow Mortise Exit Devices Cut Sheet
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• AL- Alarmed Exit Device Installation Instructions
• Anti Vandal Pull Trim Instructions - 8800, 8900, PE80
• Basic Fundamentals - Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Windstorm Solutions - Exit Devices
