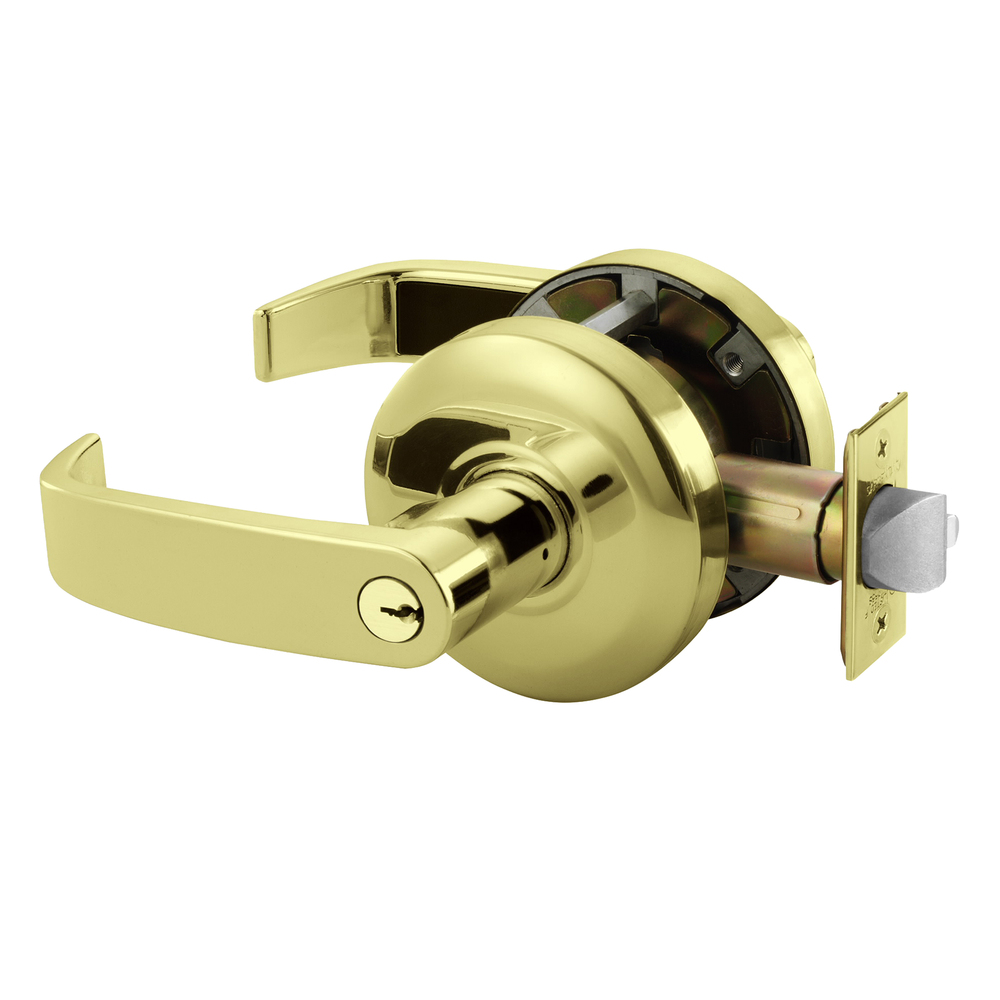

Sargent 28-65G04 KL 03 Grade 2 Storeroom Lock offers a robust solution for security in storerooms and closets, ensuring peace of mind with its reliable design. This Grade 2 cylindrical lock is constructed to exceed ANSI A156.2 Series 4000 standards, making it a dependable choice for commercial applications. The lock features a stylish L lever and a conventional cylinder, finished in bright brass for an elegant touch that complements any door. Designed for doors ranging from 1-3/8" to 1-3/4" thick, the Sargent 28-65G04 is non-handed, providing versatility for various installations. Its steel zinc dichromate cylindrical housing and wrought brass front ensure durability, while the 1/2" throw latch delivers solid performance. The lock comes with two nickel silver keys and a 6-pin brass cylinder, enhancing security without compromising convenience. Additional specifications include a standard 2-3/4" backset, a 600 curved lip strike, and windstorm certification, making this lock suitable for various environments. With a limited 10-year warranty and fire rating of 3 hours, the Sargent 28-65G04 is a reliable choice for professionals seeking quality and security in door hardware.
Grade 2 Storeroom/Closet Cylindrical Lock, L Lever, Conventional Cylinder, Bright Brass Finish, Non-handed
The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.
Windstorm certified and has several function options.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Application: Medium Duty Cylindrical
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/8" to 1-3/4"
Dust Box: None
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 04-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Of Keys: 2
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-3/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 6500-Line Bored Lever Locks
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 103121
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
