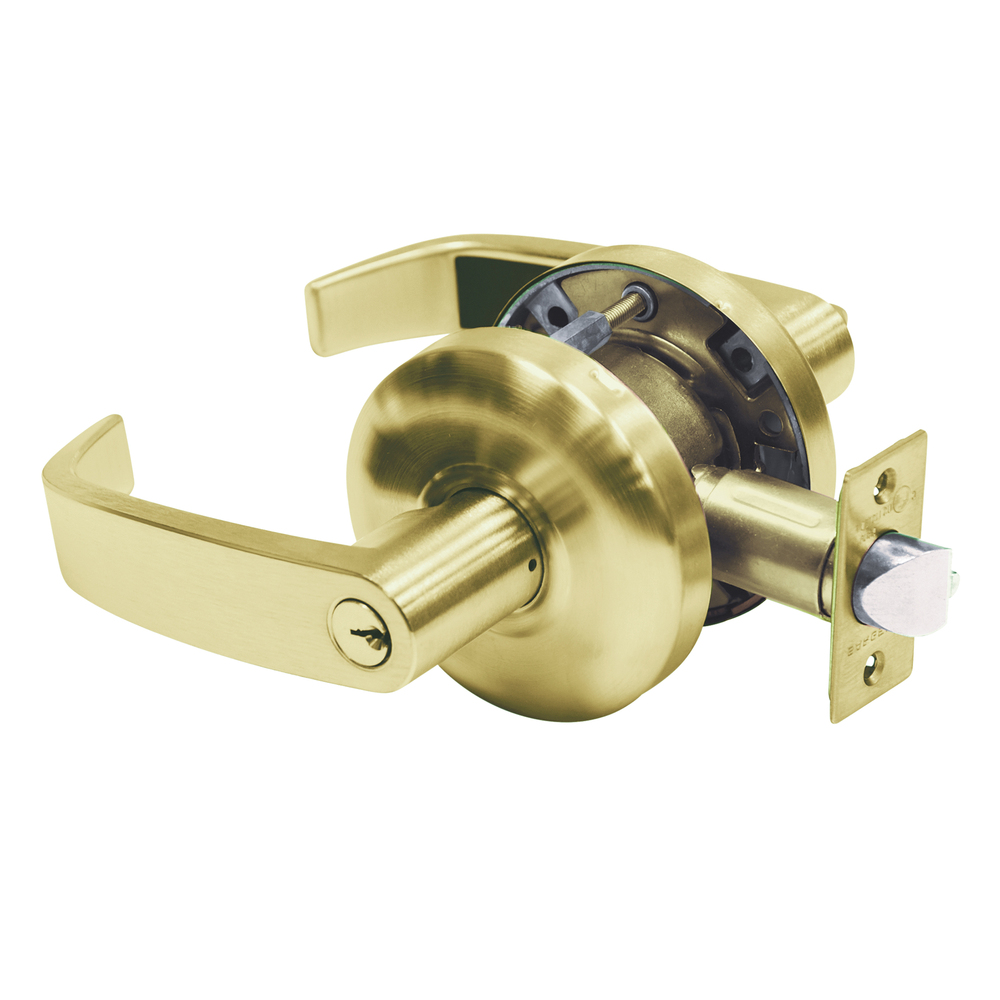

Sargent 28-65G04 KL 04 Grade 2 Storeroom Lock offers robust security and reliability for commercial applications. This Grade 2 storeroom/closet cylindrical lock features an L Lever design and a conventional cylinder, making it ideal for medium-duty use. With its satin brass finish, it not only provides functionality but also enhances the aesthetic of your doors. Certified for windstorm resistance, this lock is engineered to exceed ANSI A156.2 Series 4000 standards, ensuring durability and performance in various environments. It accommodates doors ranging from 1-3/8" to 1-3/4" in thickness and features a standard 2-3/4" backset, with an optional 2-3/8" available. The cylindrical housing is crafted from steel with a zinc dichromate finish, while the front is made of wrought brass and stainless steel for added strength. The brass latch boasts a 1/2" throw, and it comes with two nickel silver keys. The universal handing makes installation straightforward, and the lock is designed to comply with ANSI A115.2 (161) modified door prep. Sargent stands behind its products with a 10-year warranty, ensuring that your investment in security is protected. This lock combines style, security, and reliability, making it a perfect choice for storerooms or closets.
Grade 2 Storeroom/Closet Cylindrical Lock, L Lever, Conventional Cylinder, Satin Brass Finish, Non-handed
The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.
Windstorm certified and has several function options.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Application: Medium Duty Cylindrical
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/8" to 1-3/4"
Dust Box: None
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 04-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Of Keys: 2
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-3/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 6500-Line Bored Lever Locks
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 103121
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
