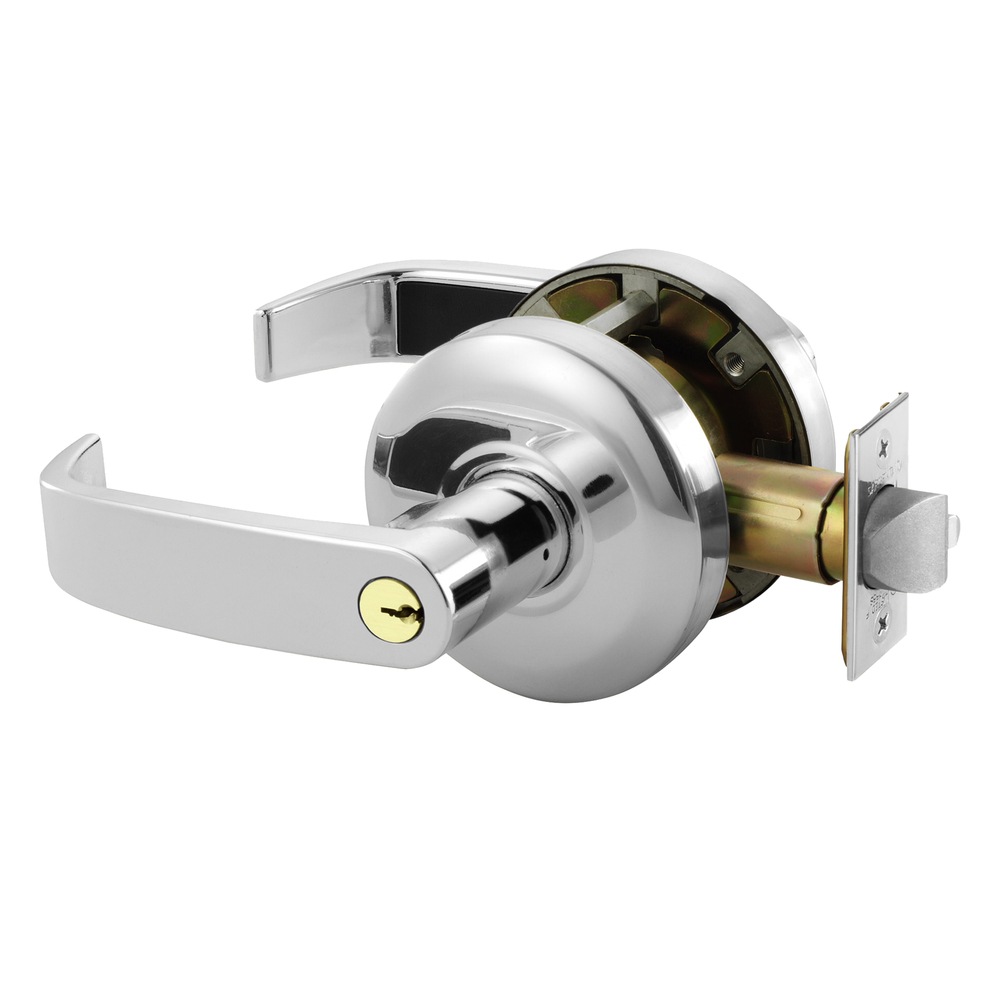

Sargent 28-65G04 KL 26 Grade 2 Storeroom Lock offers a robust and reliable solution for medium-duty applications. Designed to exceed ANSI A156.2 Series 4000 Grade 2 standards, this cylindrical lock features a durable L lever and is finished in bright chrome, ensuring both aesthetics and longevity. The lock is windstorm certified and versatile with non-handed functionality, making it suitable for various door types ranging from 1-3/8" to 1-3/4" thick. This storeroom lock is equipped with a conventional cylinder and includes a 6-pin brass cylinder with an LA keyway, providing enhanced security. The 1/2" throw latch is crafted from brass, ensuring a secure fit. Its cylindrical housing features a steel zinc dichromate finish, which enhances durability in commercial environments. Installation is straightforward, adhering to ANSI A115.2 (161) modified door prep. With a 2-3/4" standard backset and options for various strike types, it accommodates numerous door configurations. The lock comes with two nickel silver keys and is backed by a 10-year limited warranty, ensuring peace of mind. Ideal for storerooms or closets, the Sargent 28-65G04 KL 26 combines reliability and style for any commercial setting.
Grade 2 Storeroom/Closet Cylindrical Lock, L Lever, Conventional Cylinder, Bright Chrome Finish, Non-handed
The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.
Windstorm certified and has several function options.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Application: Medium Duty Cylindrical
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/8" to 1-3/4"
Dust Box: None
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 04-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Of Keys: 2
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-3/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 6500-Line Bored Lever Locks
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 103121
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
