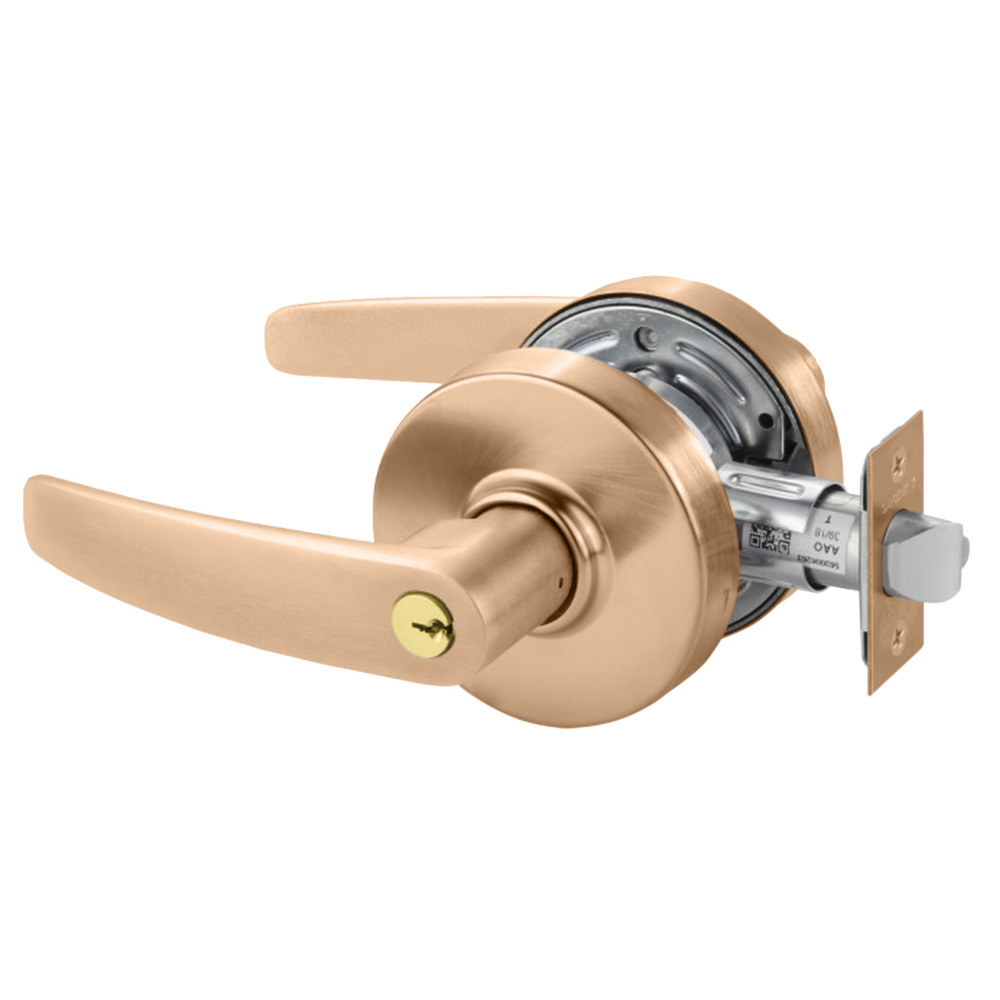

Sargent 28-7G05 LB 10 Grade 2 Cylindrical Lever is a robust, key-in-lever lock designed specifically for standard duty commercial applications. Ideal for a variety of settings, including public buildings, medical offices, hotels, and government facilities, this lock exceeds ANSI/BHMA A156.2 standards for cycling and durability, ensuring long-lasting performance. Crafted with a satin bronze finish, the Sargent cylindrical lock features a B Lever design that provides a solid feel and precise action. Its non-handed design allows for easy installation on doors ranging from 1-3/8" to 1-3/4" thick, with a standard backset of 2-3/4". Constructed with a steel cylindrical housing and available in various finishes, this lock not only meets aesthetic needs but also offers reliable security. Equipped with a 6-pin brass cylinder, the lock comes with two nickel silver keys and can be master keyed for enhanced access control. The 1/2" latch throw and ANSI curved lip strike ensure smooth operation and secure closure. With a limited 5-year warranty, the Sargent 28-7G05 LB is an excellent choice for professionals seeking a dependable locking solution for commercial interiors and exteriors.
Grade 2 Entrance/Office Cylindrical Lock, B Lever, Conventional Cylinder, Satin Bronze Finish, Non-handed
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Baa Qualified: Yes
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: None
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Entrance or Office
Function Family: Entrance/Office
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8 x 2-1/4"
Manufacturer Function: Entrance/Office
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 7-Line Bored Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 193762
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
