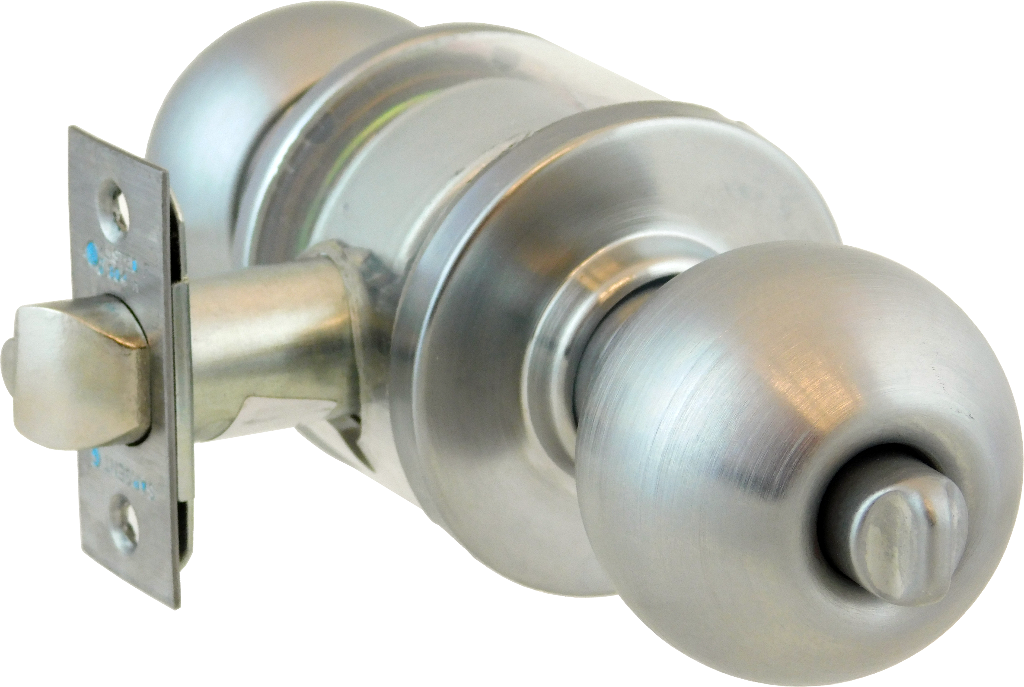

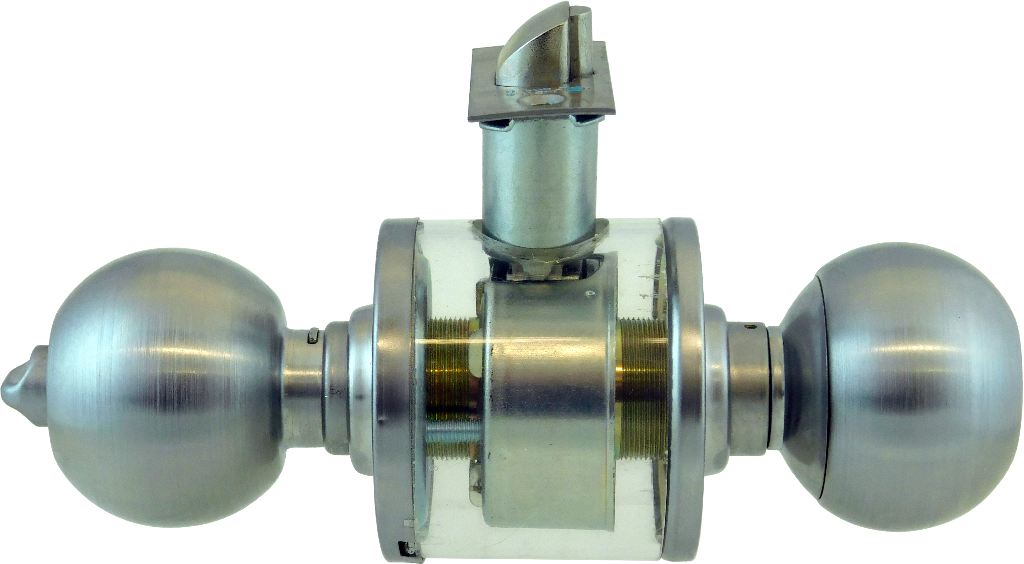

Sargent 28-LC-6G05-OB-26D 2-3/4 BS 6-Line Office Knob Lock, B Knob, 2-3/4in Backset, Satin Chrome, Less Cylinder

Sargent 28-LC-6G05-OB-26D 2-3/4 BS 6-Line Office Knob Lock offers a reliable security solution that combines durability with a range of customizable features. Designed as a standard duty, ANSI/BHMA grade 2 knob lock, it excels in both functionality and style, making it suitable for various commercial applications. This lock is easy to install with just two lockbody screws, streamlining maintenance and setup. The Sargent 28-LC-6G05 comes equipped with a deadlocking latch, ensuring enhanced security for office environments. The latch can be retracted by either knob unless the outside knob is locked using the turn button, providing flexibility for users. The lock is compatible with a variety of latches and strike options, allowing for tailored configurations to meet specific needs. It's available with an optional MicroShield antimicrobial coating, promoting hygiene in shared spaces. With heavy wrought brass or bronze knobs and roses, this lock not only performs well but also maintains an elegant appearance that complements other Sargent products. Certified under ANSI A156.2 series 4000, the Sargent 28-LC-6G05-OB-26D is engineered for reliability and long-lasting security, making it an ideal choice for professionals seeking a versatile and secure locking solution.

6-Line Office Knob Lock, B Knob, 2-3/4in Backset, 808 ANSI Strike, Less Cylinder, 626/US26D Satin Chrome

The 6 line is a standard duty, ANSI/BHMA grade 2 knob lock that incorporates a broad spectrum of functions, designs and finishes for a truly customized feel. Installs with just two lockbody screws for easy installation and maintenance.

Features:

• Multiple latches and strike options available
• Large selection of functions and trim combinations to choose from
• Available with optional MicroShield antimicrobial coating
• Complements and blends with trim designs of other Sargent locks for unified appearance
• Installs easily with just two lockbody screws
• Multiple combinations of functions, trim, latches and other options make this lock extremely versatile and ideal as a stock item

Specifications:

• Certified Compliance: ANSI A156.2 series 4000 - Grade 2.
• Backsets: 2-3/8"(60mm) x 1"(25mm) Standard; 2-3/4"(70mm) x 1"(25mm) 17- Option; 2-3/4"(70mm) x 1-1/8"(29mm) 24- Option; 2-3/4"(95mm) x 1-1/8"(29mm) 23- Option.
• Bored Housing: Steel, zinc dichromate finish.
• Front: Wrought brass or bronze 2-1/4"(57mm) x 1"(25mm) standard - other options available.
• Strike: Wrought brass, bronze or stainless steel. 800 curved lip strike standard; 808 curved lip ANSI strike (28- Option); 505 Radius/full lip strike (14- Option); Wrought box strike available (WBS Option).
• Hand: Non-cylinder locks - non-handed; cylinder type locks - reversible in field.
• Knob: Heavy wrought brass or bronze.
• Roses: Heavy wrought brass or bronze.
• Latch: Brass x 1/2"(13mm) throw.
• Master keying: Can be master keyed or grand master keyed construction key systems available.
• Door Prep.: 160 Standard door prep, specify 24- for 161 door prep.
• Minimum Stile: 4"(102mm) with B and O roses; 4-1/2&$34(114mm) with E and L roses.

Single Cylinder Functions:

• 6G04 - Storeroom or Closet:
• ANSI F86
• Deadlocking latch
• Latch retracted by knob inside or key outside
• Outside knob rigid at all times
• 6G05 - Entrance or Office:
• ANSI F81
• Deadlocking latch
• Latch retracted by either knob unless outside knob is locked by turn button in inside knob
• Turn button must be released manually
• Key retracts latch when outside knob is locked
• 6G37 - Classroom:
• ANSI F84
• Deadlocking latch
• Latch retracted by either knob unless outside knob is locked by key
• Key in outside knob locks or unlocks outside knob

Non-Cylinder Functions:

• 6U15 - Passage:
• ANSI F75
• Latch retracted by either knob
• 6U65 - Privacy/Bathroom:
• ANSI F76A
• Latch retracted by either knob unless outside knob is locked by push button in inside knob
• Turning inside knob or closing door releases button
• Emergency key or flat blade screwdriver in the emergency button releases the inside button and unlocks the outside knob
• Emergency key supplied only when ordered separately (14-0300)
• 6U93 - Single Knob:
• For wood or custom hollow metal doors
• Knob and rose attached by surface applied screws (hidden)
• Requires special door preparation

Finishes:

• 03/605 - Polished brass, clear coated
• 10BE/613E - Dark Oxidized Satin Bronze – equivalent
• 26D/626 - Satin chrome
