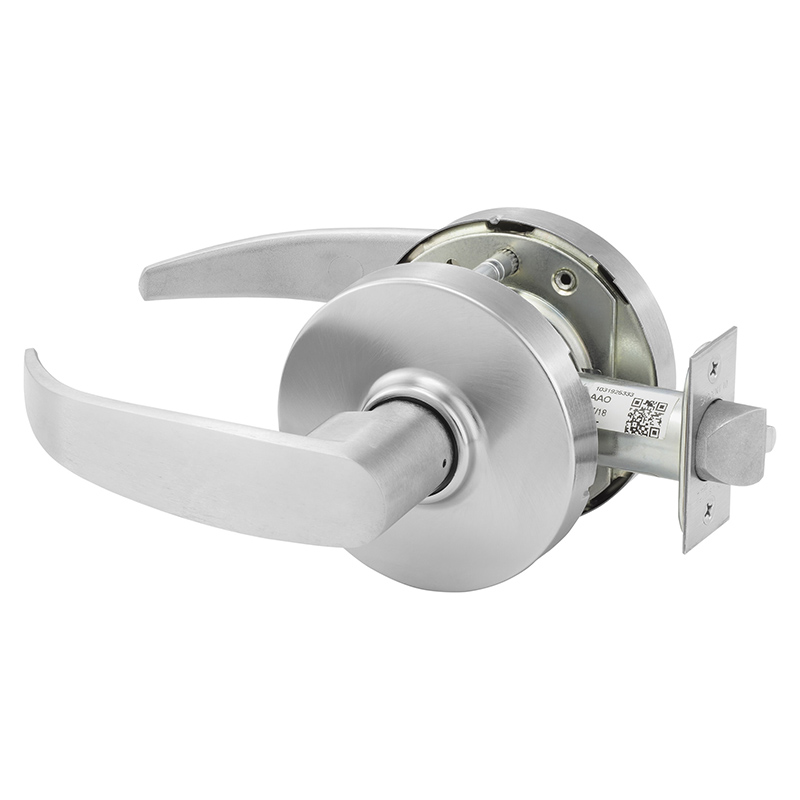

Sargent 2810G153LP26D Exit Communicating Lever Lock Grade 1 combines robust security with a sleek design, making it an ideal choice for various commercial environments. This mechanical lockset features a P Lever and L Rose, finished in a sophisticated satin chrome that complements any décor while offering exceptional durability. Designed for doors ranging from 1-3/4" to 2" in thickness, this lockset is adaptable with through-bolt positioning, allowing for quick installation in one minute or less. It exceeds ANSI/BHMA A156 2 Grade 1 requirements, ensuring reliability and peace of mind in high-traffic areas. The solid feel and precise lever action enhance user experience, while the reversible handing allows for easy adjustments to fit different door configurations. The Sargent 2810G153LP26D also includes an ASA strike and boasts a 2-3/4" backset, making it versatile for various door preparations. With a UL and cUL 3-hour fire rating, it contributes to the overall safety of your building. Backed by a 7-year limited warranty, this lockset is a trusted solution for securing educational, industrial, and healthcare facilities. Upgrade your security with Sargent's exceptional craftsmanship and performance.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Cylinders Present: No
Design: P Lever and L Rose
Dimension: 5-1/2" Lever with 2-1/2" Projection, and 3-1/2" Rose
Discontinued: true
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4 In. - 2 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 15-3-Exit or Communicating
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Keying: Keyed Different
Keys: 2
Keyway: LA
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 10-3192
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: P - Lever
Lever Knob Design Name: P
Limited Warranty: 7 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: 15-3
Manufacturer Function Description: Exit or Communicating
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Num Pins: 6
Order_ Qty: 1
Projection: 2-1/2"
Rose Escutcheon: L Rose
Rose Escutcheon Design: L - Rose
Rose Escutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 10 Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: Non-Keyed
Structure Function: 15-3-Exit or Communicating Lock
Structure Handing: Not Handed
Structure Inside Finish: 626/US26D
Structure Inside Rose: L - L Rose
Structure Inside Trim: P - P Lever
Structure Latch: Dead Latch (Guarded)
Structure Latch Number: Oct-22
Structure Outside Finish: 626/US26D
Structure Outside Rose: L - L Rose
Structure Outside Trim: P - P Lever
Structure Series: 10-Line
Structure Strike Number: 808
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
