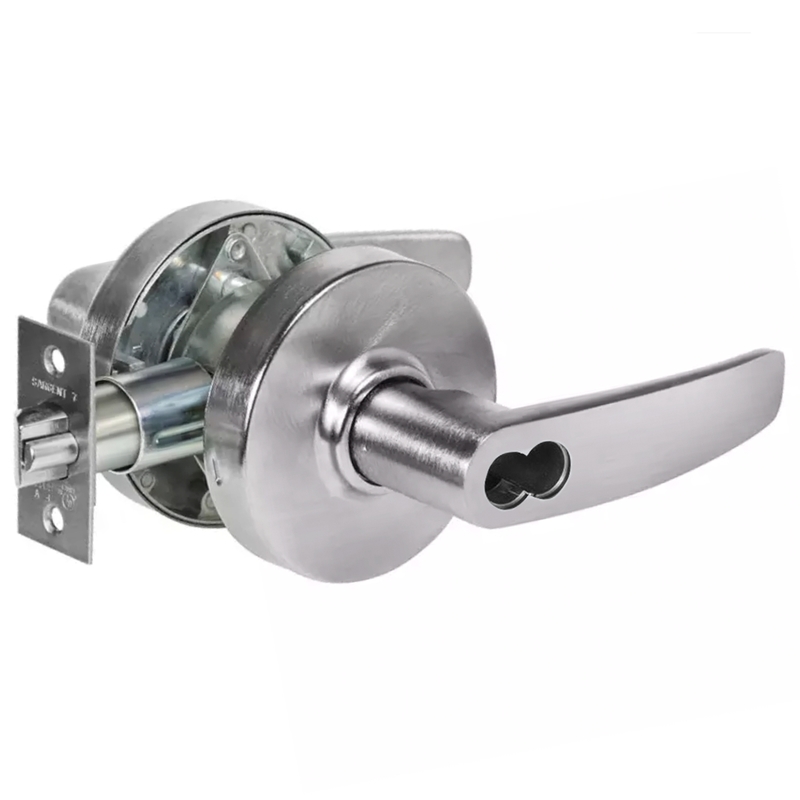

Sargent 2860-7G04 LB 26D Grade 2 Cylindrical Lever is an exceptional choice for standard duty commercial applications, ideal for medical offices, hotels, government facilities, and public buildings. This Grade 2 storeroom/closet cylindrical lock features a durable LFIC disposable construction core and a sleek satin chrome finish, ensuring both security and aesthetic appeal. Designed for versatility, the Sargent 2860 is non-handed and accommodates doors up to 1-3/4 inches thick, making it suitable for various installation needs. The lock exceeds ANSI/BHMA A156.2 standards, demonstrating outstanding cycling and durability. It boasts a solid steel cylindrical housing with a zinc dichromate finish, providing long-lasting protection against wear. The B Lever design offers a comfortable and precise action, enhancing ease of use in high-traffic environments. Included are two nickel silver keys, with a 6-pin brass cylinder that can be master keyed if necessary. Additionally, the lock is equipped with a 1/2-inch throw latch and a standard curved lip strike for added security. Whether you are upgrading existing hardware or outfitting new construction, the Sargent 2860-7G04 LB 26D ensures reliability, exceptional performance, and peace of mind for all your locking needs.
Grade 2 Storeroom/Closet Cylindrical Lock, B Lever, LFIC Disposable Construction Core, Satin Chrome Finish, Non-handed
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: LFIC Disposable Construction Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: None
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 04-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8 x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 7-Line Bored Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 193762
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
