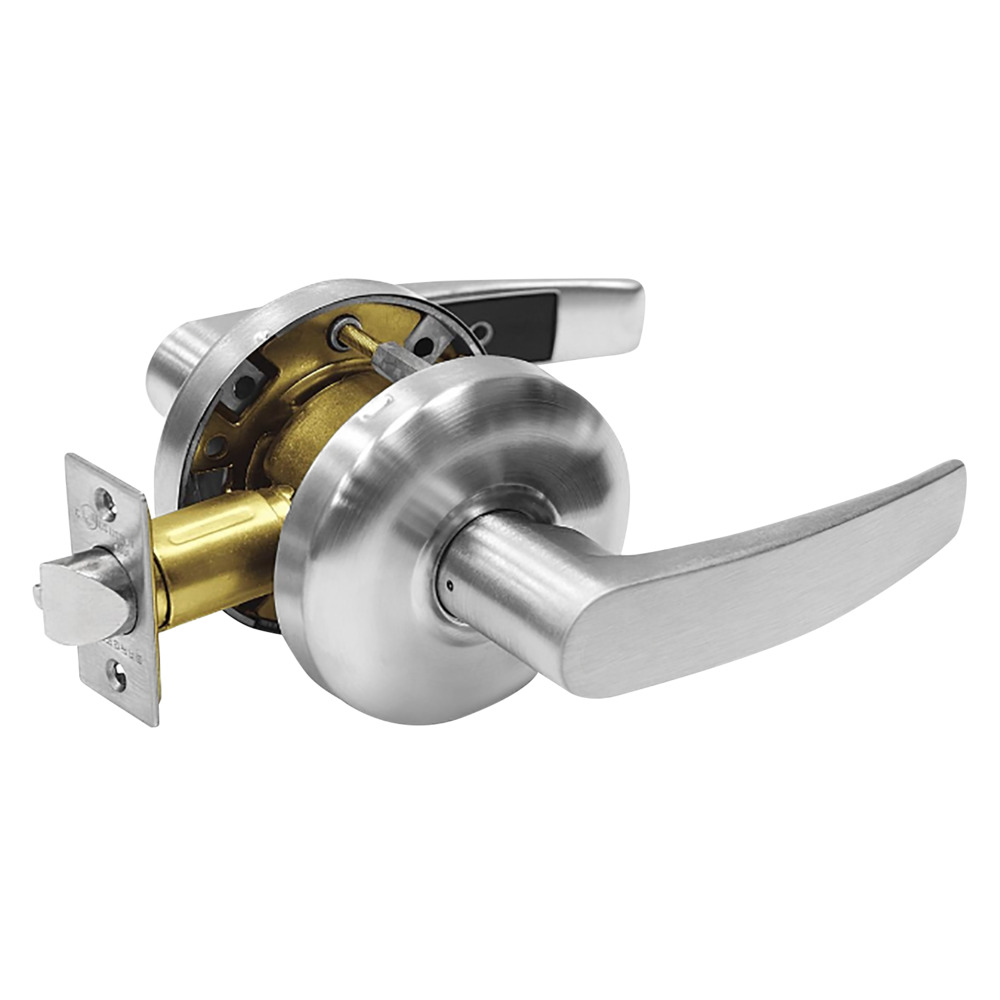

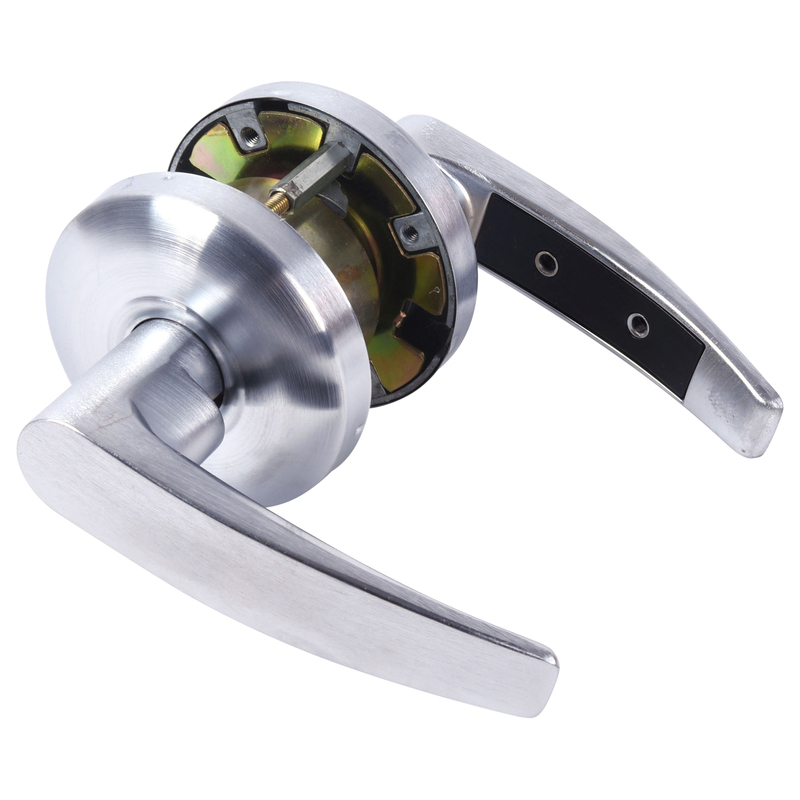

Sargent 2865U15KB26D Passage Cylindrical Lock Grade 2 with B Lever and K Rose and ASA Strike Satin Chrome Finish
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Application: Medium Duty Cylindrical
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Clazz: SG
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: L Lever and K Rose
Door Thickness: 1-3/8" - 1-3/4"
Dust Box: None
Finish: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 15-Passage
Function Family: Passage
Grade: Grade 2
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Item Class Description: Passage Cylindrical Lock Grade 2 with B Lever and K Rose and ASA Strike
Item Type Keyword: Cylindrical
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Number: 05-2183
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: B - Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Passage
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Number Of Inners: 1
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13"
Pack Width 2: 15"
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-3/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: K - Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Combination
Series: 6500 Series
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 103486
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
