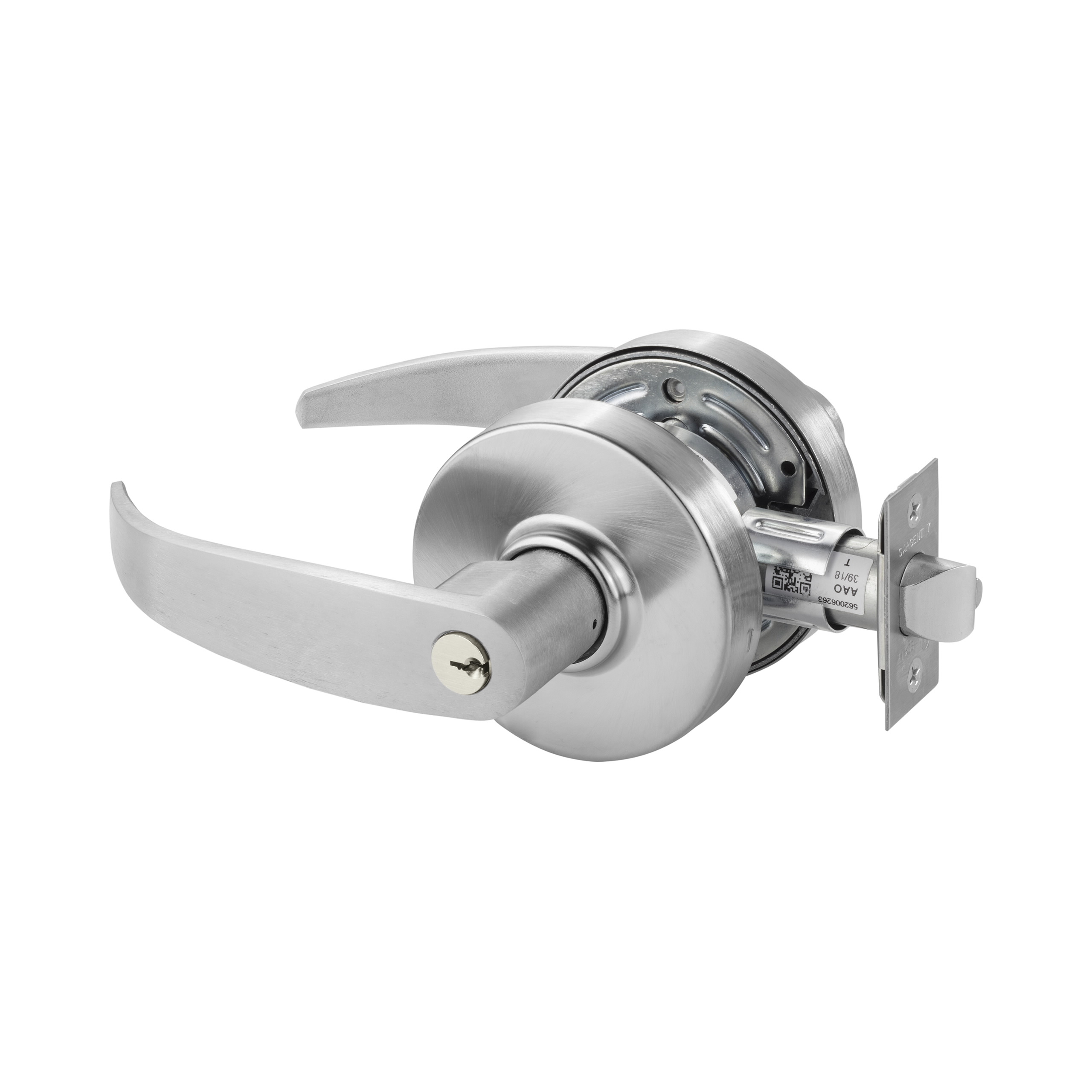

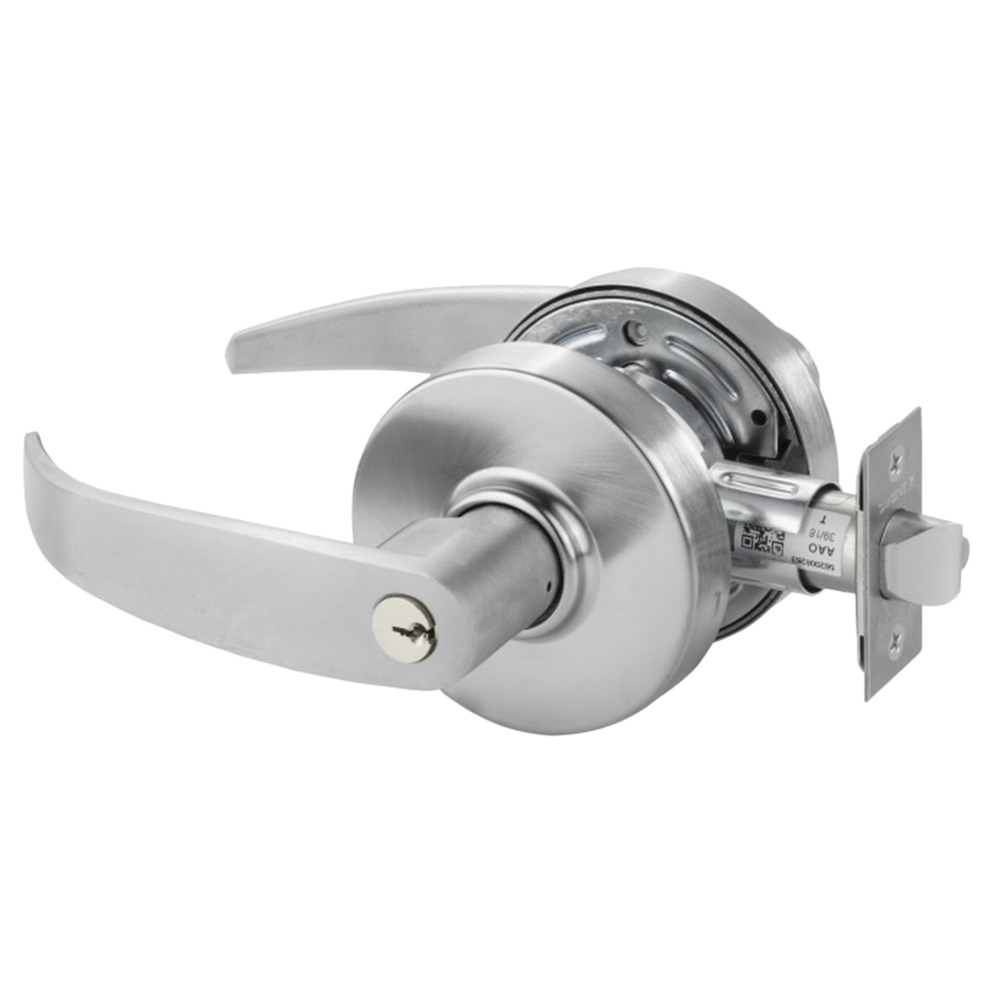

Sargent 287G37LP26D Classroom Cylindrical Lock Grade 2 with P Lever and L Rose and ASA Strike and LA Keyway Satin Chrome Finish
Attributes
Alternate Codes: 28-7G37LP26D, 287G37LP26D
Ansi: F84
Ansi Function: F84 - Classroom
Ansi Function Description: Classroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: P Lever and L Rose
Door Application: Cylindrical Levers
Door Thickness: 1-3/8" - 1-3/4"
Dust Box: None
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: 3 Hours {A}
Function: 37-Classroom
Function Family: Classroom
Grade: Grade 2
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: LA
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 7/8"
Latch Number: 07-2430
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: P - Lever
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: P
Leverknob Design: P Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Classroom
Manufacturer Function Description: Operated by deadlocking latch, latch by either lever unless outside lever is locked by key, key in outside lever locks or unlocks outside lever or tracts latch, inside lever always operative.
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: L - Rose
Rose Escutcheon Dimensions: 3-3/8"
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Combination
Series: 7 Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 193762
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4"
Structure Function: G37
Structure Latch Number: 193762
Structure Outside Finish: US26D
Structure Outside Trim: P
Structure Series: 7Line
Structure Strike Number: 808
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
