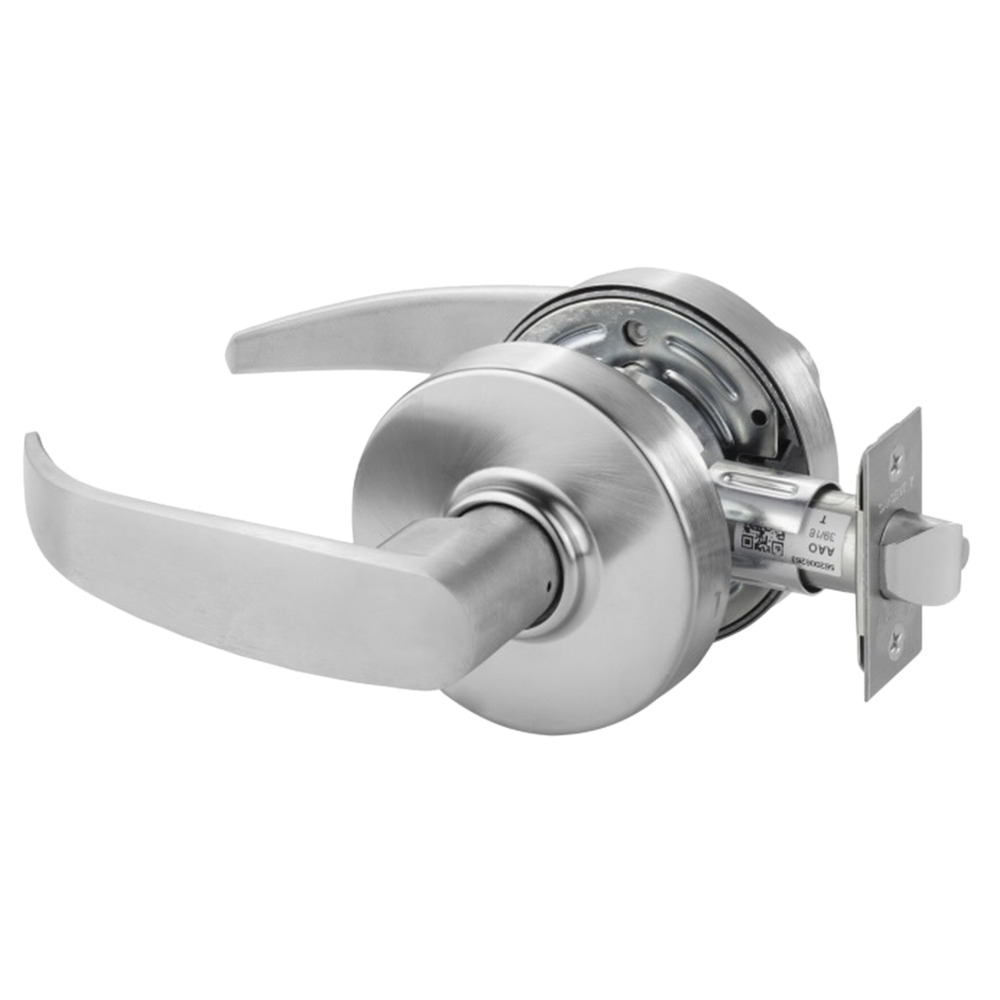

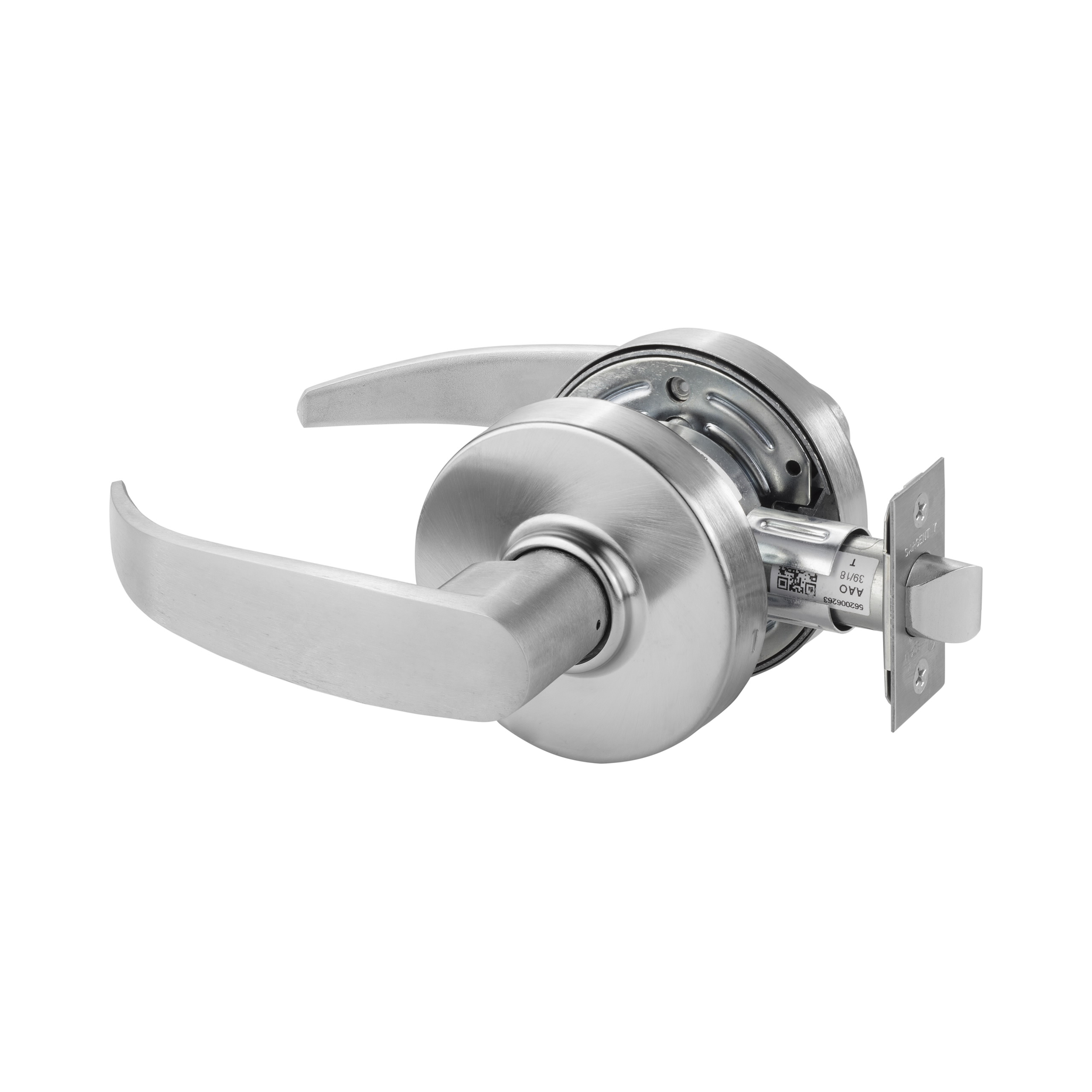

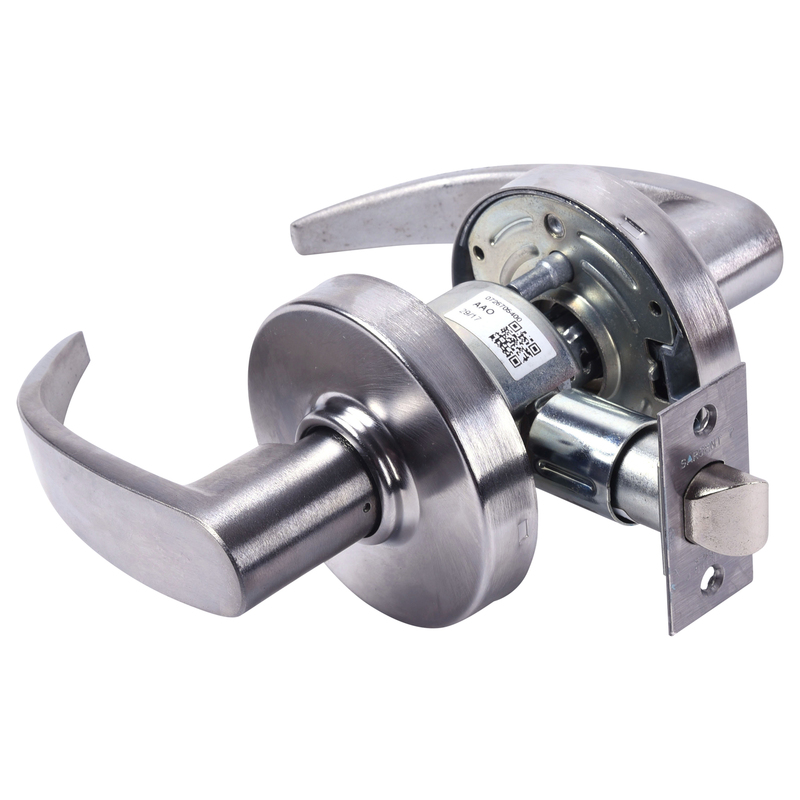

Sargent 287U15LP26D Passage Cylindrical Lock Grade 2 with P Lever and L Rose and ASA Strike Satin Chrome Finish
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 28-7U15LP26D, 287U15LP26D
Ansi: F75
Ansi Function: F75 - Passage
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: P Lever and L Rose
Door Application: Cylindrical Levers
Door Thickness: 1-3/8" - 1-3/4"
Dust Box: None
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: 3 Hours {A}
Function: 15-Passage
Function Family: Passage
Grade: Grade 2
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 7/8"
Latch Number: 07-2428
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: P - Lever
Lever Knob Design Name: P
Leverknob Design: P Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Passage
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: L - Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Combination
Series: 7 Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 194493
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
